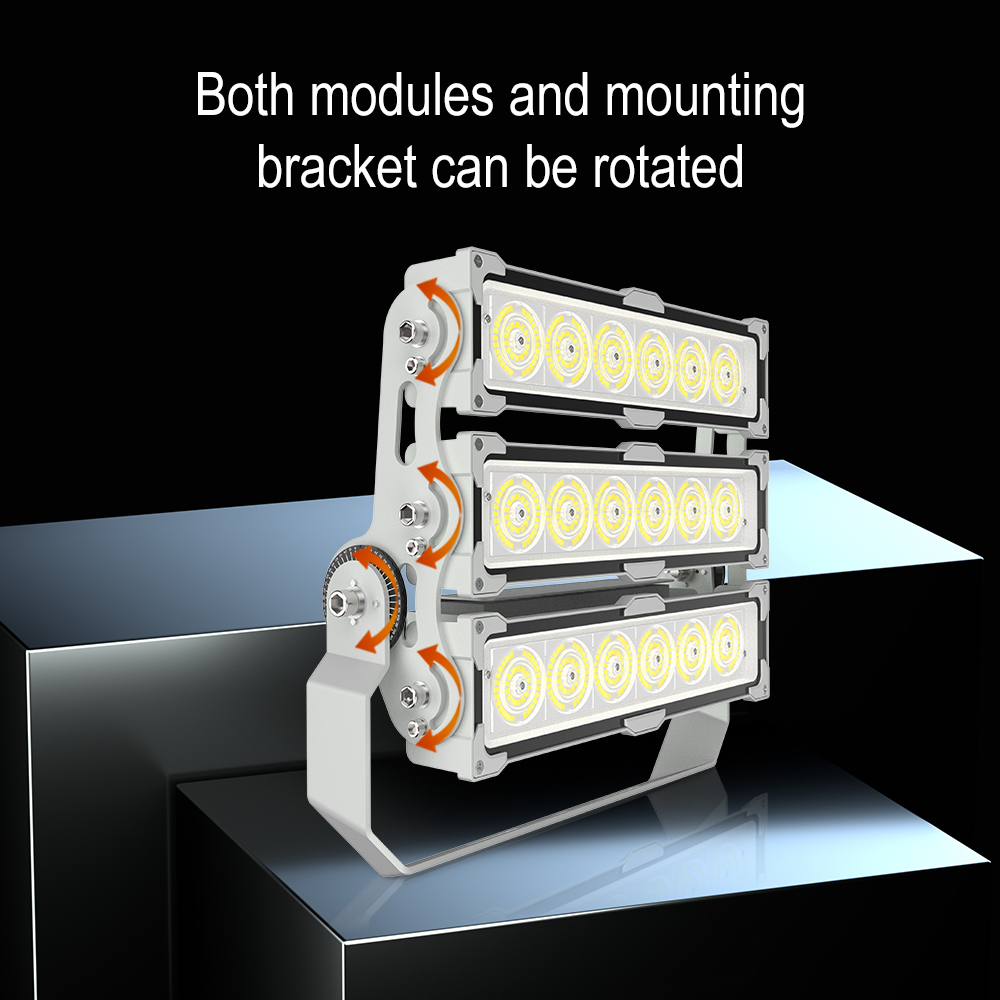

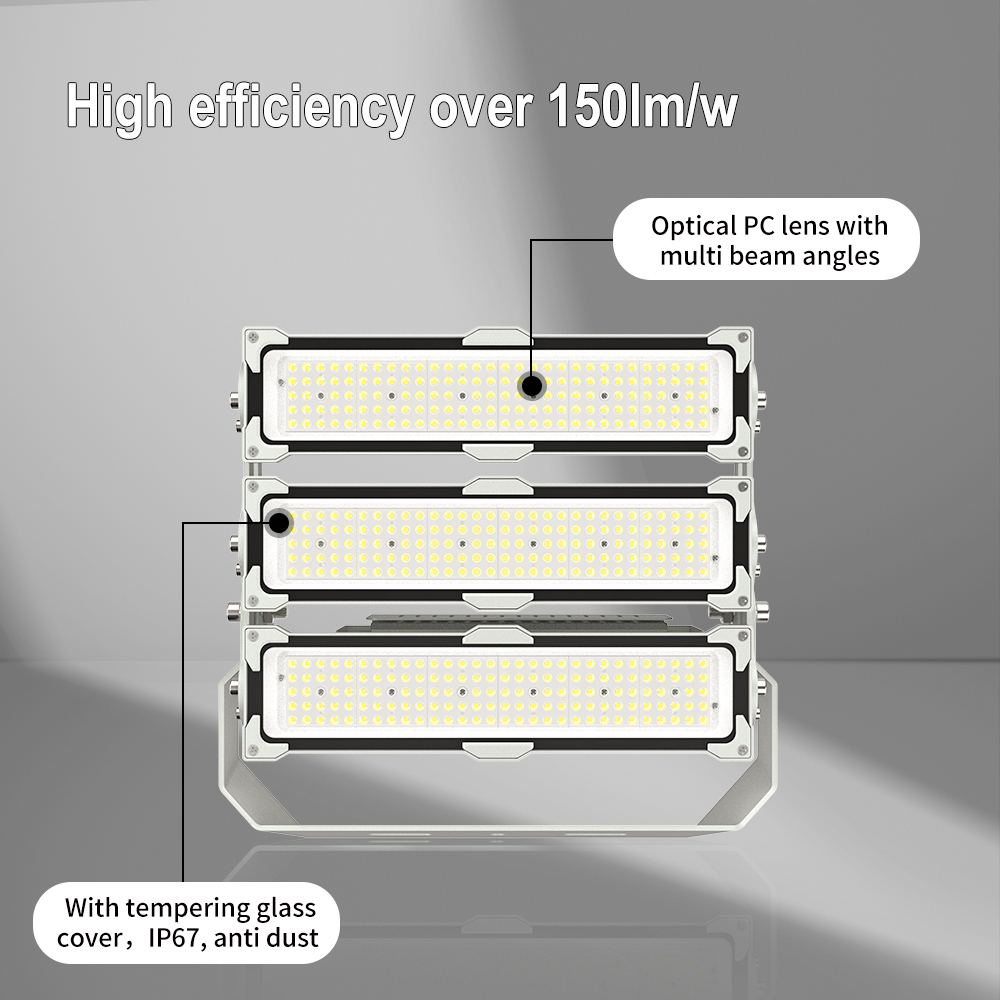

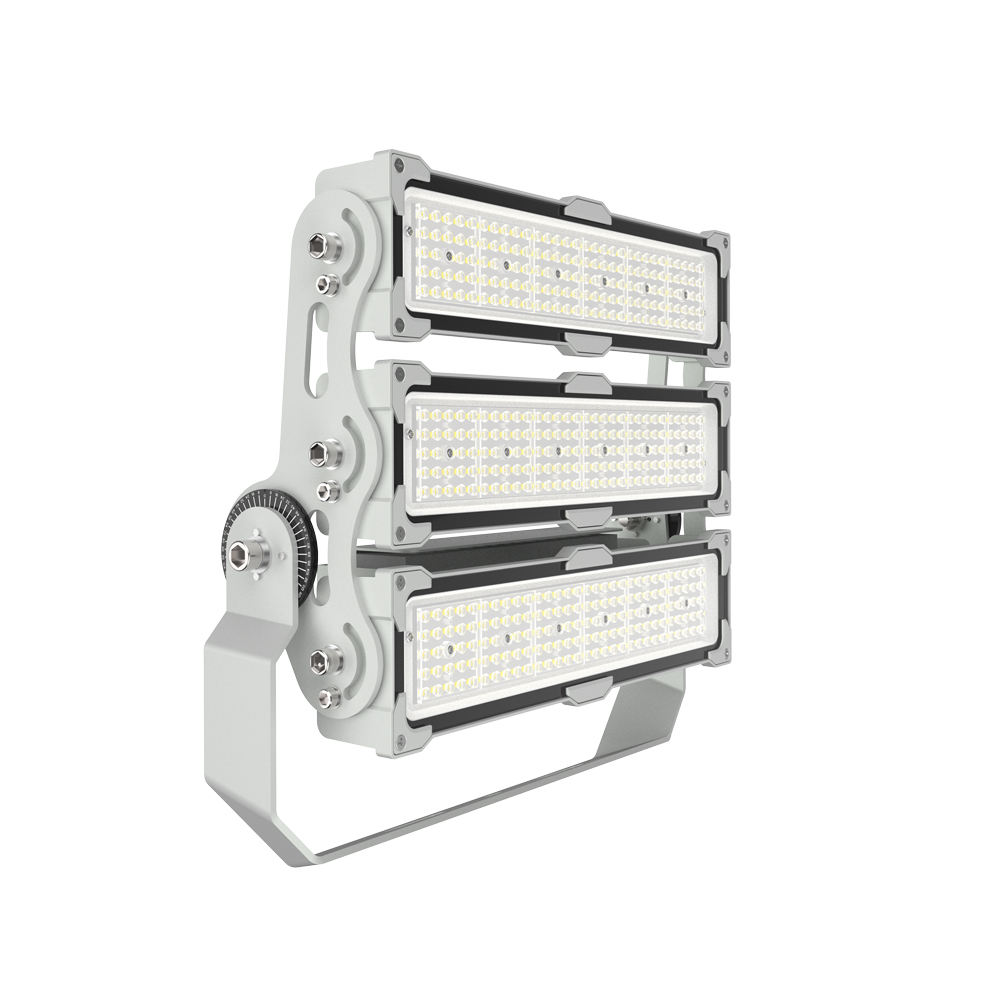

CB ENEC IP67 Outdoor Led Floodlight 100W 200W 300W 400W 500W 600W 800w 1000W Reflector De Led Sport Field Flood Light

Product Description

Product Description
  • 7-year warranty
  • IP67 design, with 3rd party testing reports
  • 1-10V dimming, DMX, DALI are available for option
  • Available power options: 30W, 50W, 75W, 100W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W
  • Lamps certification: TUV ENEC CB SAA CE ROHS EMC LVD LM79 LM80, etc
  • Surge protection: 10KV/20KV
  • Multi beam angles: 20°, 30°, 45°, 60°, 90°, 120°, 60x120°, 90x120°, and 80*150° (asymmetrical lens T2, T3, T4)
Private model, with big stock of materials, stable supply, fast delivery, no MOQ!

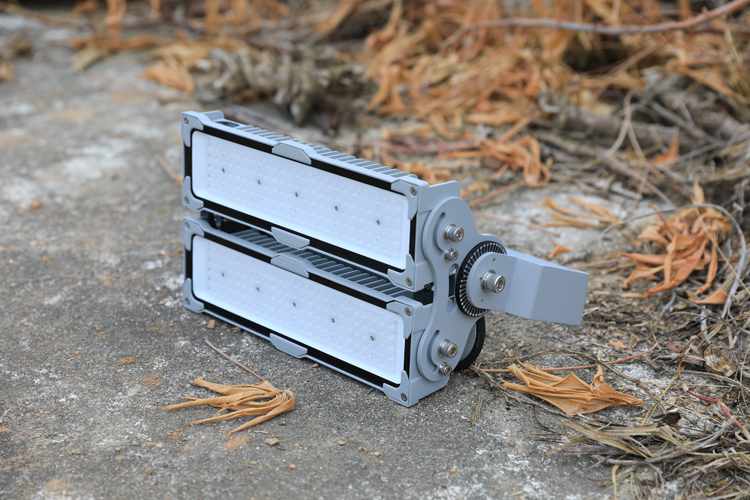

Flood Light Product
Flood Lights Specifications
Model SW-TN610C-W300
Watt 100W 200W 300W 400W 500W 600W 800W 1000W
Lumens (lm) 15000lm 30000lm 45000lm 60000lm 75000lm 90000lm 120000lm 150000lm
Efficiency 150-160lm/w, 165-180lm/w option
LED Chip 2835 SMD, 3030 SMD
LED Driver SOSEN, Mean Well (Other brands of LED Driver are available for option)
Dimmable 1-10V dimming, DMX, DALI are available for option
Input Voltage 50/60Hz; AC90-305V; 347V/480V for option
Heatsinks Die casting aluminum ADC12, PC lens+glass
Beam Angle 20°, 30°, 45°, 60°, 90°, 120°, 60x120°, 90x120°, and 80*150° (asymmetrical lens T2, T3, T4)
THD <10% (at 230v, 50Hz)
Surge Protection L/N-PE: 10KV, L-N: 6KV; 20KV version is for option.
Color Temp Warm White: 2700-3200K | Natural White: 4000-4500K / 5000-5500K | Cool White: 5700-6500K
IP Grade IP67, IK09
CRI >70Ra
PF > 0.95
Life Hours 70,000 hrs
Warranty 7-year
Temperature -35℃ - 45℃
Humidity 10% - 90% RH
Body Color Grey
Certificates TUV ENEC CB SAA CE ROHS EMC LVD LM79 LM80, etc

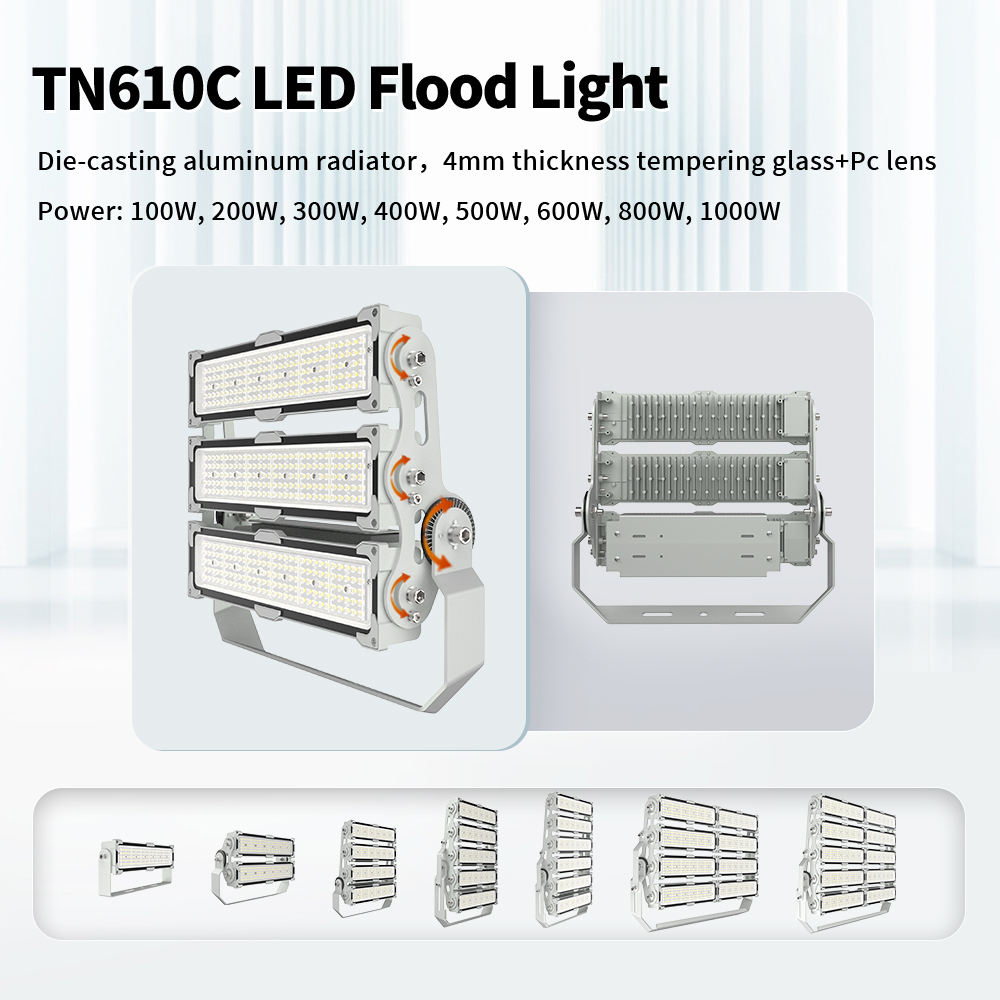

Detail View 1

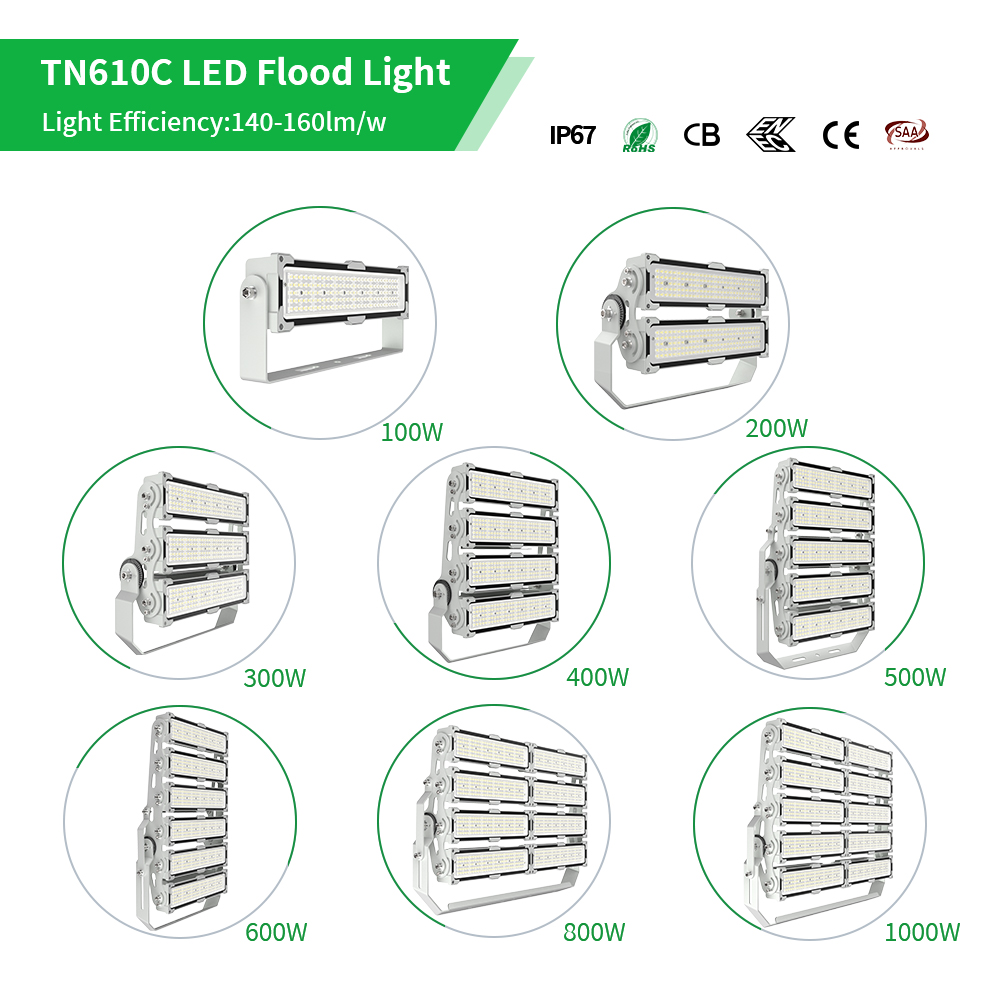

Detail View 2

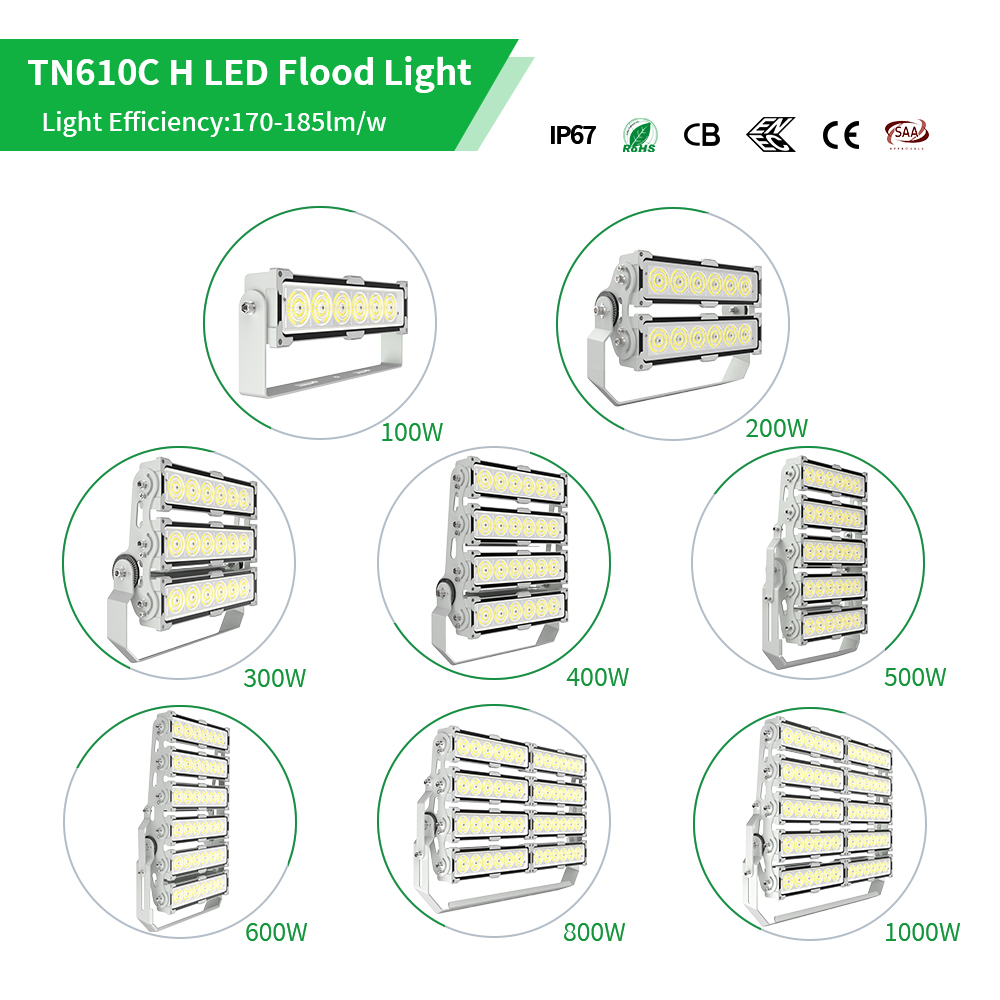

Detail View 3

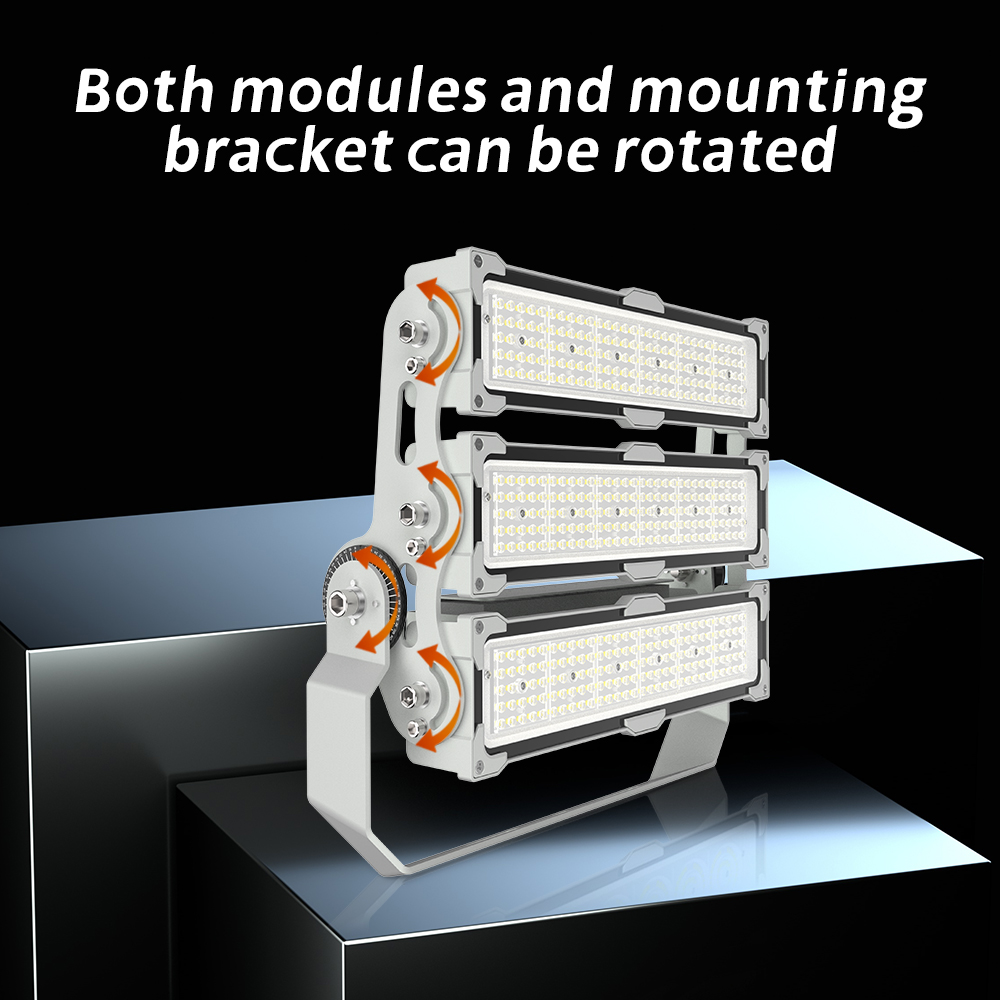

Detail View 4
Detail View 5

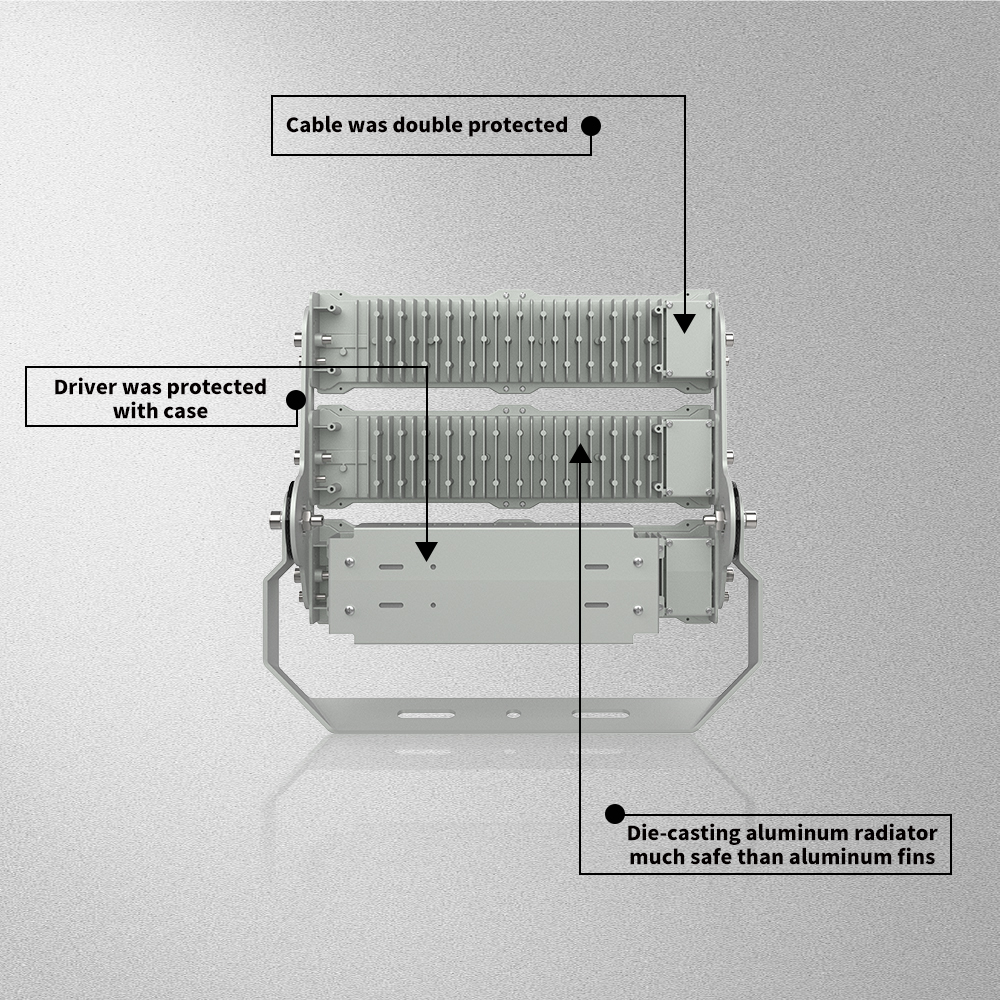

Detail View 6

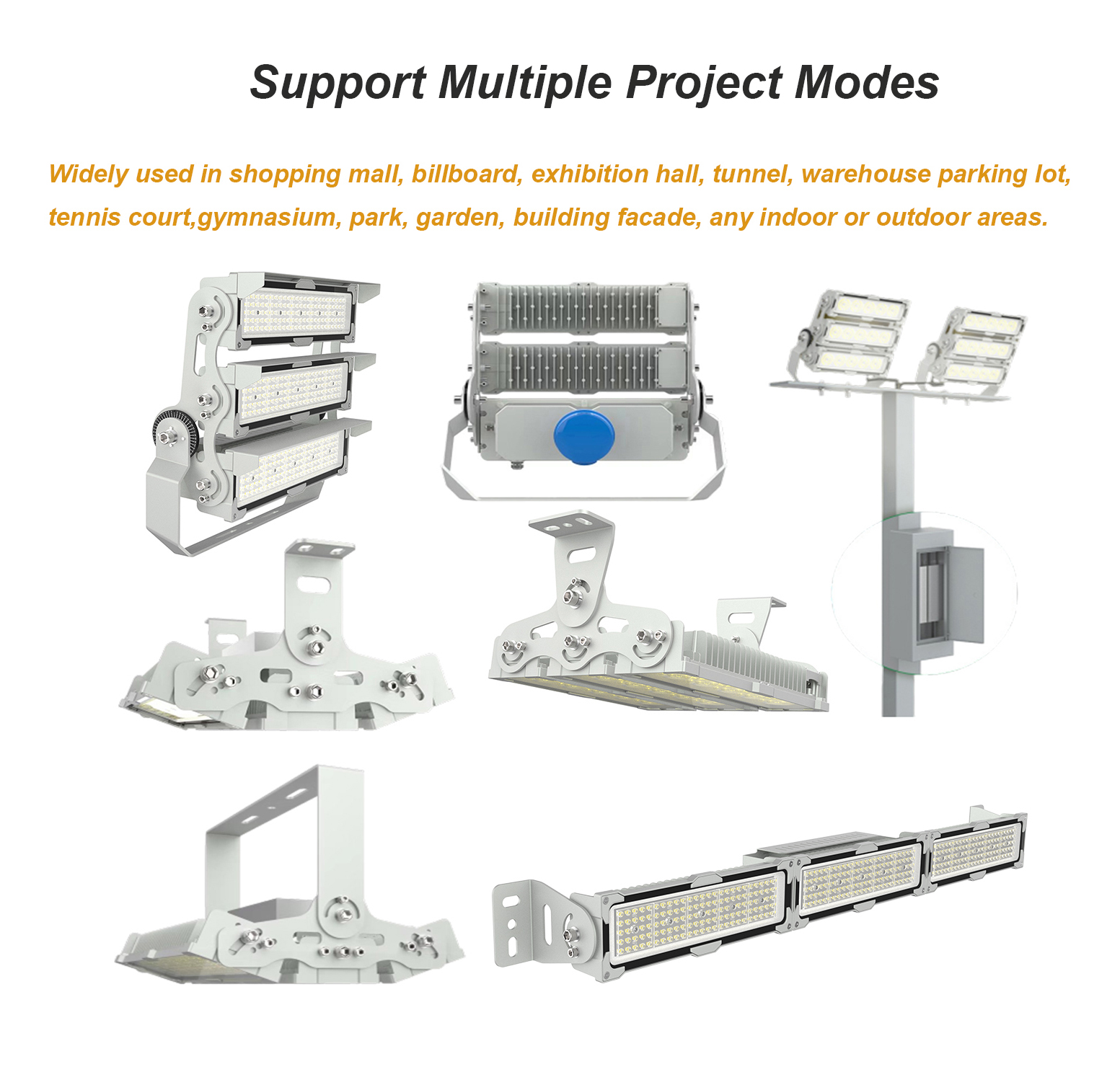

Detail View 7

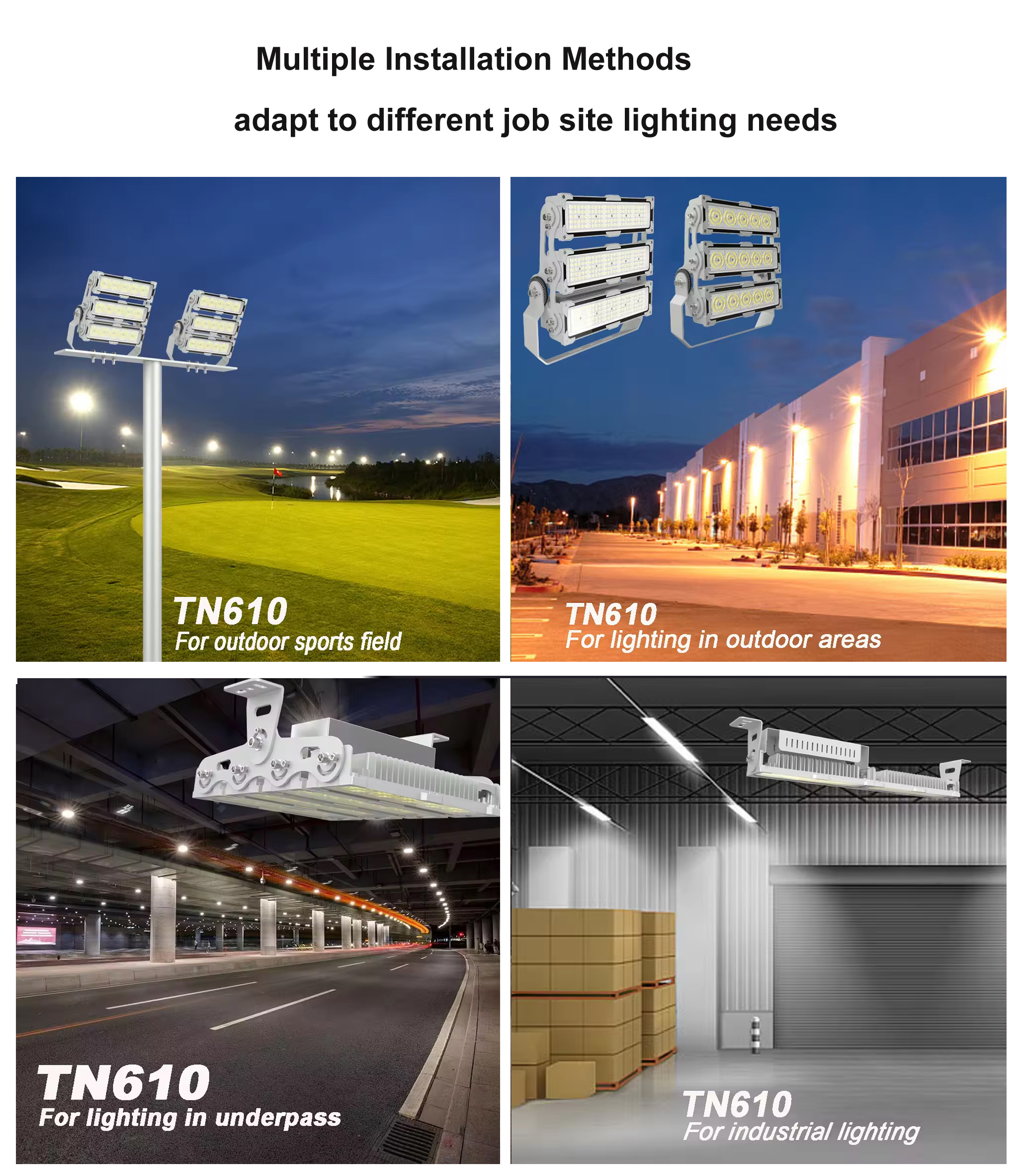

Detail View 8
Detail View 9
Other Modules

Offers a variety of style module floodlights to choose from

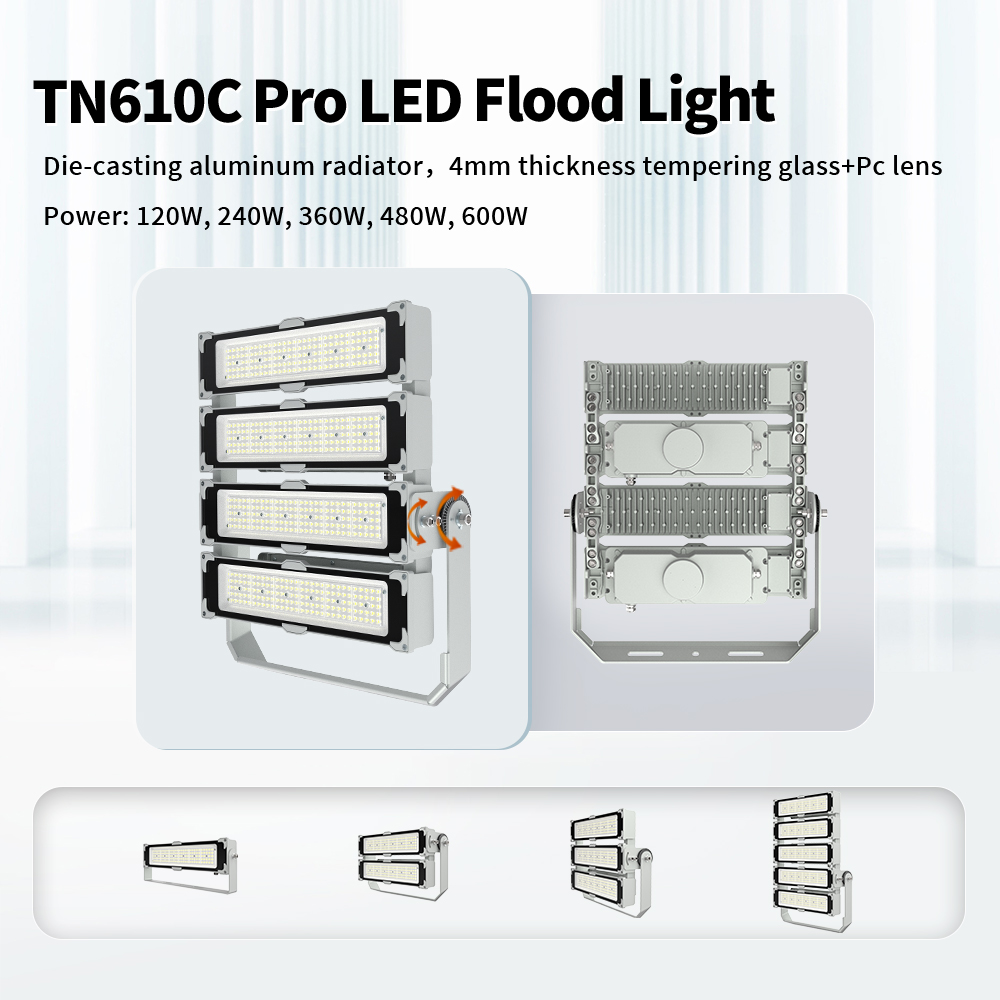

Module Style 1

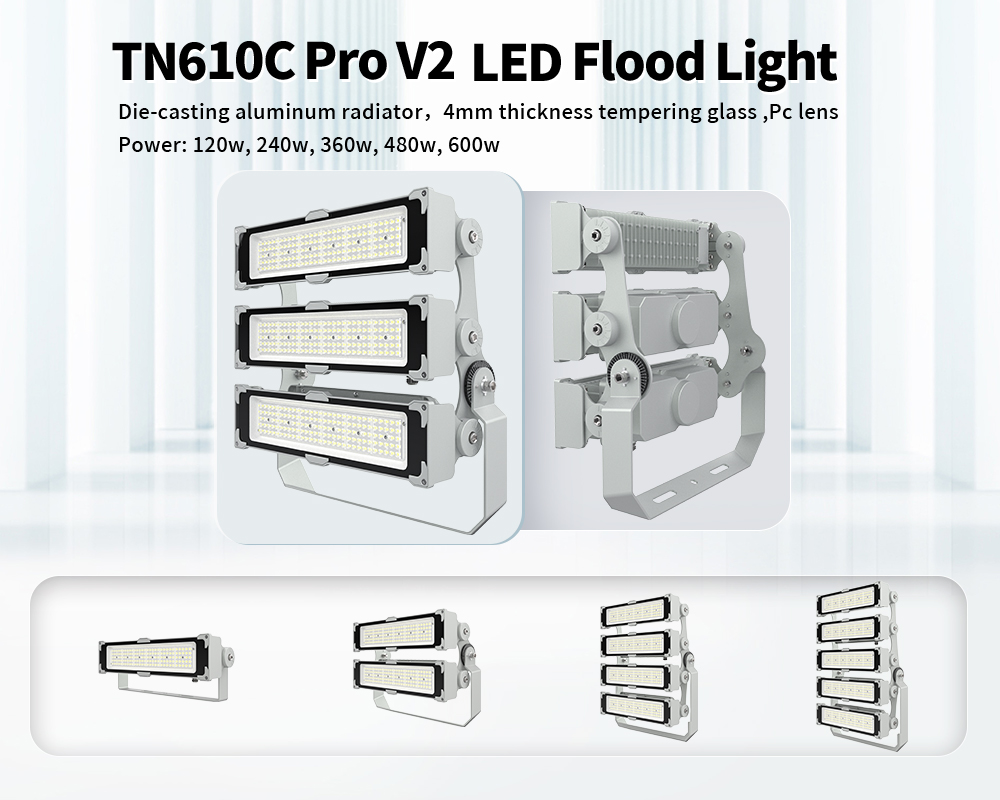

Module Style 2

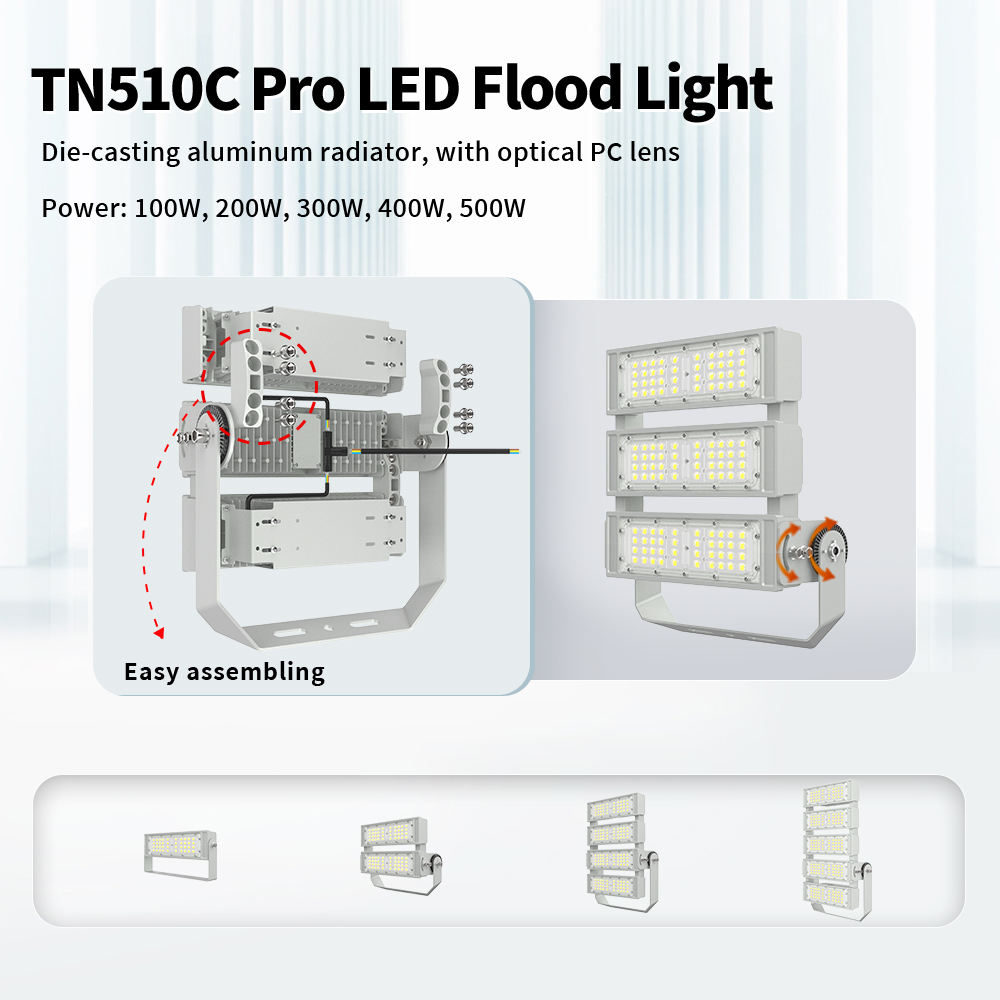

Module Style 3

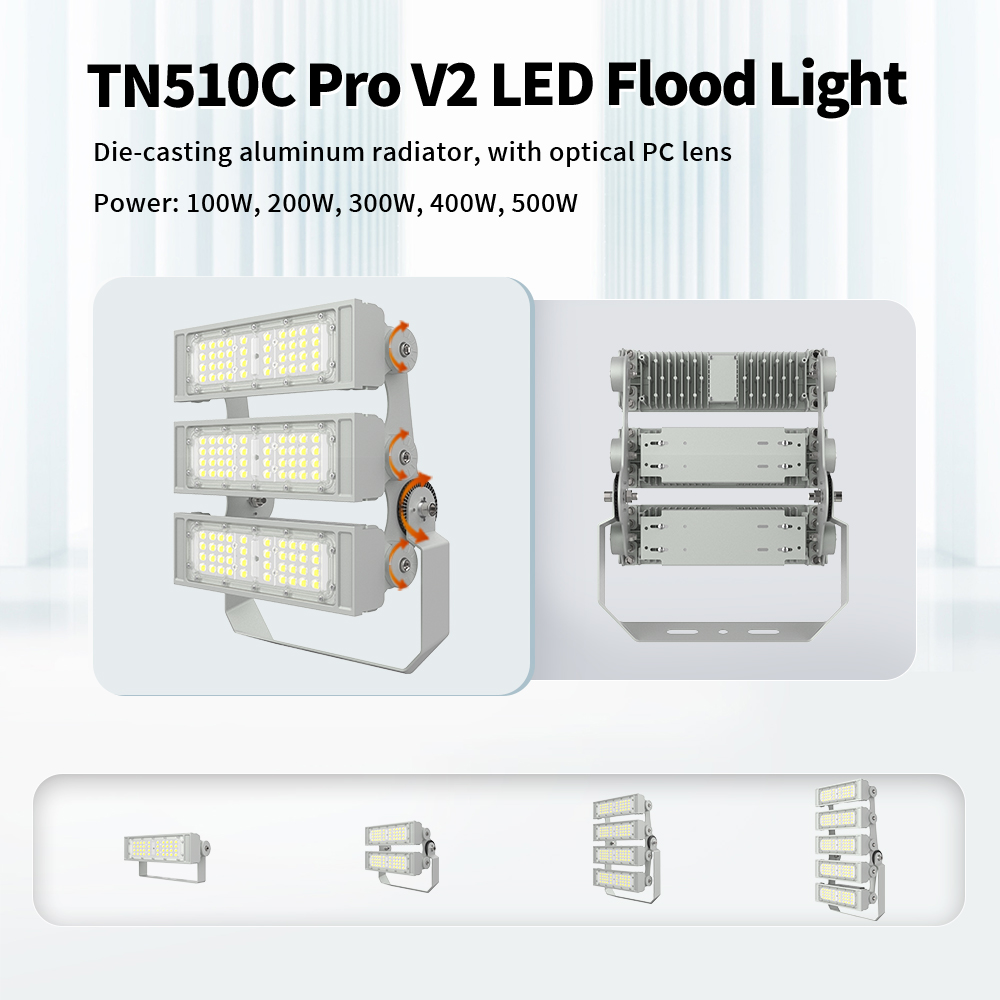

Module Style 4
Module Style 5
Module Style 6
Hot Products
Hot Products Collection
Certifications
Certification Showcase 1
Certification Showcase 2
Certification Showcase 3

Experienced supplier in LED lighting industry for 17 years.

OEM/ODM service are available, welcome custom sample order.

Thanks for your attention on our LED Stadium Flood Light.

7-year Warranty, We provide high quality goods

Click for More Information!!!

Footer Banner
FAQ
Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What is the warranty for the lights?
For the lights, we have 5-7 years warranty. If any quality problems on our side occurred in this period, we'll take on the shipping cost and replacement.
Are you a factory or trading company?
We are factory directly specialized in LED Lighting. We offer reliable quality, competitive price and short lead time for our clients.
Is ODM or OEM accepted?
Yes, we can do ODM & OEM. Putting your logo on the light or package is available.
How is your quality control?
We have strict QC process and all the lights will be 100% 48-72 hours testing before shipping.
Our project is on seaside, what if your lights be corroded by sea water?
Metal has high corrosion resistance. Besides, we do best on light surface treatment; electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrosion.
