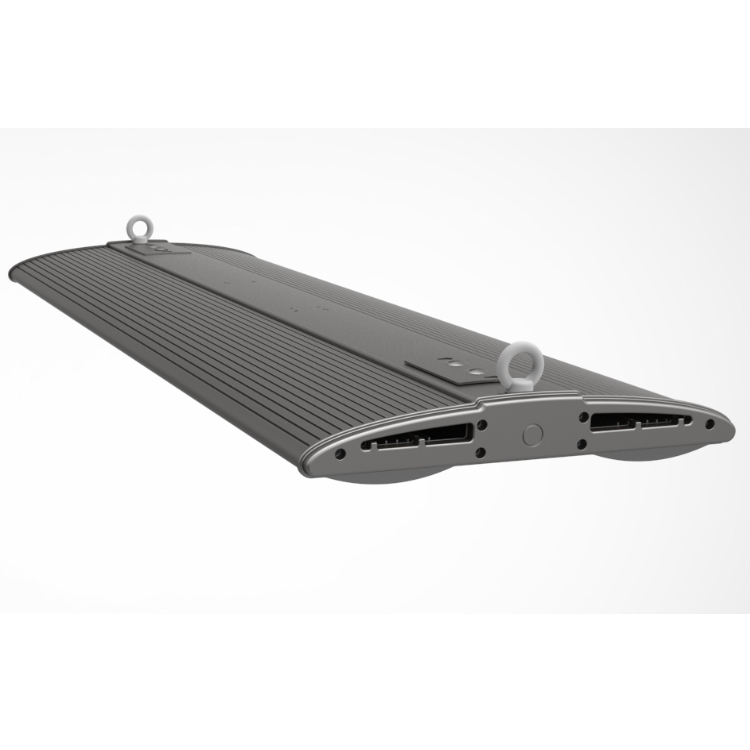

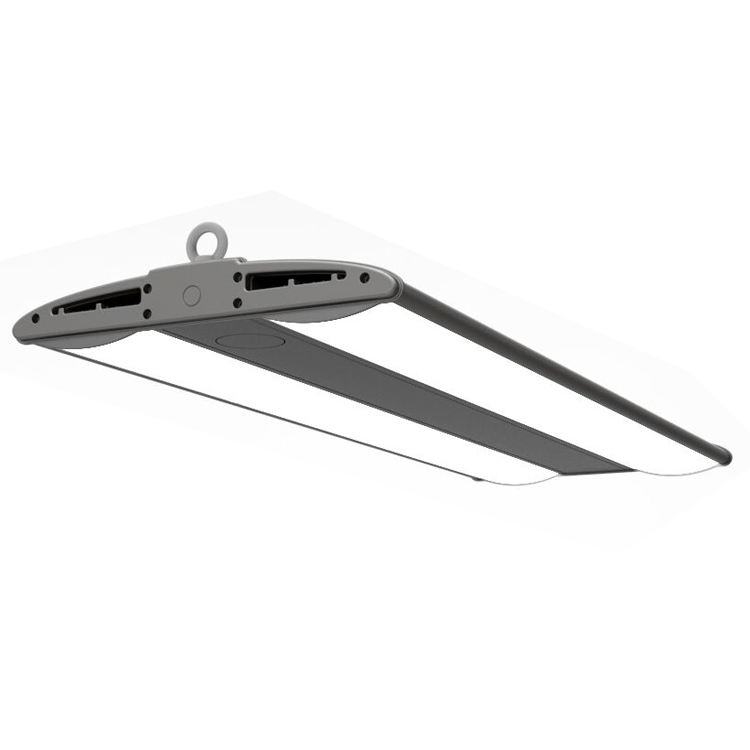

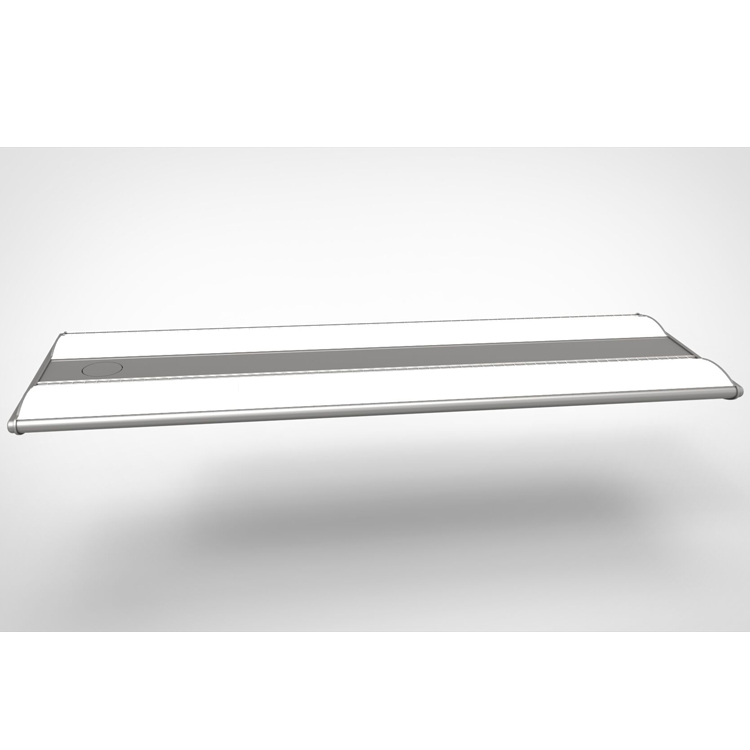

High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
1 / 5
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body
High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body

High-Bay LED Lighting for Stadiums/Gyms 100W-300W Industrial Aluminum Lamp Body

Send Inquiry

Product Description

Detailed Images
LED Linear High Bay Lighting Fixture
  • New design, with double & bigger light emitting area
  • Black/white finish for optional
  • Adopt Samsung SMD2835 LED as light source
  • Using high quality MeanWell/Sosen brand LED driver
  • 5 years warranty
  • 100W, 150W, 160W, 240W and 320W available for choice
  • Protection ratio: IP54

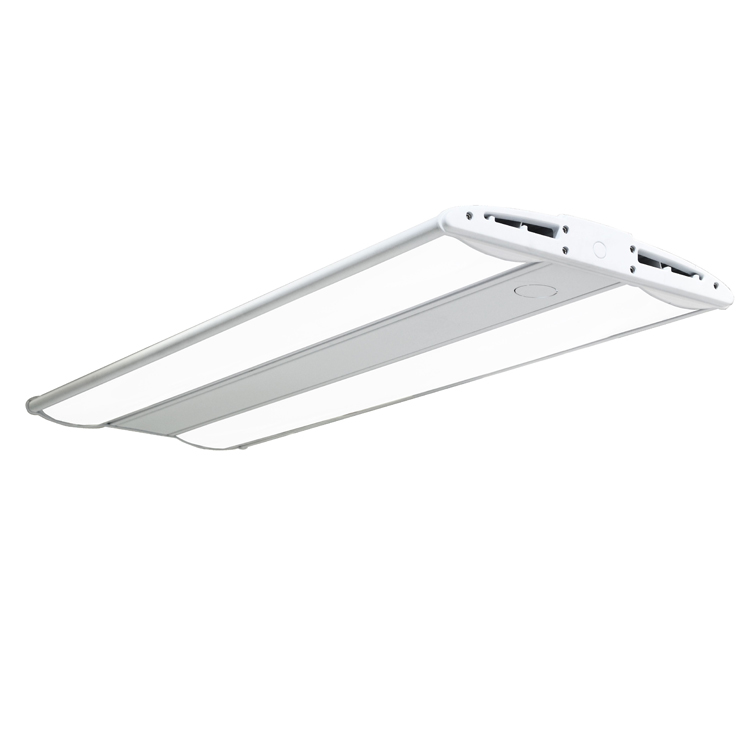

LED Linear High Bay Lighting Fixture Detail 1

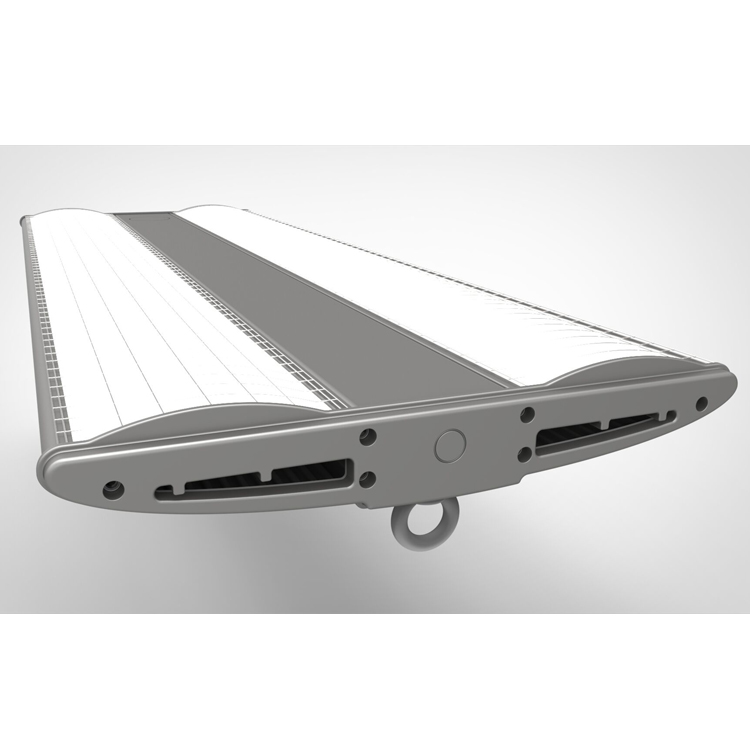

LED Linear High Bay Lighting Fixture Detail 2
  • Materials: Aluminum Alloy+Milky PC cover
  • Beam angle: 120degree
  • Dimmable: optional
  • Motion sensor: optional
  • PF: >0.95
  • CRI: Ra80
  • Color temperature: 2700-6500K
  • Lumens efficiency: 130lm/W
  • Finish color: white or black
  • Application: warehouse, workshop, factories, buildings, GM, parking garage etc.

The LED driver and the light source are separate which can make the driver work under normal temperature. By this, it prolongs the lifetime of the light.

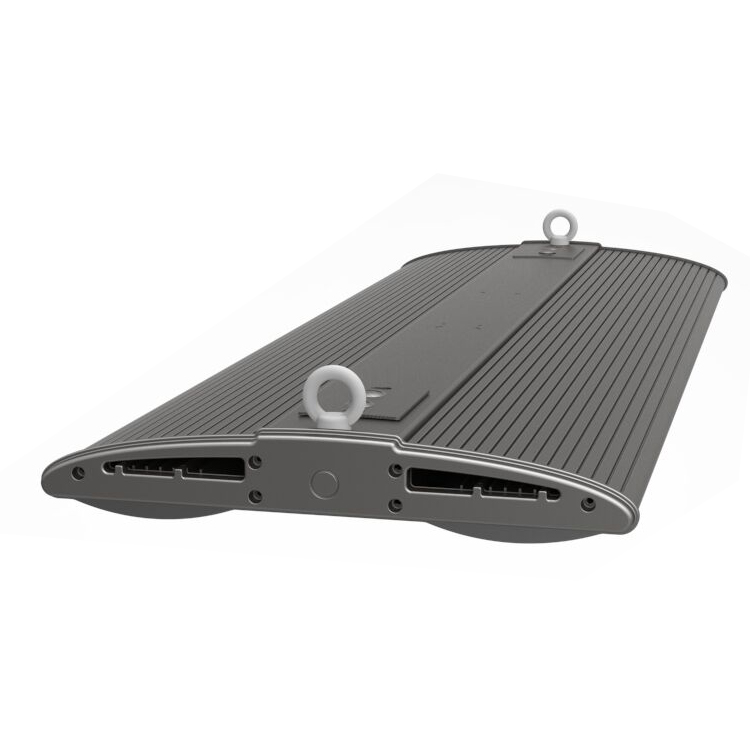

The two hooks on the backside are for direct easy installation.

Driver and Hook details

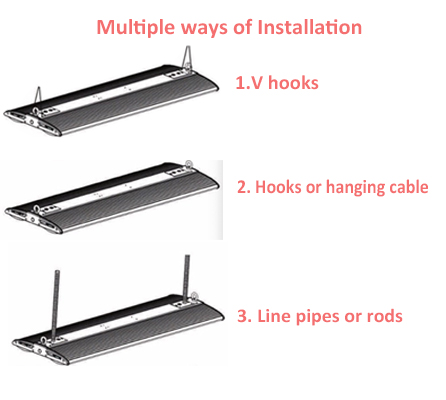

Installation Methods
Different ways of installation
  • 1. V hooks
  • 2. Hooks or hanging cable
  • 3. Line pipes or rods
Product Presentation
High quality new design LED linear high bay lighting fixture
Product Presentation Image
Product Name LED linear high bay light
Material Aluminum alloy+milky PC cover
Power consumption 100W
Input Voltage 100-277V
Color temperature 2700K-6500K
Lumens output 12000lm
Protection ratio IP54
Beam angle 120degree
Dimmable Optional
Motion sensor Optional
Warranty 5years
Lamp size L*W*H: 624*426*113mm
Different sizes with different power available
Model No. Power Size of High Bay Light Input voltage Lumens Color Temperature
HZ-LHB-100WA 100W L*W*H: 624*426*113mm 100-277V 12000lm 2700-6500K
HZ-LHB-150W 150W L*W*H: 924*426*113mm 100-277V 18000lm 2700-6500K
HZ-LHB-100WB 100W L*W*H:1224*426*113mm 100-277V 12000lm 2700-6500K
HZ-LHB-160W 160W L*W*H:1224*426*113mm 100-277V 20000lm 2700-6500K
HZ-LHB-240W 240W L*W*H:1224*426*113mm 100-277V 30000lm 2700-6500K
HZ-LHB-320W 320W L*W*H:1224*426*113mm 100-277V 40000lm 2700-6500K

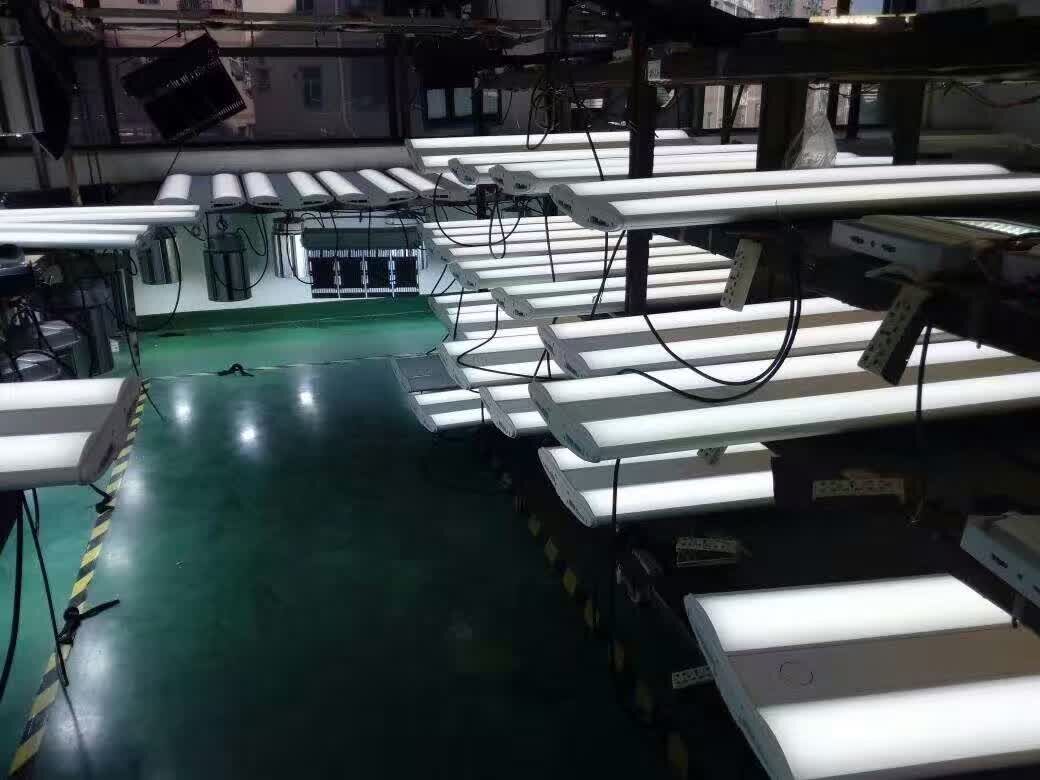

LED Linear High Bay Light Gallery 1

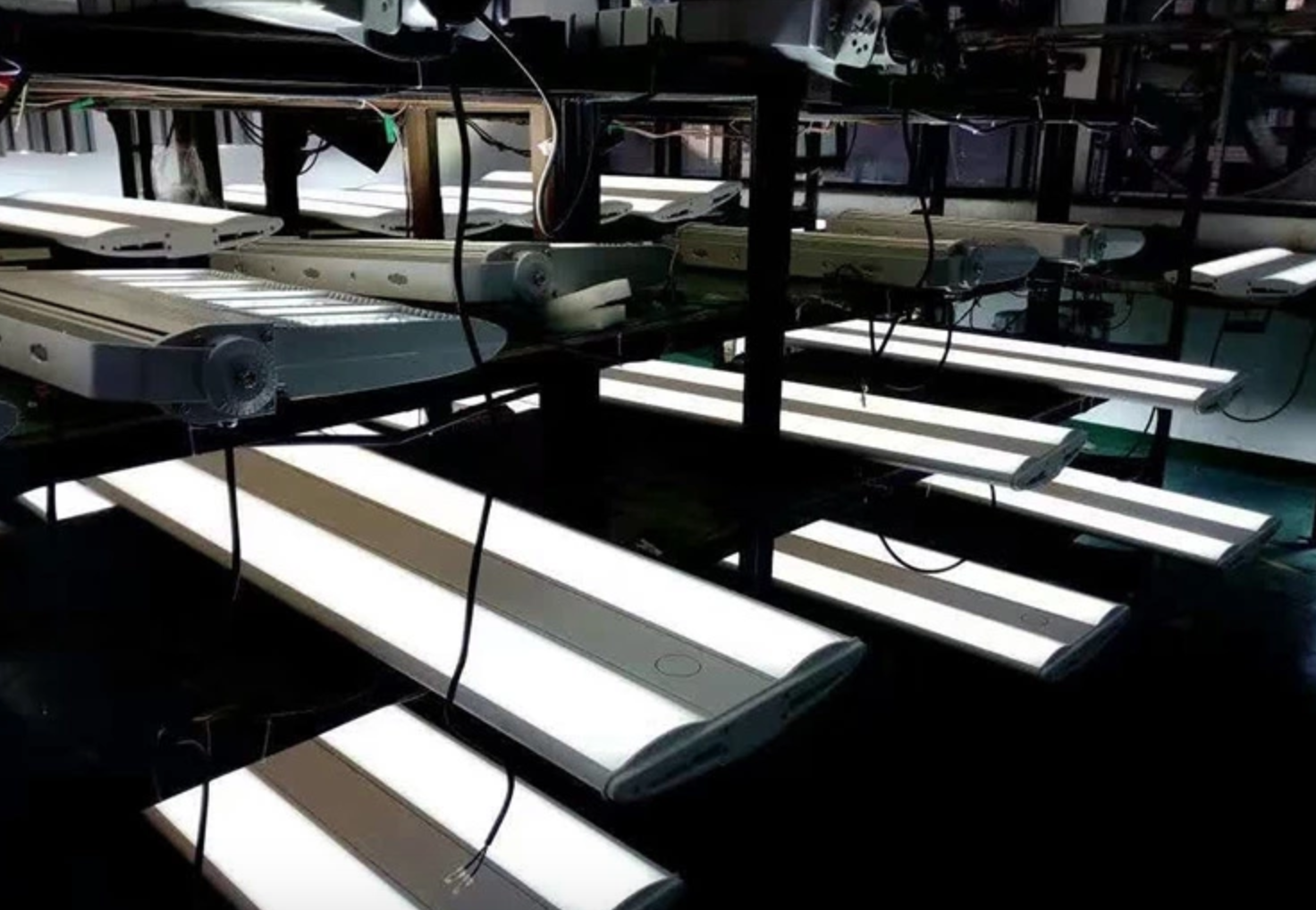

LED Linear High Bay Light Gallery 2
FAQ
CAN I HAVE A SAMPLE ORDER FOR LED LIGHT?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
WHAT ABOUT THE LEAD TIME?
Sample needs 3-5 days, mass production time needs 1-2 weeks.
DO YOU HAVE ANY MOQ LIMIT FOR LED LIGHT ORDER?
Low MOQ, 1pc for sample checking is available.
HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
DO YOU OFFER GUARANTEE FOR THE PRODUCTS?
Yes, we offer 2-5 years warranty to our products.
HOW TO DEAL WITH THE FAULTY?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order.
