GENERAL GARDEN SPOT LIGHTS Series
Please view the other of our LED series below.
Ultra Slim COB LED Inground Lights Recessed Down Light Ceiling Light
- Anodizing 6063 Extruded Aluminum housing made by our own CNC machine (not by mold, not die-casting Aluminium). It is better for cooling and more anticorrosive than the die-casting Aluminum housing. It is solid, and its density is much higher than the die-casting housing which has lots of small holes inside.
- Special designed 11~13 μm thickness of protective passivated film for housing which is more anti-corrosive. (The general die-casting Aluminium housing is only with about 5 μm epoxy powder paint finish film which is easier to be corrosive, and the water can seep into the small holes inside.)
- Stainless steel 316 (not 304) front cover. Round or Square cover optional.
- Aluminium mounting sleeve made by CNC machine.
- Excellent Tempered glass with high loading capacity.
- H05RN-F waterproof, anti-corrosion and anti-aging cable and PG7 PA IP67 connector.
- High quality with 3 years warranty.
- Easy and convenient for installation.
- Waterproof IP67.
- It can be used for the downlight with the two brackets.
- Special design PMMA lens that do not create the glare-eye effect.
- The light can be dimmed by the below Remote control & PMW panel control for saving energy.
| Item No. |
UL-12W-COB-1200-I |
| Power |
12 Watts |
| LED type |

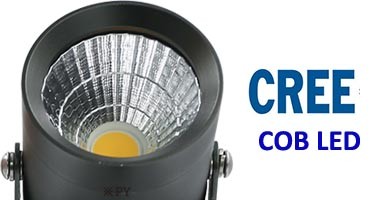

1PCS CREE COB LED |
| Luminous flux |
500~600 lm |
| CCT |
2700K, 3000K, 4000K, 6000K |
| CRI |
80+ |
| Beam angle |
10° 20° 30° |
| Dimension |
150x35 mm (Diameter x Height) |
| Cut out |
135 mm |
| Net weight |
0.98 kgs |
| Warranty |
3 years |
| Certifications |
CE, RoHS |
| Input voltage |
DC24V |
| Insulation class |
Class III |
| Cable |
1PC rubber cable 1M H05RN-F 2x1mm square |
| Driver |
Low voltage constant current output, excluding the transformer |
| IP rating |
IP67 Waterproof |
| IK rating |
IK08 |
| Housing |
Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection finishing |
20~25μm thickness anodized film for housing. Dark grey standard. |
| Trim |
Tempered glass painted in milky white |
| Glass |
Tempered Glass. T=8mm. |
| Mounting box |
Aluminum |
| Clip |
Two clips with screws used as downlight or deck light |
Please check our main products series or contact us for the PDF file E-catalogue to check our whole range of products.

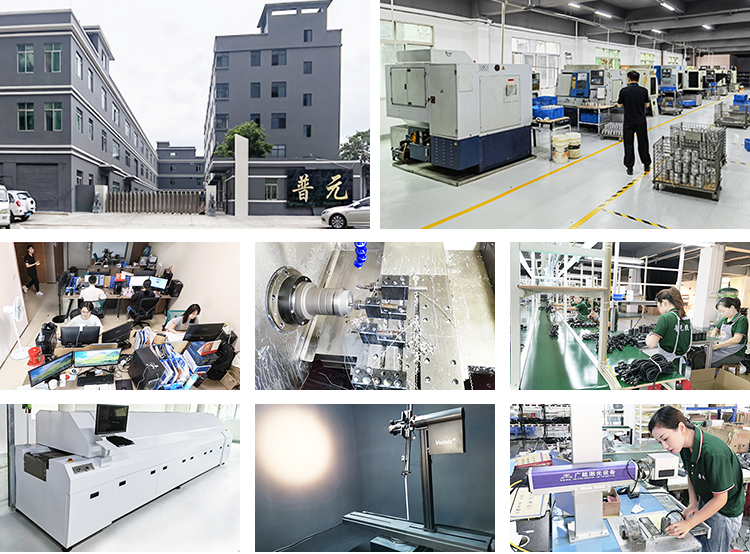

We are a professional LED lighting manufacturer in China, established in 2007. We are specialized in producing Exterior LED lights, such as LED inground lights, LED deck lights, Spike spot lights, step lights, underwater pool lights, LED flood lights, wall washers, etc. We not only pay much attention to quality but also to details such as design, finishing, optics, etc.
We adhere to quality standards of operation and are compliant with ISO9001:2008 for quality management operations systems and ISO14001:2004 for environmental system certification. Our products have varying quality certifications such as CE, RoHS, TUV, and CUL to assure reliability, particularly those exported to Europe, North America, South America, Australia, Iceland, Malaysia, Indonesia, Philippines, UAE, Saudi Arabia, etc.
We usually attend Guangzhou Fair, HongKong International Lighting Fair (Autumn Edition), HongKong International Lighting Fair (Spring Edition), Japan Light Fair, LED Expo Thailand, Light Middle East in DUBAI, etc.
Are you a trade company or a manufacturer?
We are an ISO approved manufacturer that is specialized in exterior LED lighting Products. OEM & ODM services are available.
What is your payment terms?
For samples: 100% deposit. For regular orders: 30% deposit in advance and 70% balance before shipment. The payment method can be Paypal, western union, or bank TT.
What's your delivery terms?
We can provide EX-WORKS, CIF, or FOB delivery terms.
What's your warranty?
We are confident in the quality of our design, and the warranty is 3 years.
Can I buy a quantity below the MOQ?
Yes, please contact us for the detailed prices based on your specific quantity requirements.
What certifications and waterproof ratings do your products hold?
Our products are certified with CE and RoHS, and they carry a high-reliability IP67 waterproof rating along with an IK08 impact protection rating.
