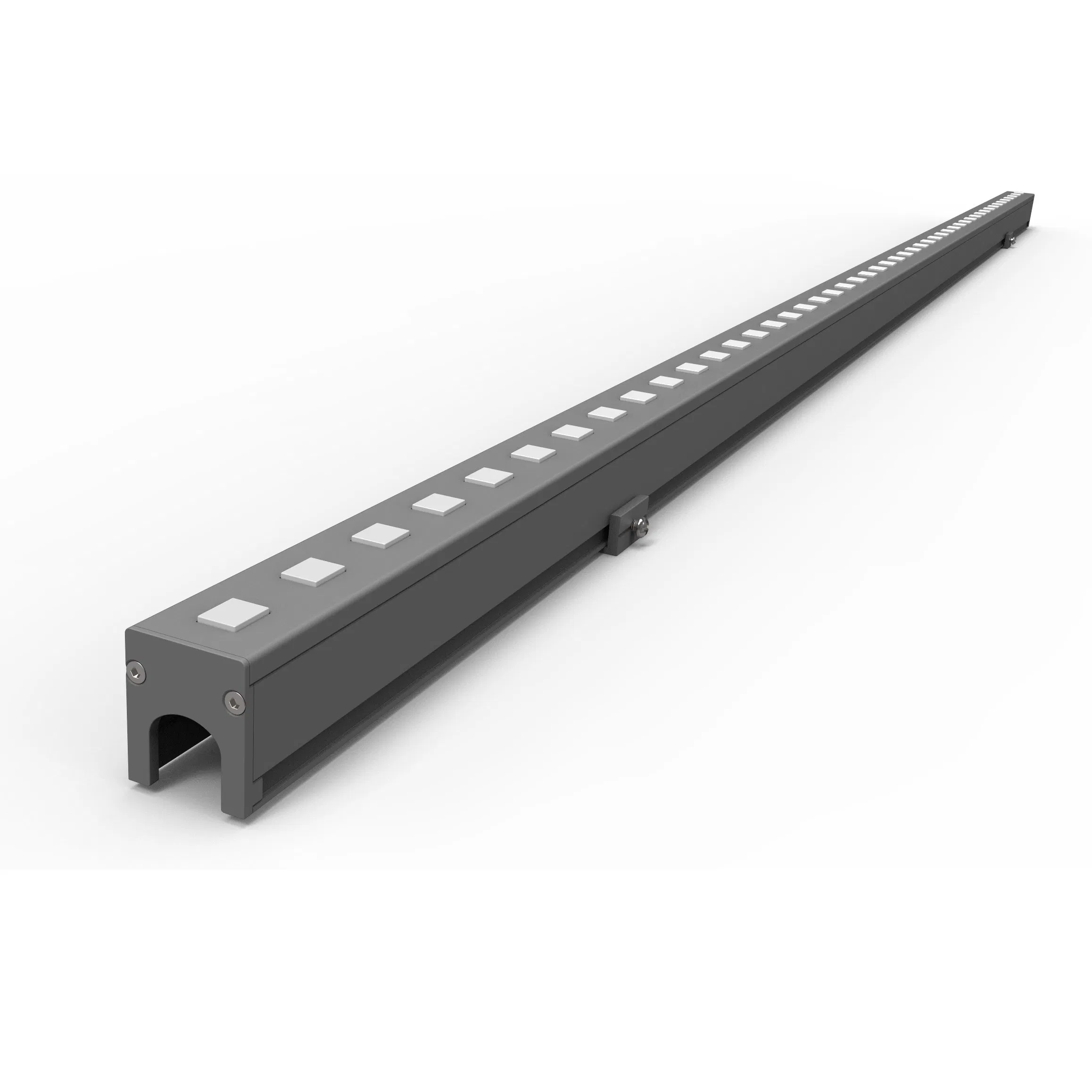

DMX512-A protocol DC24V IP65 Jyfx07 Anti Glare 12W 1800K-10000Koption LED Wall Washer Option LED Wall Washer
15W 1800K-10000K optional15W RGB15W RGBW
Product Specifications
Working Voltage:DC24V
Shell Material:Stretch Aluminum
LED Chips:SMD2835 or 5050
Shell Color:Sprayable according to curtain wall
Protection Level:IP65
LED Lifetime:50000Hr
Control Mode:Monochrome constant brightness or DMX512

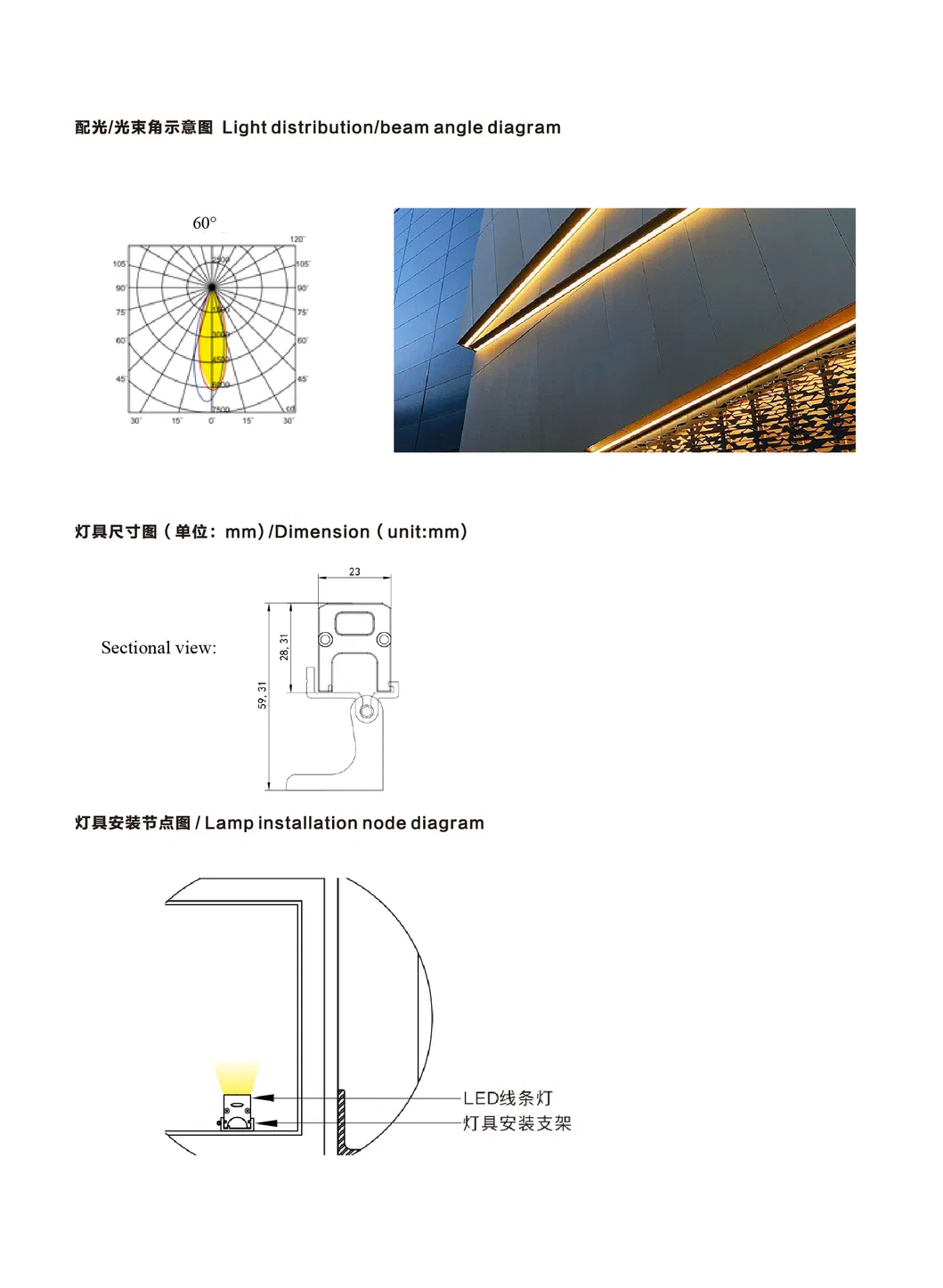

Beam Angle:15°, 30°, 60°, 120°, 25*45°, 10*60° and more
Ambient Temp:-35ºC ± 50ºC
Outgoing Method:Center outgoing line
Line Length:docking 106cm

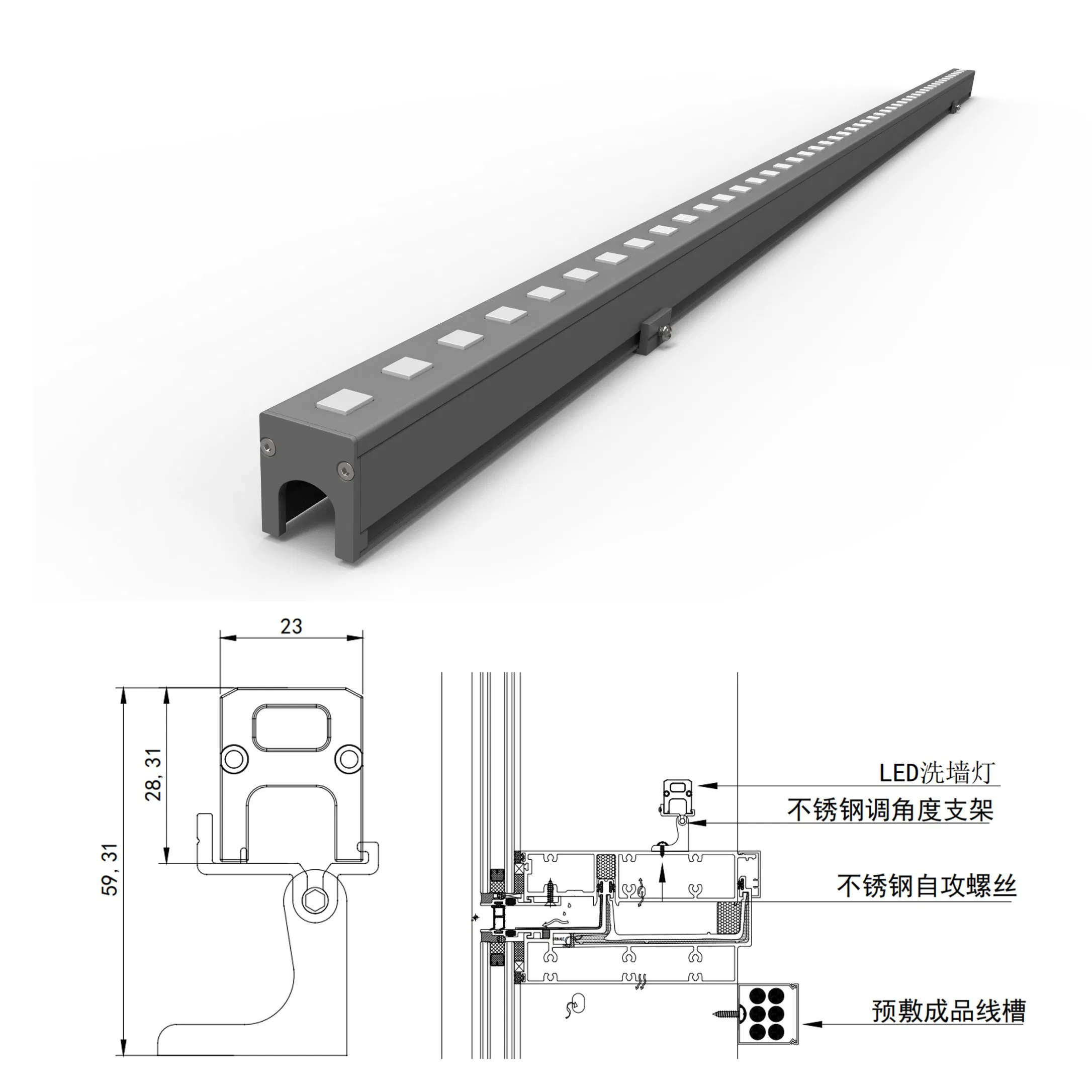

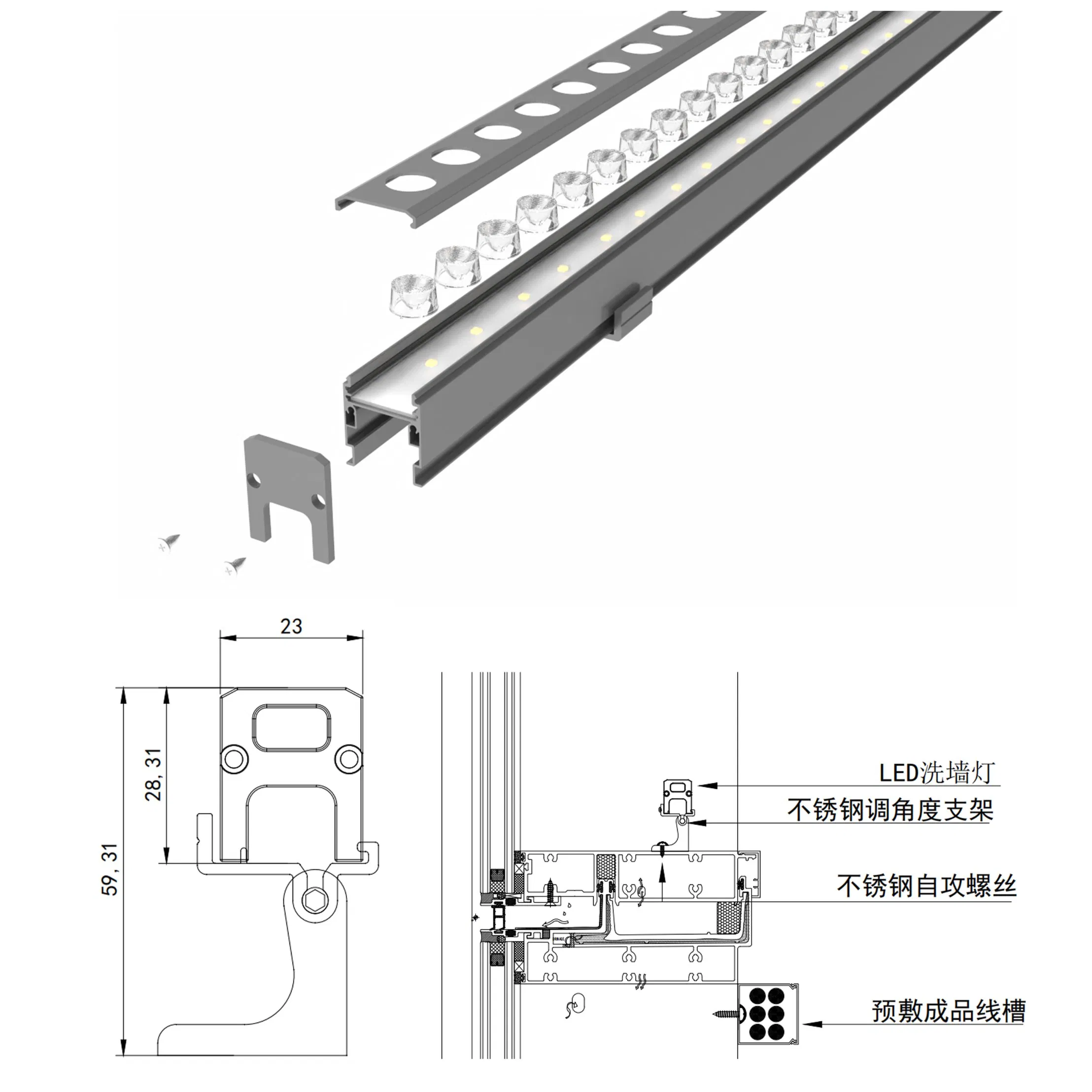

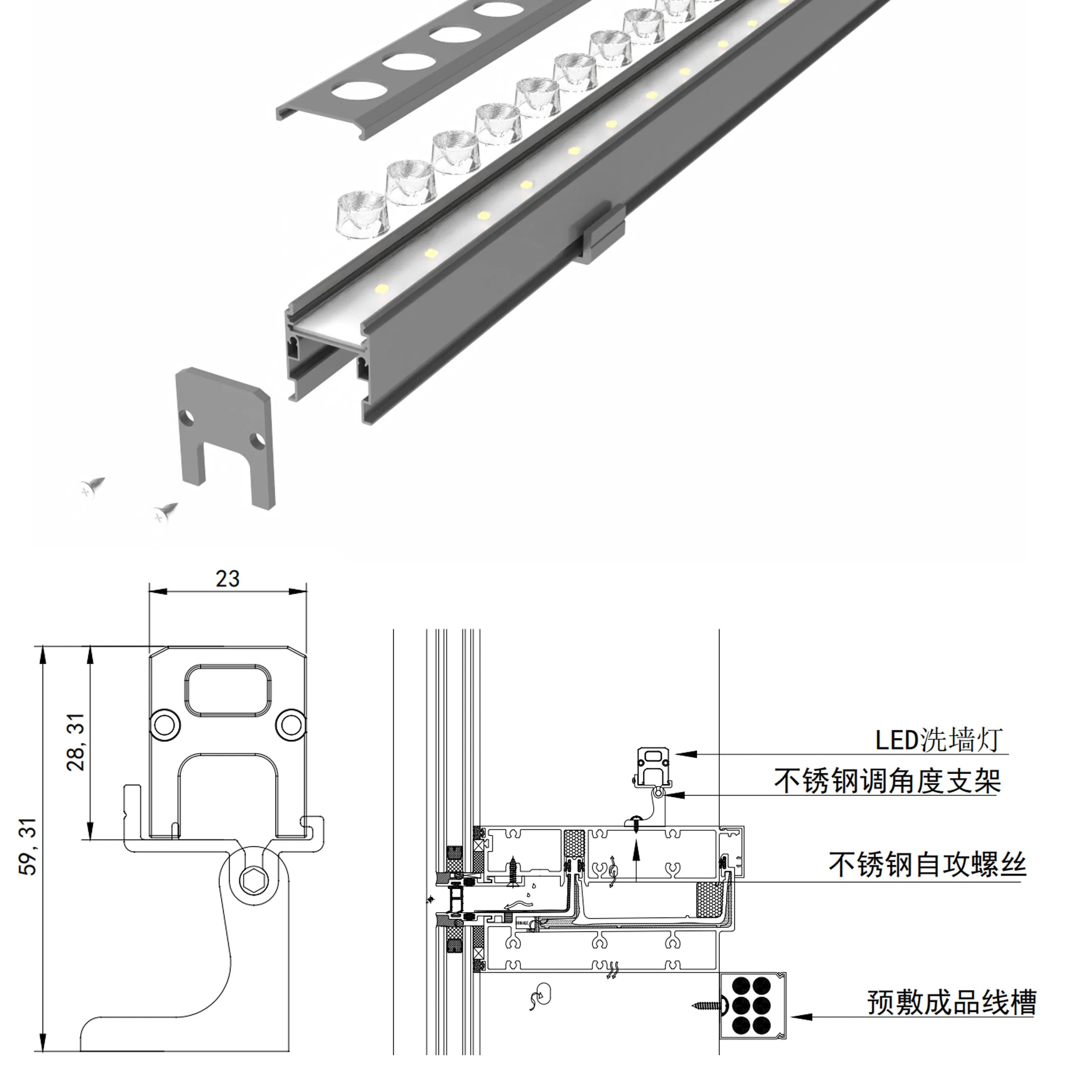

Product Size:23 * 28.3 * 1000mm

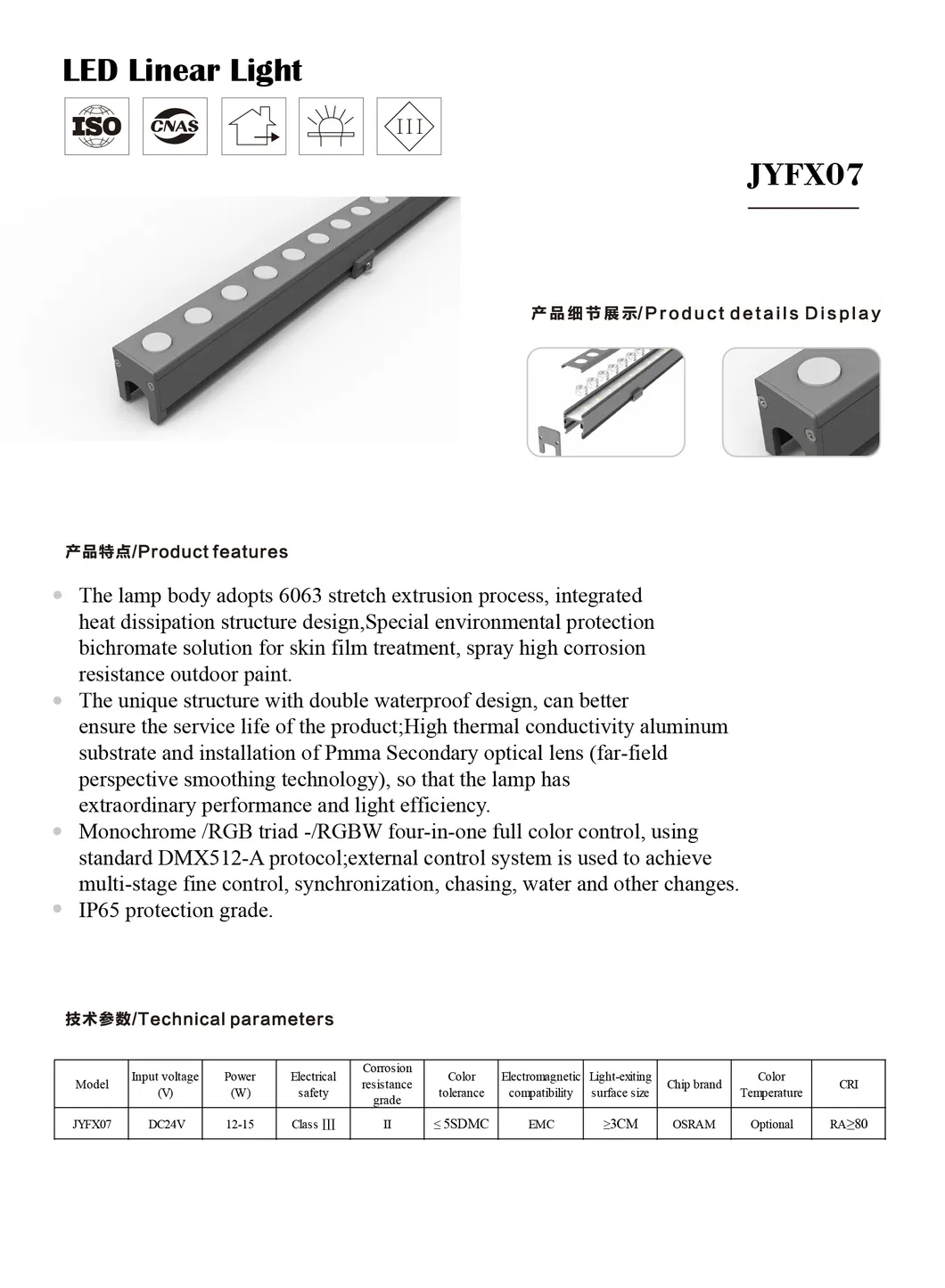

Model Reference Data
Model
Input voltage (V)
Power (W)
Electrical safety
Corrosion resistance grade
Color tolerance
Electromagnetic compatibility
Light-exiting surface size
Chip brand
Color Temperature
CRI
JYFT07
DC48V
12-15
Class III
II
≤ 5SDMC
EMC
≥ 3CM
Optional
Optional
RA ≥ 80
Product Image Gallery
Frequently Asked Questions (FAQ)
Q1: What is the main control protocol used for this LED Wall Washer?
A1: This LED Wall Washer supports the standard DMX512-A protocol control mode as well as a monochrome constant brightness control option.
Q2: Can the shell color of the LED Wall Washer be customized?
A2: Yes, the stretch aluminum shell can be customized and sprayed according to the specific color requirements of your architectural curtain wall.
Q3: What are the protection level and environmental tolerance capabilities?
A3: The fixture is rated IP65 for dust and water resistance, and it operates efficiently in ambient temperatures ranging from -35ºC to +50ºC.
Q4: What are the beam angle choices available for different applications?
A4: We offer multiple beam angle selections including 15°, 30°, 60°, 120°, 25*45°, 10*60°, and other custom angles to meet diverse project requirements.
Q5: What is the lifespan and power specifications of the JYFT07 model?
A5: The JYFT07 model supports a power range of 12-15W under DC48V input voltage, maintaining an electrical safety classification of Class III, with an expected LED lifetime of up to 50,000 hours.

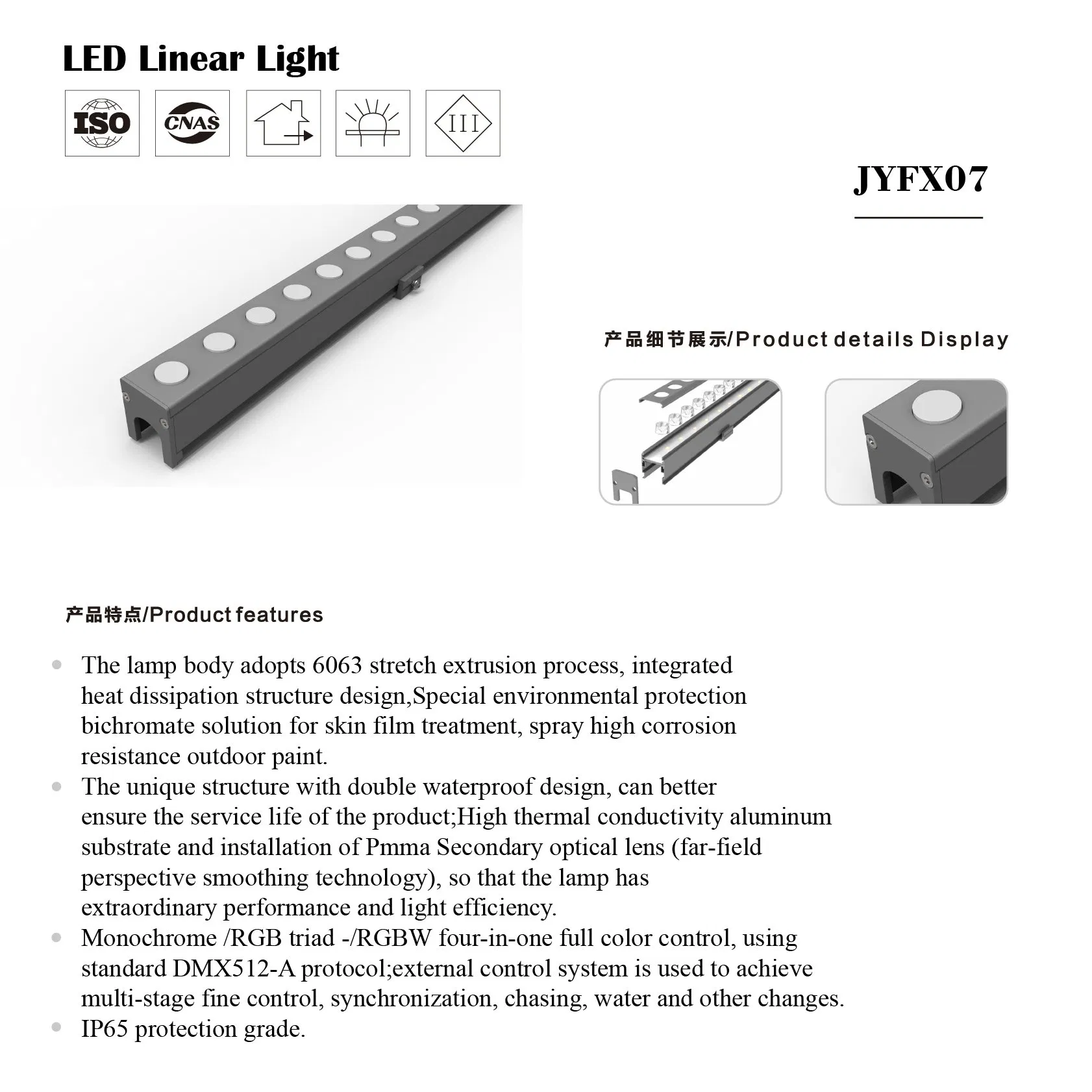

Q6: What light options are supported within the JYFX07 series?
A6: The series provides versatile light choices including 1800K-10000K variable CCT options, 15W RGB, and 15W RGBW output configurations.
