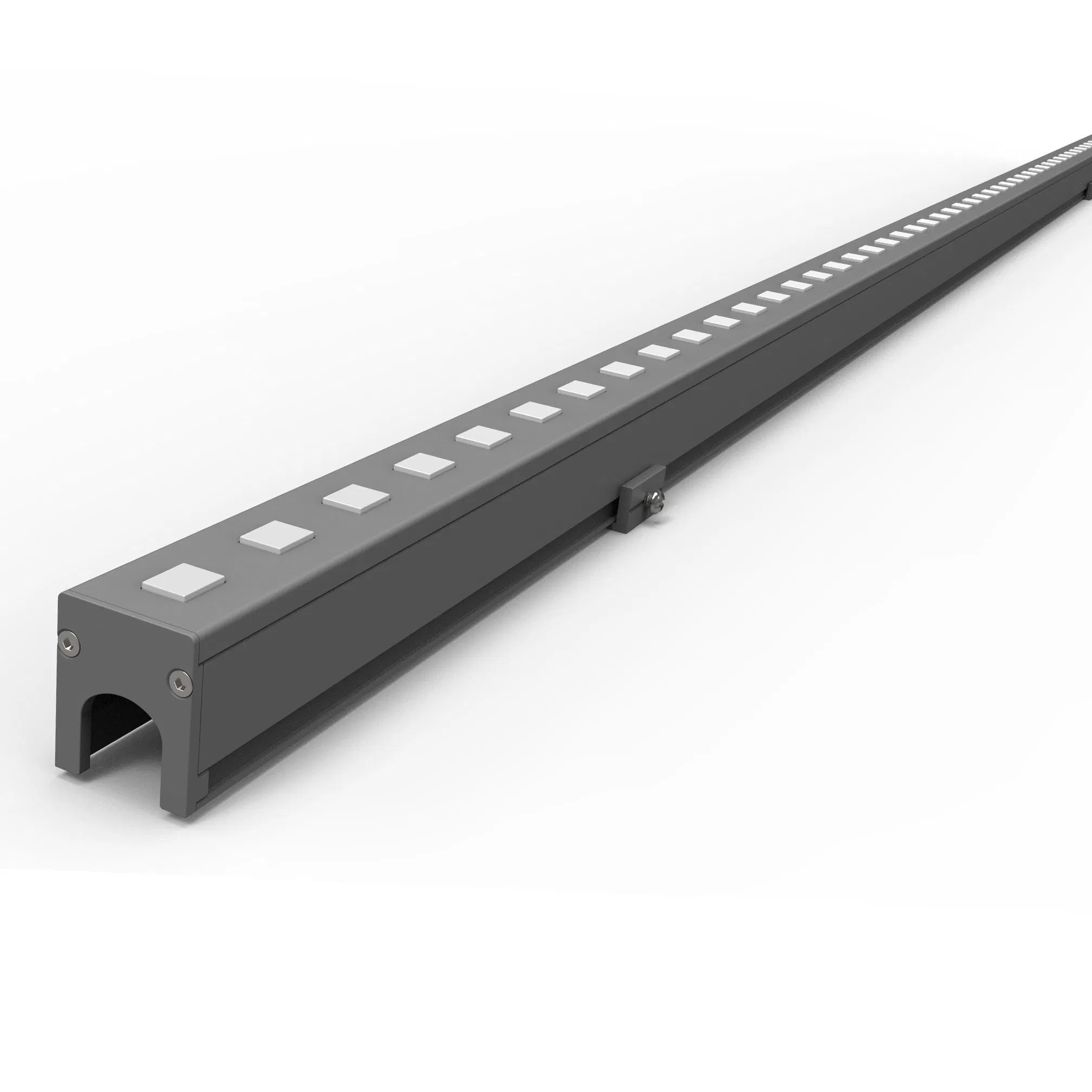

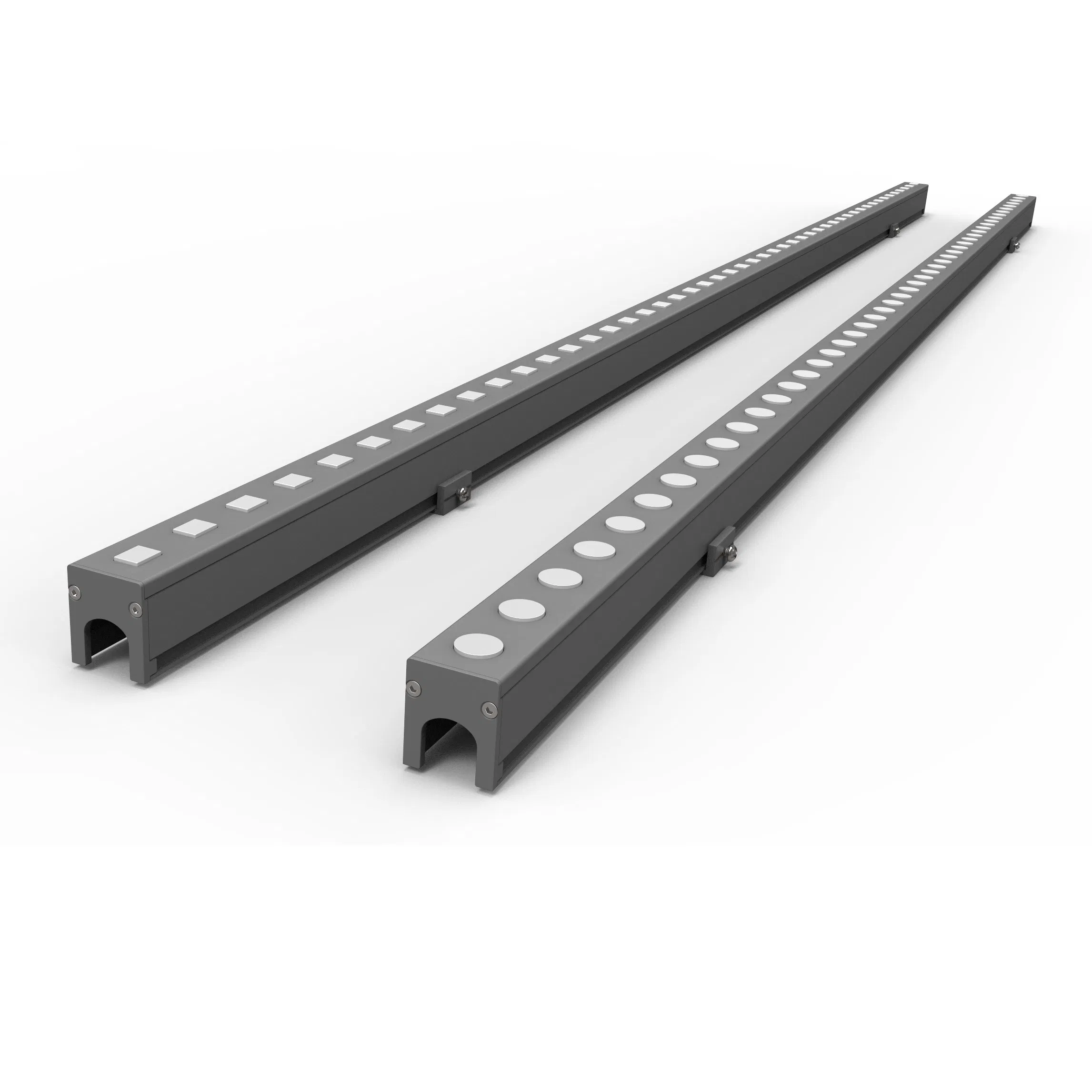

Pina Light
1 / 5
Working voltage: DC24V

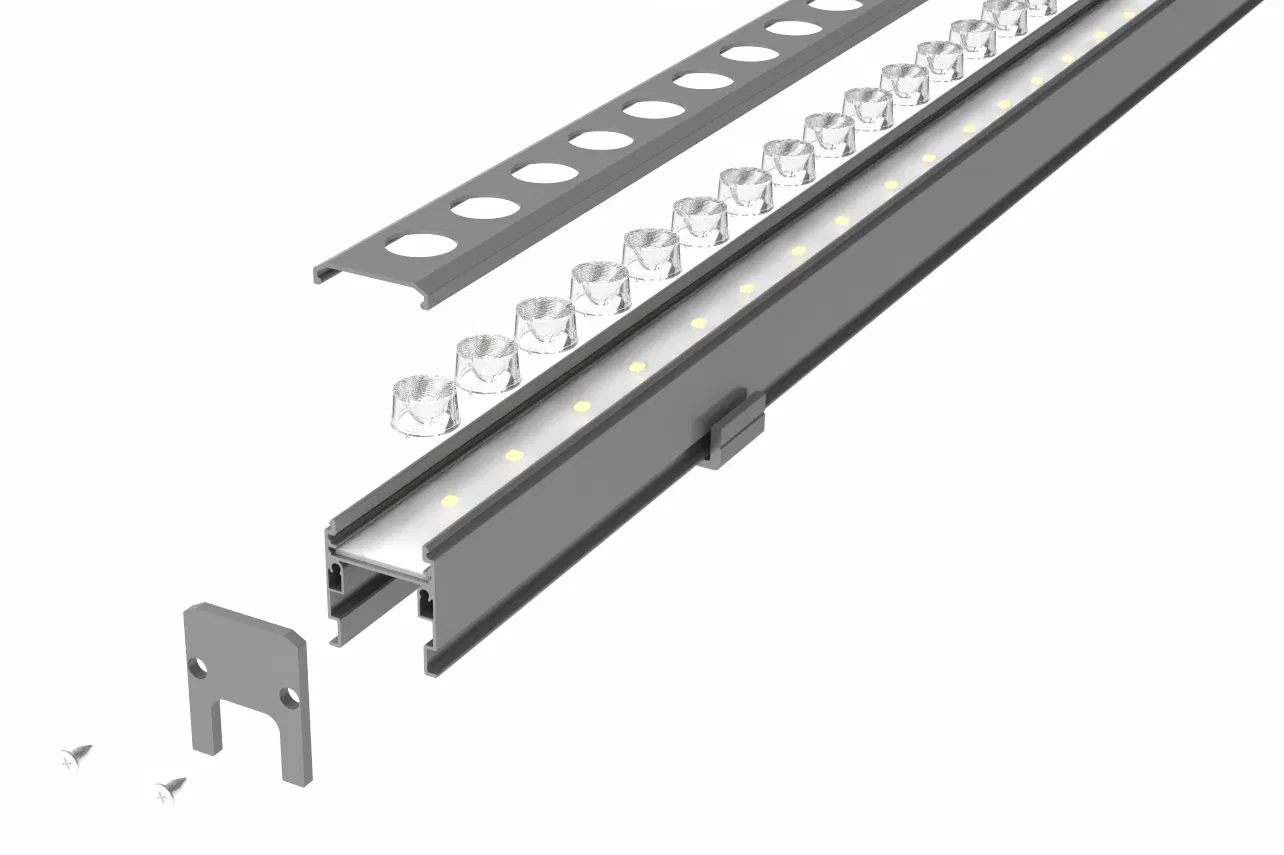

Shell Material: Stretch Aluminum
LED Chips: SMD2835 or 5050
Shell Color: Can be sprayed according to the curtain wall
Protection Level: IP65
LED Lifetime: 50000Hr
Control Mode: Monochrome constant brightness or DMX512
Beam Angle: 15°, 30°, 60°, 120°, 25*45°, 10*60° and more
Ambient Temperature: -35ºC±50ºC
Outgoing method: Center outgoing line
Line length: docking 106cm

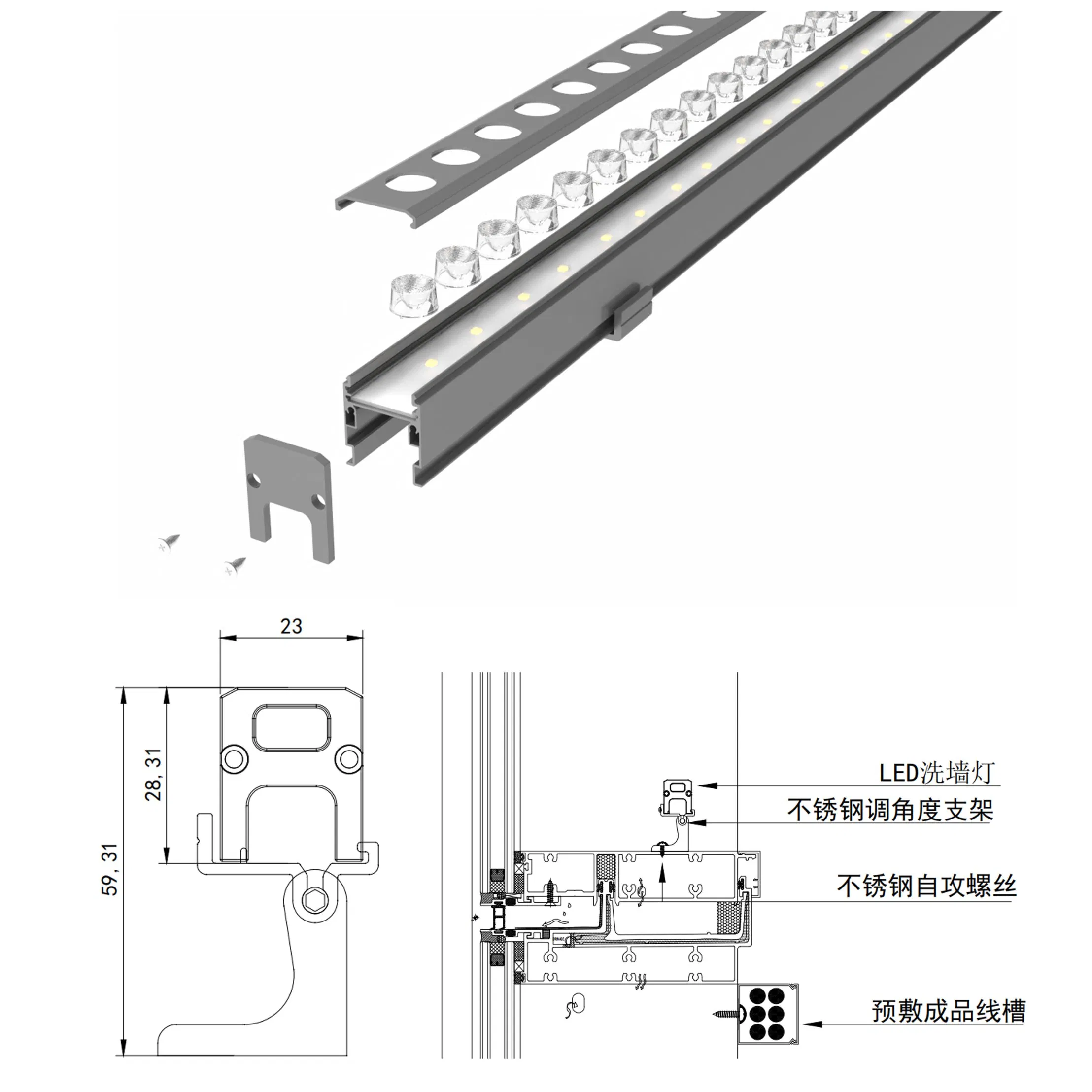

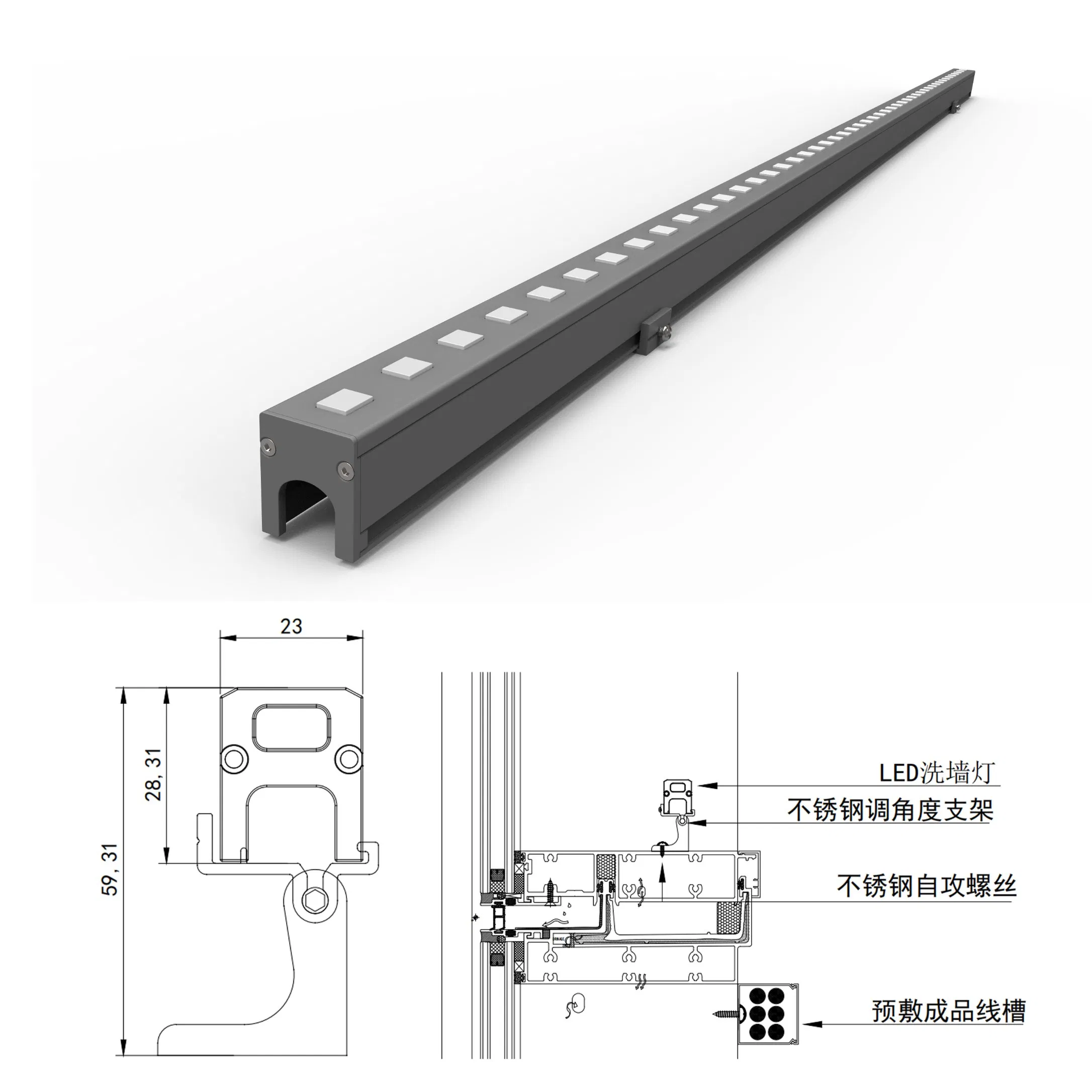

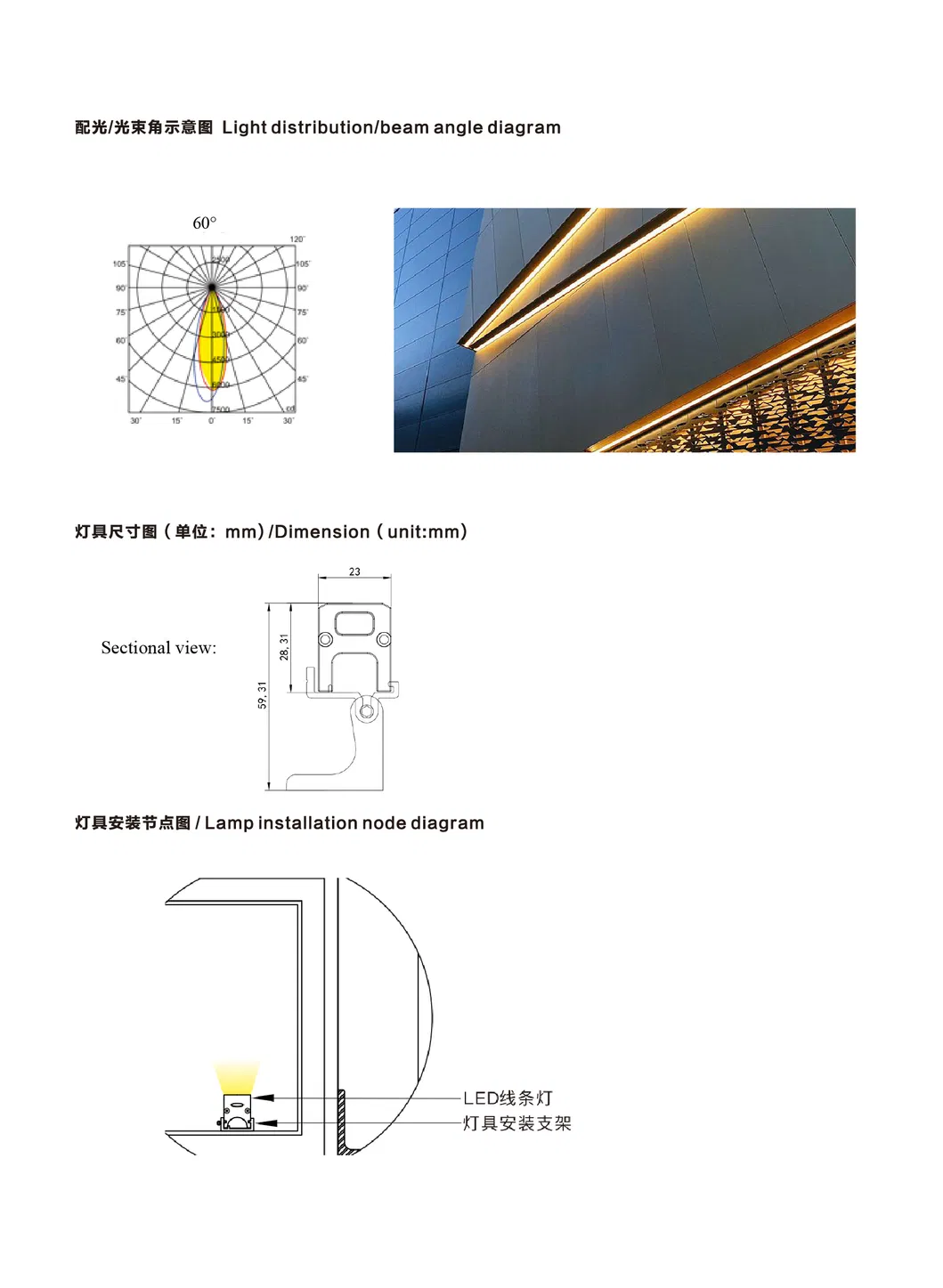

Product Size: 23*28.3*1000mm

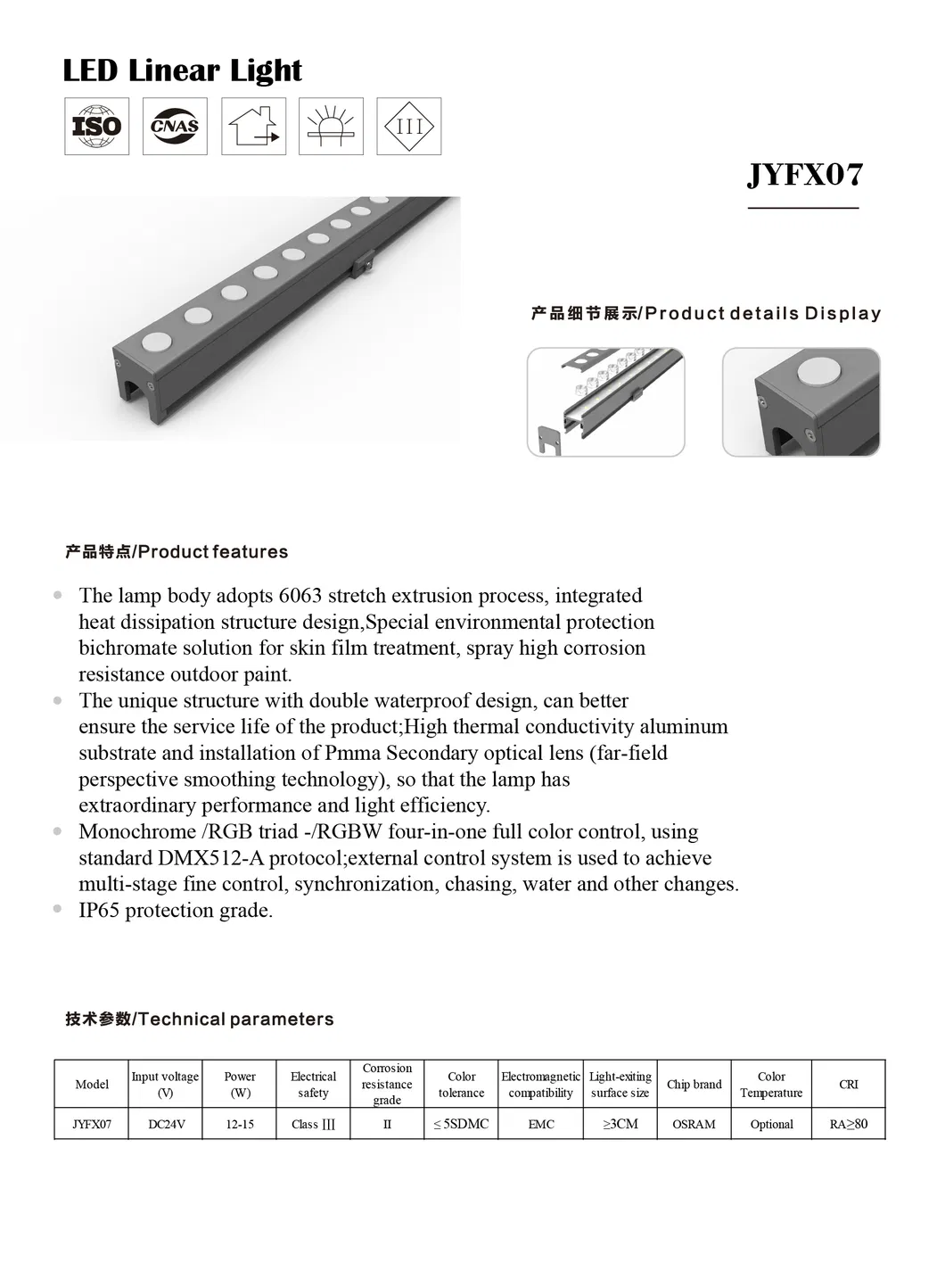

| Model | Input voltage (V) | Power (W) | Electrical safety | Corrosion resistance grade | Color tolerance | Electromagnetic compatibility | Light-exiting surface size | Chip brand | Color Temperature | CRI |
|---|---|---|---|---|---|---|---|---|---|---|
| JYFT07 | DC48V | 12-15 | Class III | II | ≤ 5SDMC | EMC | ≥3CM | Optional | Optional | RA≥80 |
The standard working voltage is DC24V. However, for model JYFT07, the input voltage is DC48V.
This product features an IP65 protection level, ensuring excellent protection against dust and water ingress, suitable for outdoor and demanding environments.
It supports Monochrome constant brightness control mode as well as the standard DMX512 control mode for dynamic color management.
The wall washer offers a variety of beam angles including 15°, 30°, 60°, 120°, 25*45°, 10*60°, and other custom options to suit different architectural requirements.
The high-quality SMD2835 or 5050 LED chips are rated for a lifetime of up to 50,000 hours of continuous operation.
The shell is constructed from durable Stretch Aluminum. The exterior finish and color can be custom sprayed to perfectly match the design of the curtain wall.
