Parameters
| Product |
MF-UFO-H100W |
MF-UFO-H150W |
MF-UFO-H200W |
MF-UFO-H240W |
| Nominal Wattage |
100w |
150w |
200w |
240w |
| Number of LEDs |
210pcs(2835) |
300pcs(2835) |
375pcs(2835) |
430pcs(3030) |
| LED Type |
Lumiled |
Lumiled |
Lumiled |
Lumiled |
| Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
| Dimming |
1-10V /DALI Dimming |
1-10V /DALI Dimming |
1-10V /DALI Dimming |
1-10V /DALI Dimming |
| Operating Temperature |
-35ºC ~ 50ºC |
-35ºC ~ 50ºC |
-35ºC ~ 50ºC |
-35ºC ~ 50ºC |
| Power Factor |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
| THD |
<10% |
<10% |
<10% |
<10% |
| Lumens Flux |
15000±5% LM |
22500±5% LM |
30000±5% LM |
36000±5% LM |
| Luminaire Efficacy |
140±5% LM/W |
140±5% LM/W |
140±5% LM/W |
140±5% LM/W |
| CRI |
>80 |
>80 |
>80 |
>80 |
| CCT |
3000-6500K |
3000-6500K |
3000-6500K |
3000-6500K |
| Rating |
IP66 IK08 |
IP66 IK08 |
IP66 IK08 |
IP66 IK08 |
| Lifetime |
>50,000h |
>50,000h |
>50,000h |
>50,000h |

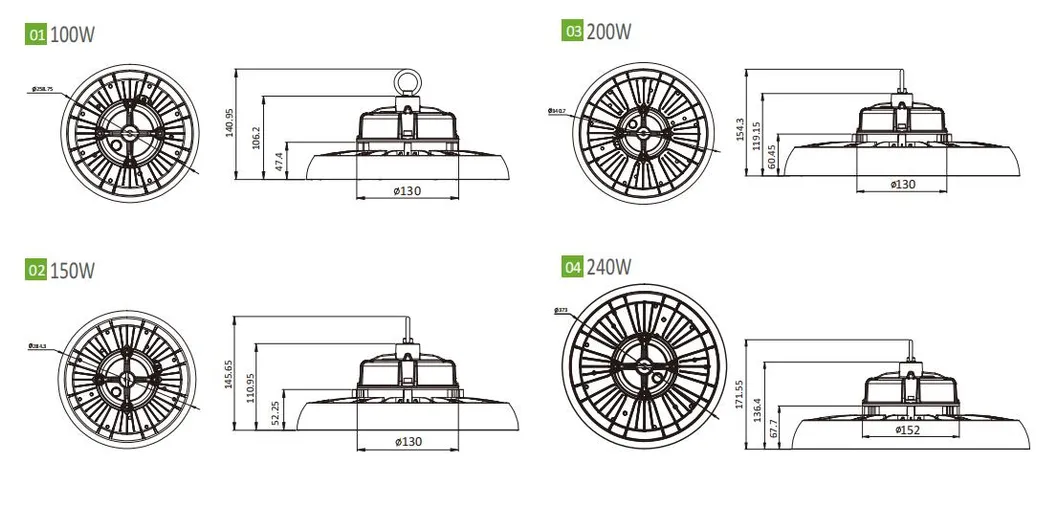

| Size |
270*149mm |
300*158mm |
330*164mm |
330*164mm |
| N.W |
2.50kg |
2.80kg |
4.00kg |
4.10kg |
| G.W |
2.90kg |
3.40kg |
4.65kg |
4.75kg |
| Certifications |
ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CCC |
Description

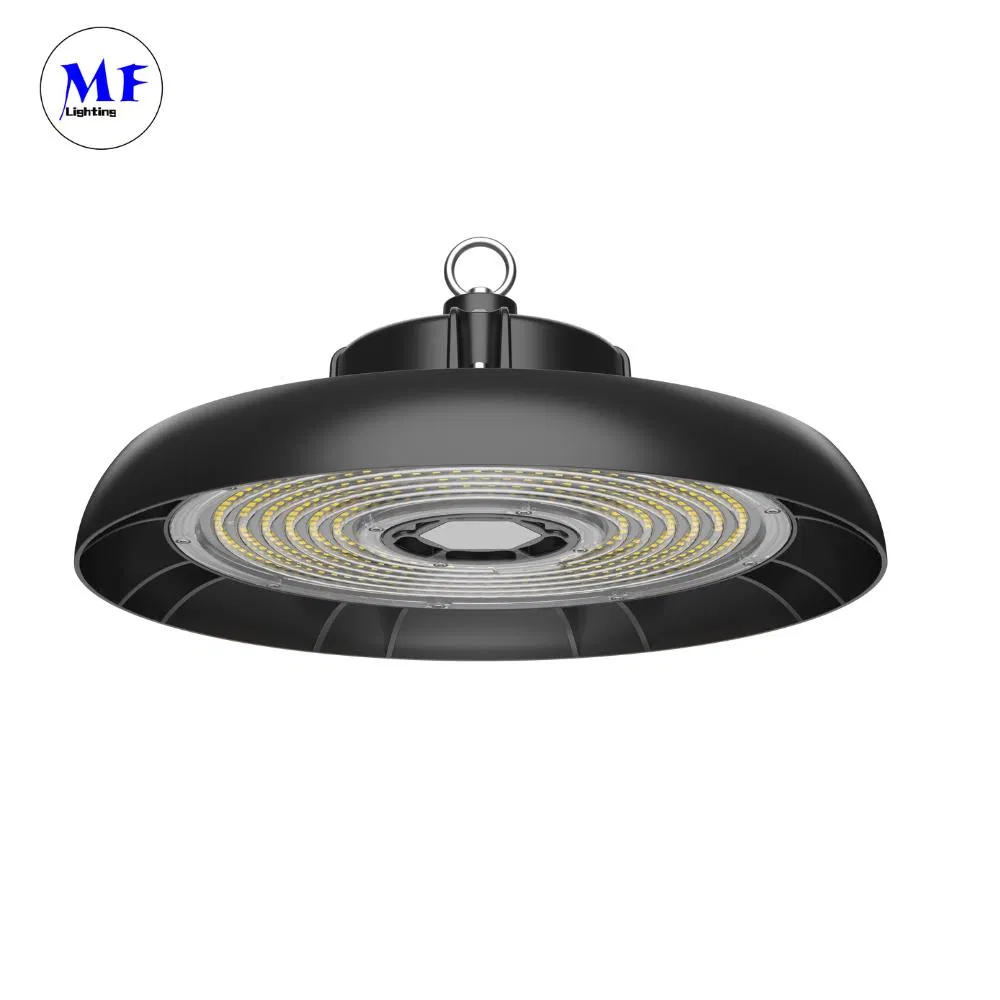

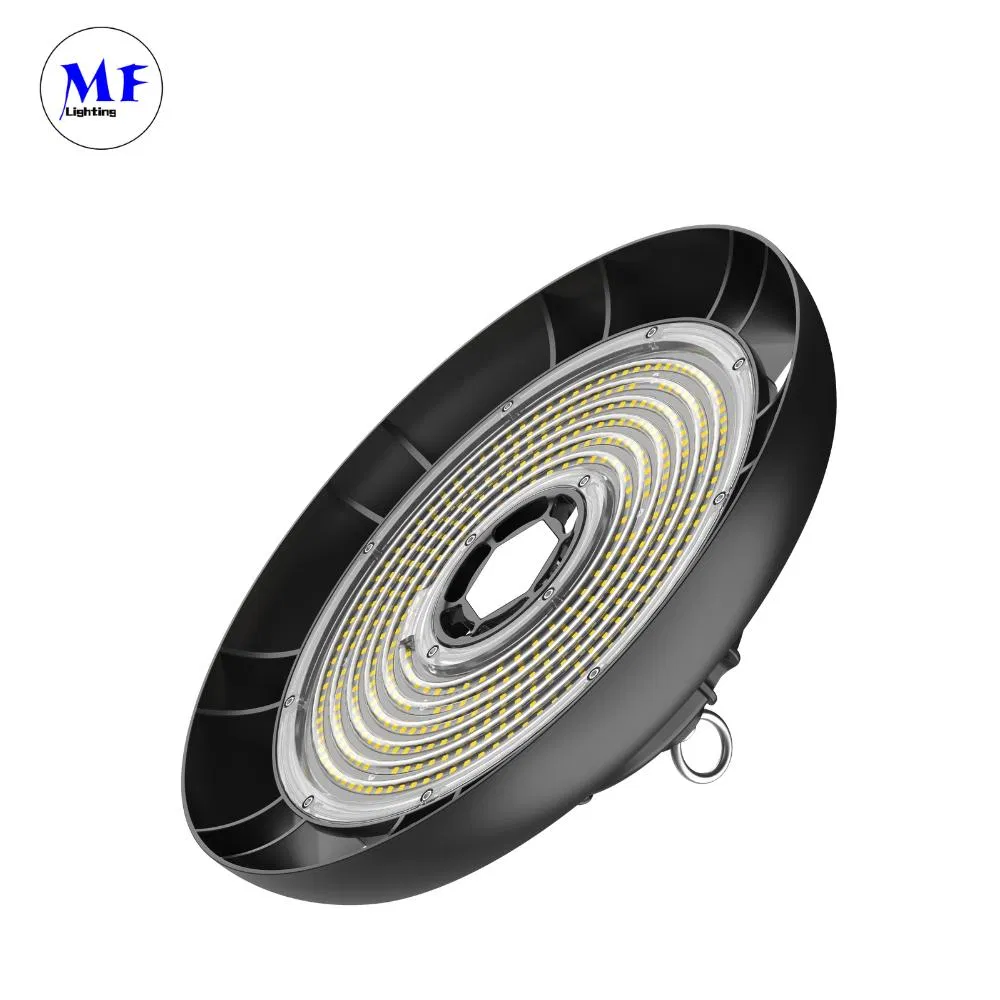

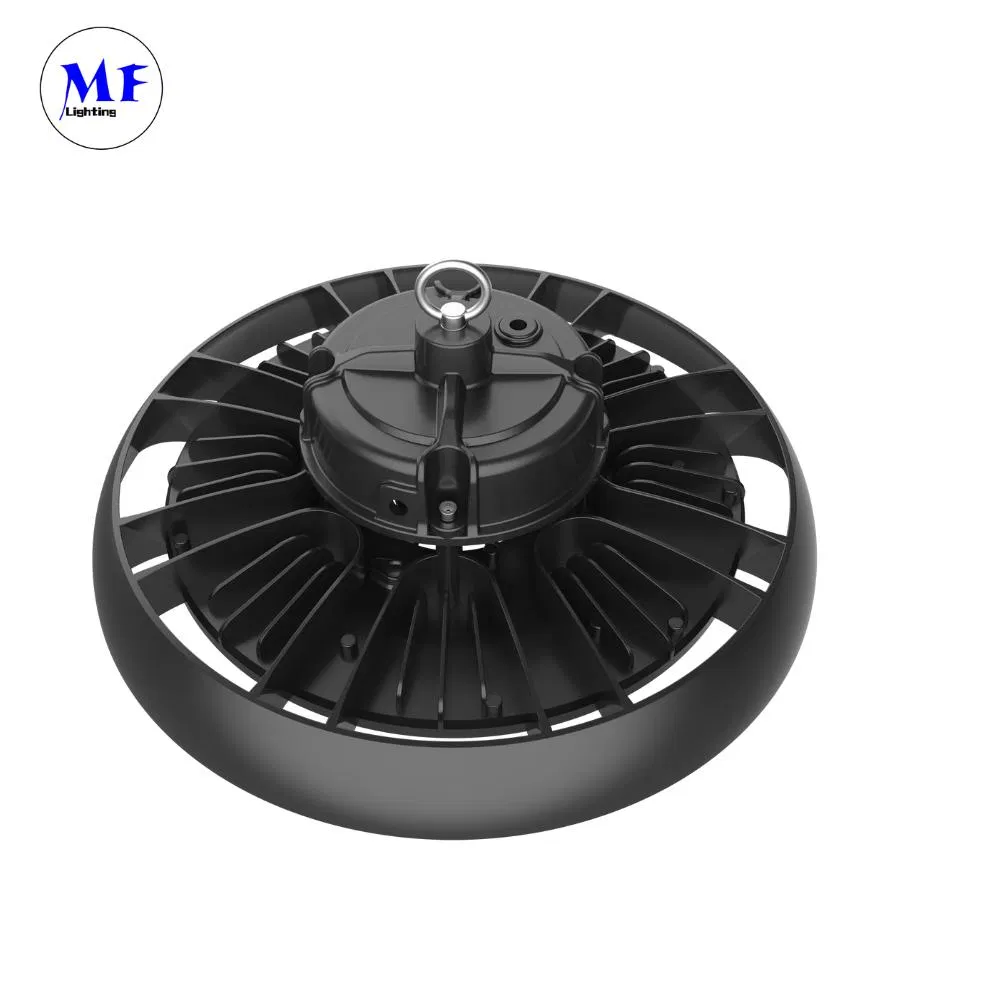

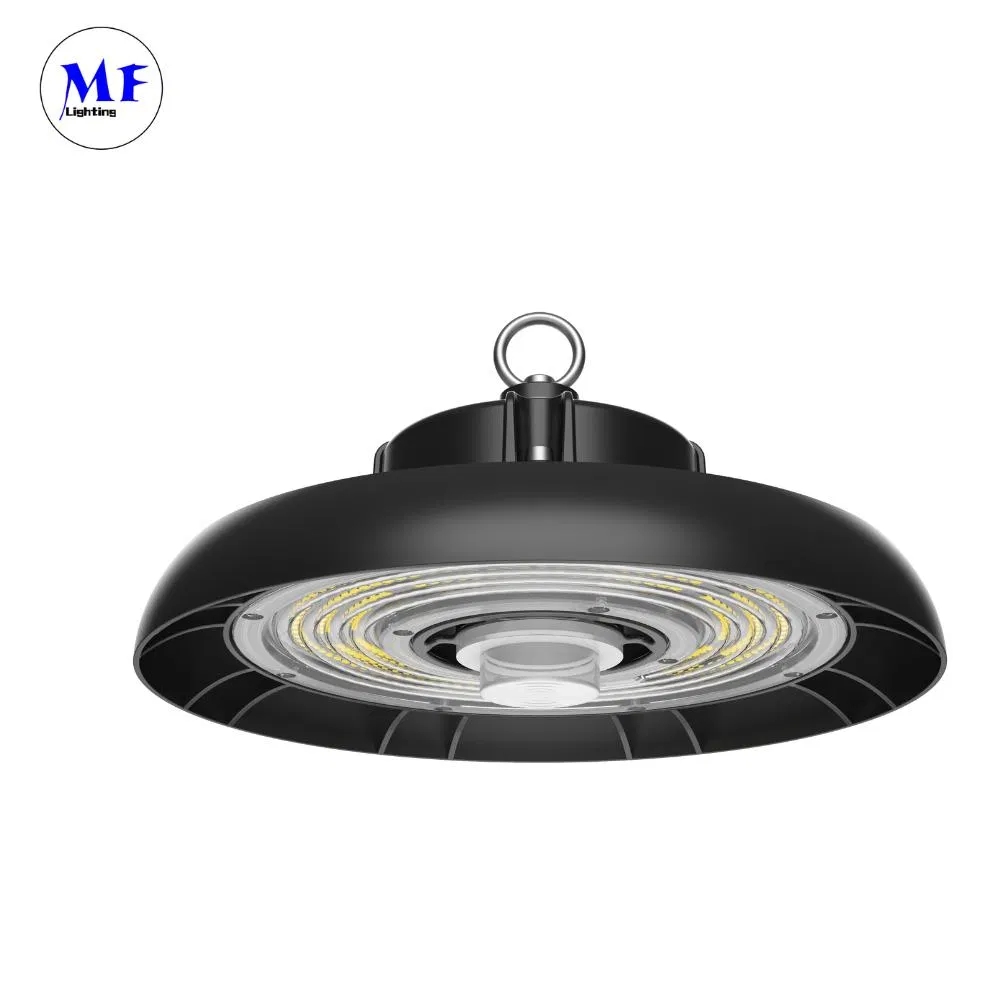

LED Elegant High Bay Light is designed with a focus on both durability and ease of installation. Made with ADC12 die-casting technology, this fixture is impact resistant and has excellent thermal management to reduce temperature differences and ensure long-lasting performance. The high strength polycarbonate lens achieves IK08 and has anti-UV properties with a transmission rate of over 94%. With multiple mounting options, including pendant and loop, this light can fit a variety of settings. The LED chip and driver are from top brands, ensuring quality and a long lifetime. The product has an Ingress Protection Rating of IP66 and operates in temperatures ranging from -35°C to +50°C. This high bay light comes in 100W, 150W, 200W, and 240W options and offers a variety of color temperatures including 3000K, 4000K, 5000K, and 5700K, with a CRI of >80. With lighting distributions of 60°/90°/120° and amazing efficiency of up to 190lm/W, this LED high bay light is the perfect choice for your lighting needs.
Features
- Lightweight, impact resistant fixture is designed for easy and safe installation.
- Die-casting technology by ADC12, excellent thermal management, reduce the temperature difference and ensure the lumen depreciation.
- Multiple mounting options for a variety of applications, Pendant, loop.
- High strength polycarbonate lens, achieve IK 08, Anti-UV, transmittance > 94%.

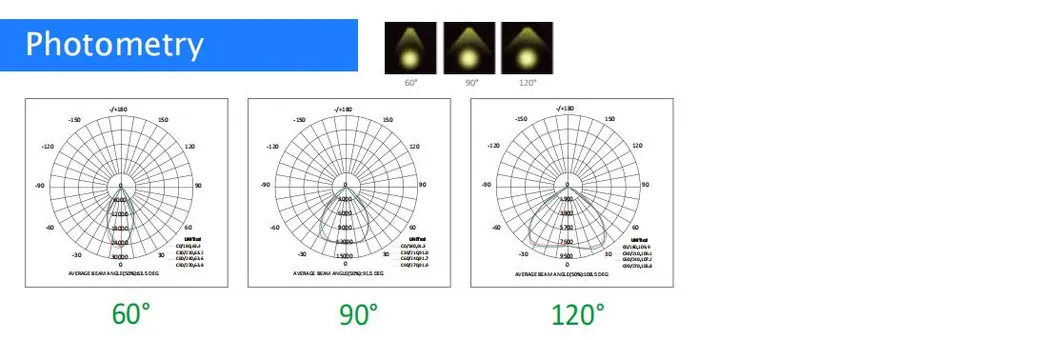

- Multiple lighting distributions: 60°/90°/120°.
- Top brand LED chip and driver, ensure the product quality and lifetime.
- Ingress Protection Rating: IP66.
- Operation Temperature: -35ºC-+50ºC.
- Up to 140lm/W; 170lm/W; 190lm/W.
- 3000K, 4000K, 5000K, 5700K color temperature.
- CRI >80.
- Offered in 100, 150, 200 and 240W.

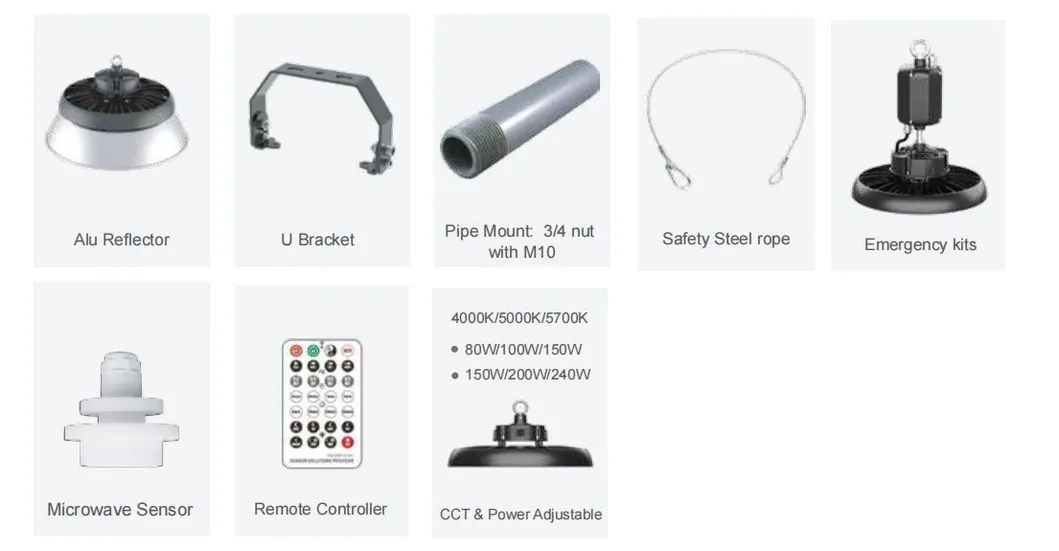

Options

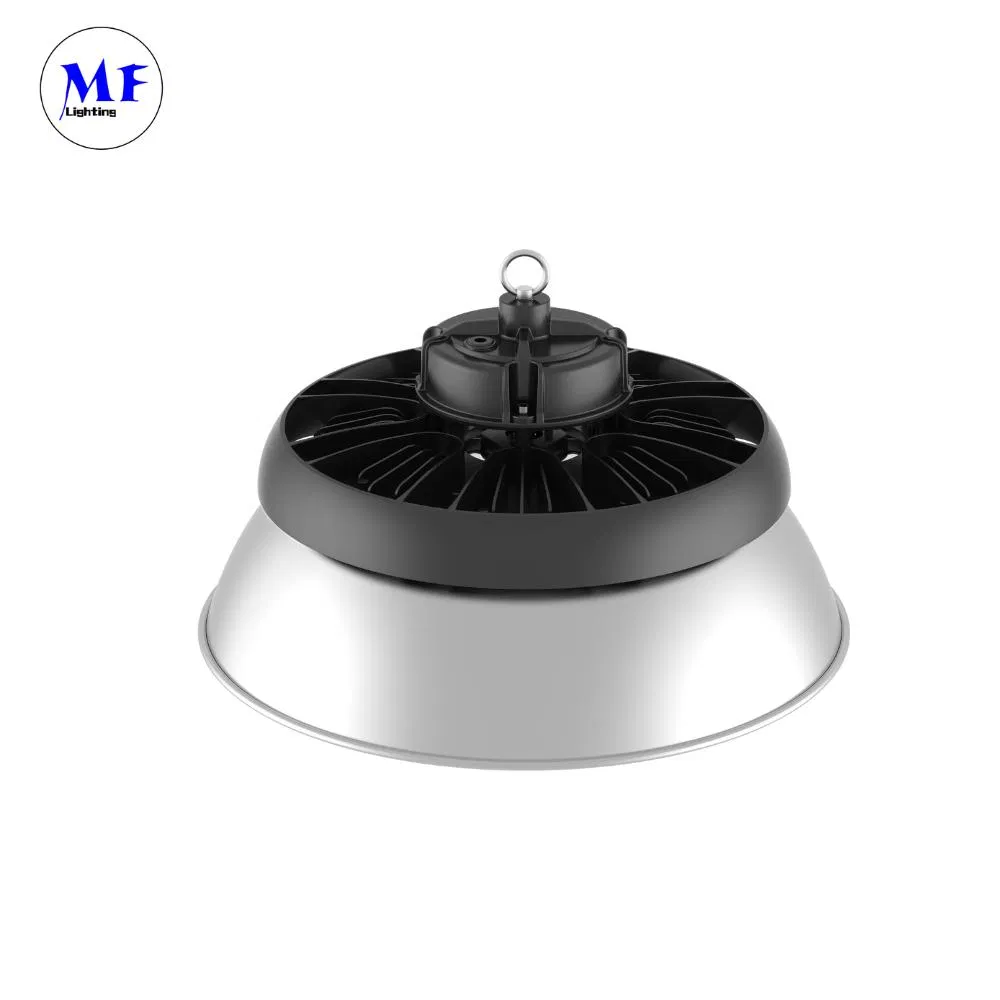

- Aluminum Reflector
- 1-10V /DALI Dimming

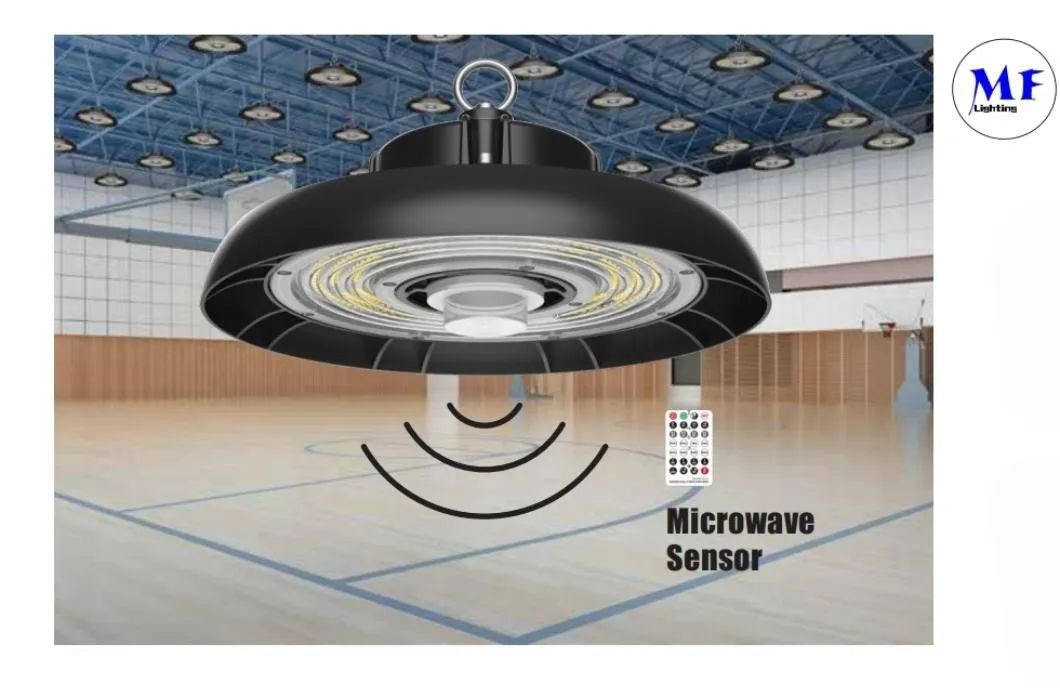

- Microwave Sensor
- Emergency Kits
- 60/90/110 degree lens
- Adjustable mounting bracket
- Safety Steel Rope
- CCT & Power Adjustable
Accessories
Certifications
ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CCC Certified.

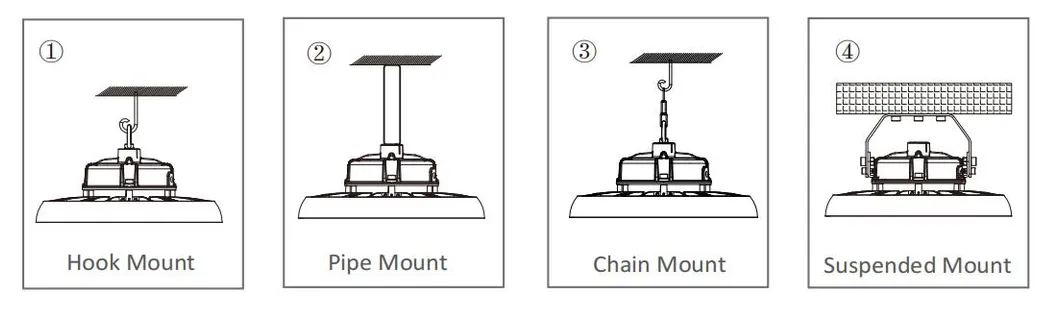

Installation Instructions
Please install this light fixture according to the installation instructions.

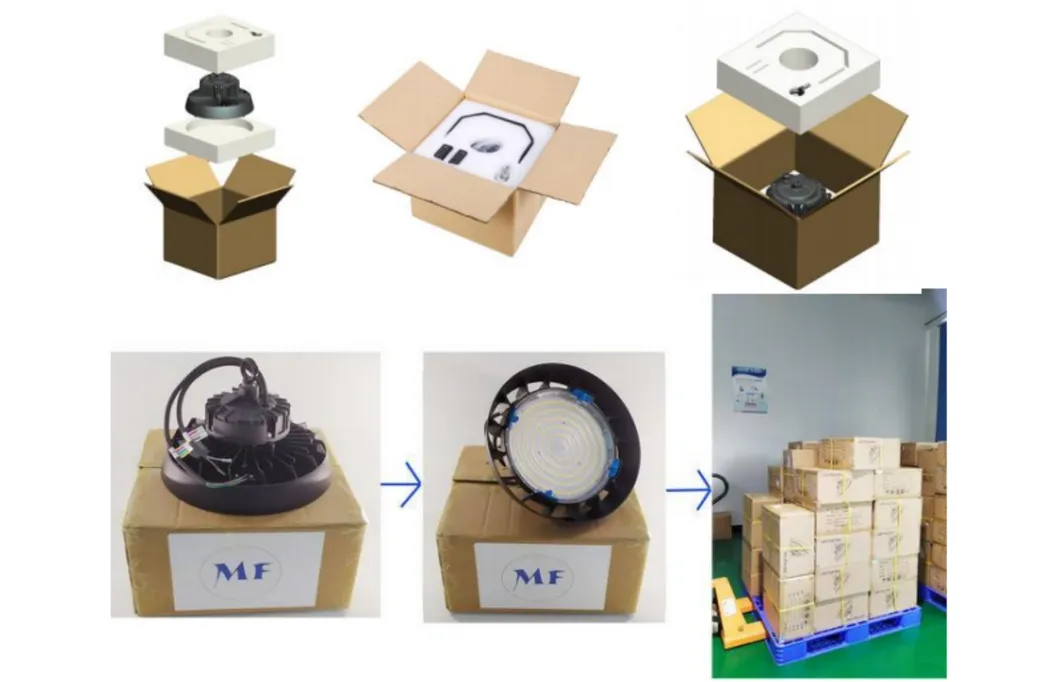

Packing Details
- 1pcs LED High bay light.
- 1pcs product user manual.

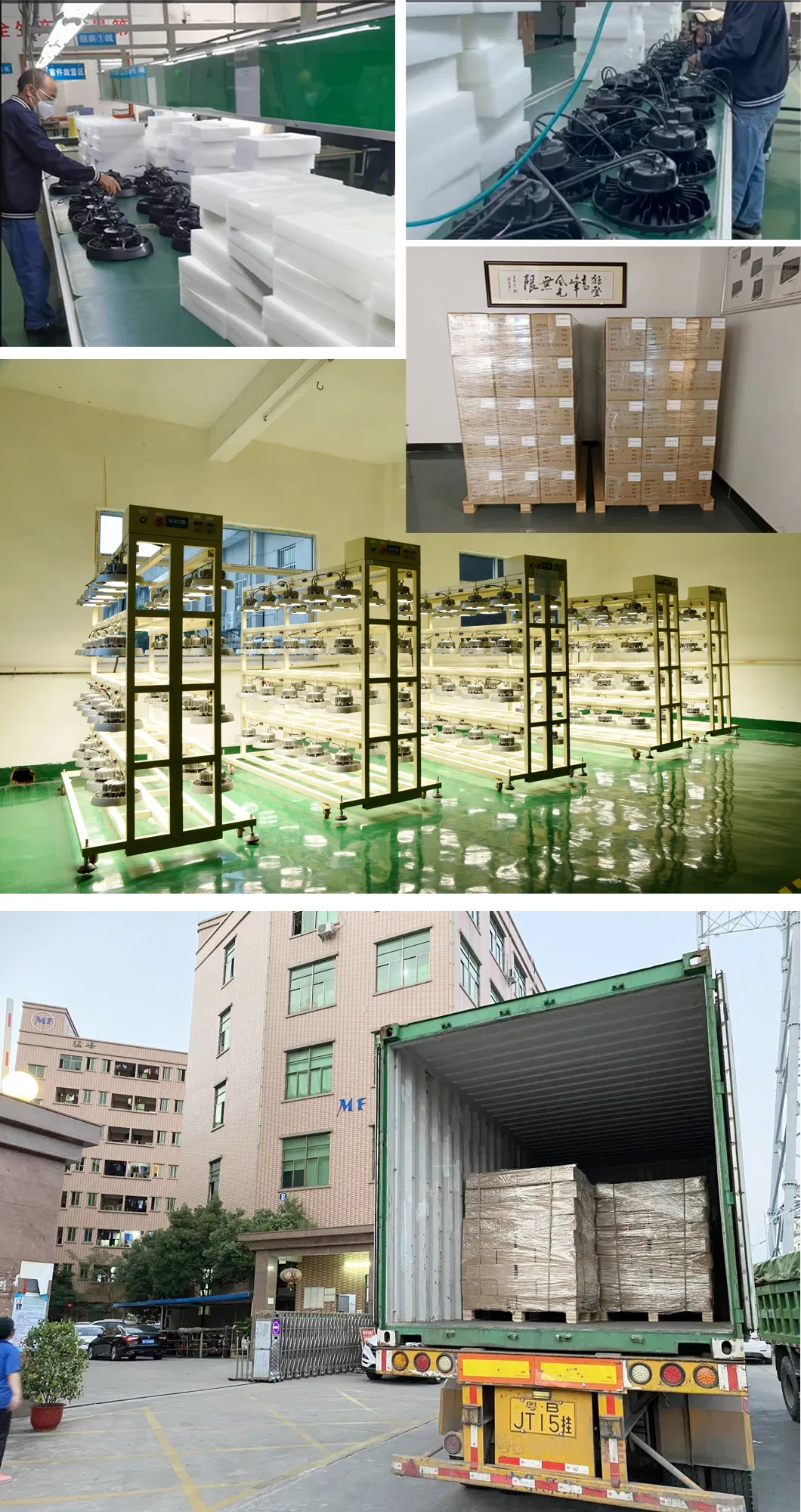

Fast Delivery
We understand that shipment is an important aspect of our business. We take great care to ensure that our products are packaged securely and shipped in a timely manner. We work with reliable shipping companies to ensure that our products arrive at their destination safely. We also provide tracking information so that our customers can monitor their shipment's progress. Our goal is to provide a worry-free shipping experience for our customers, so they can focus on their business.

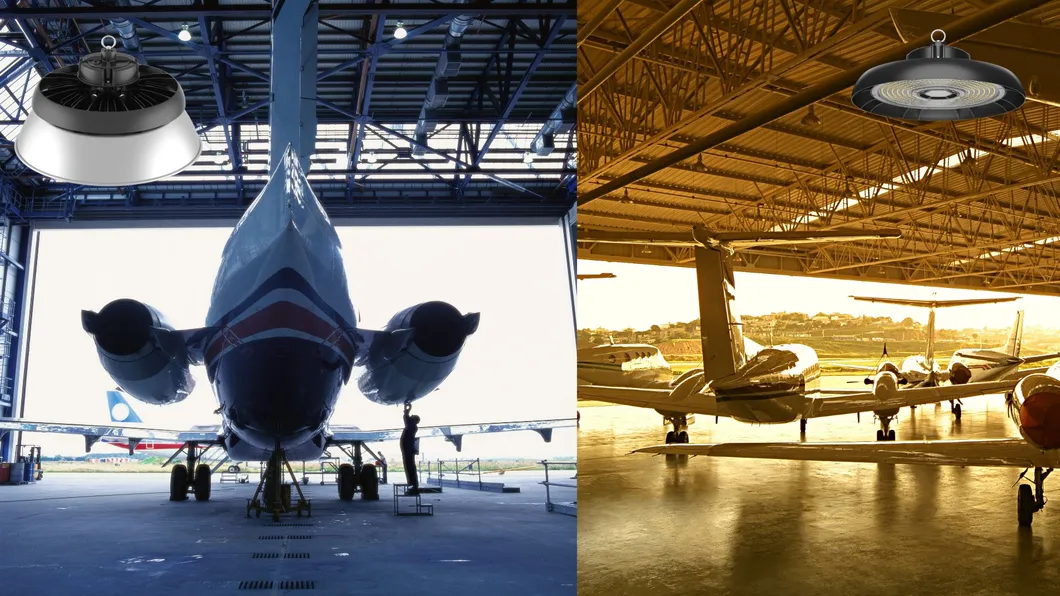

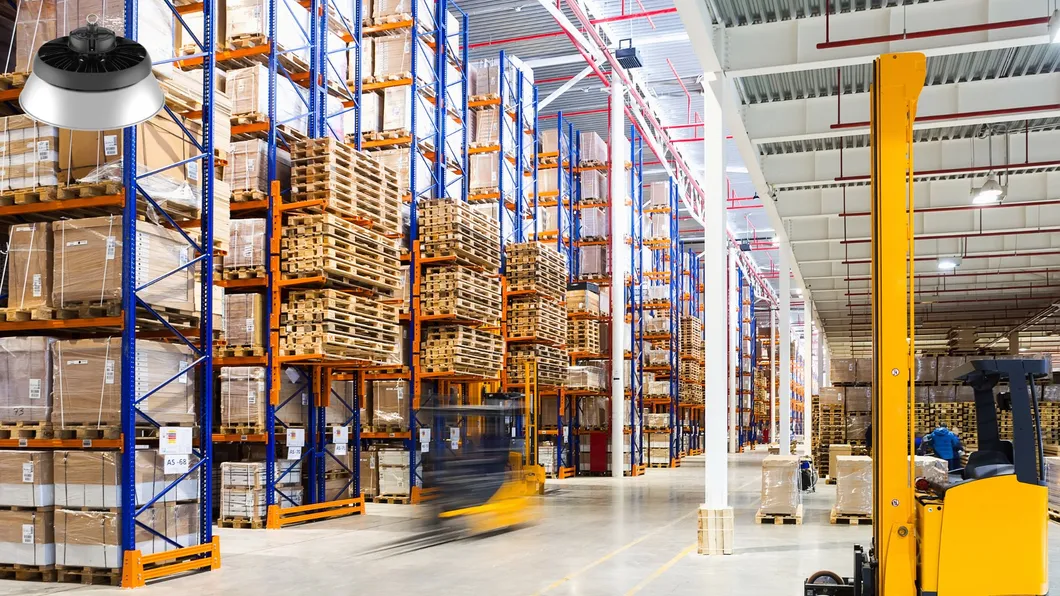

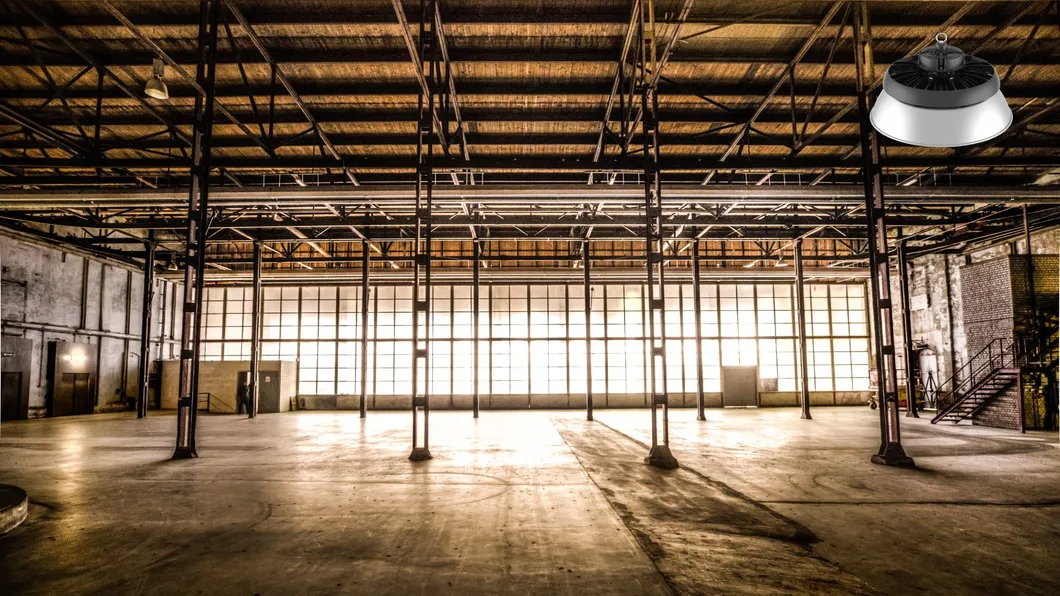

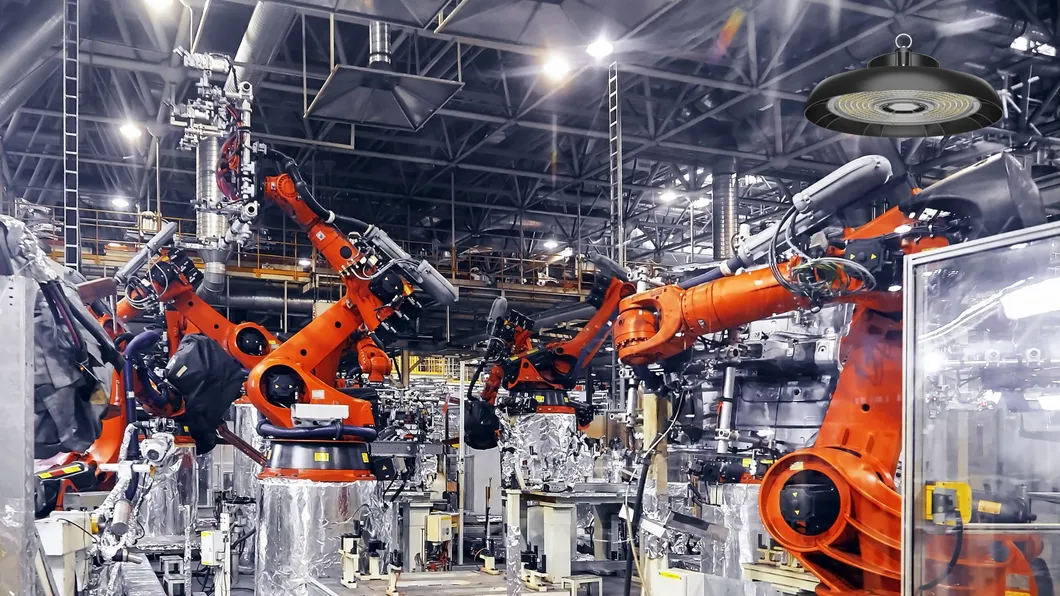

Applications

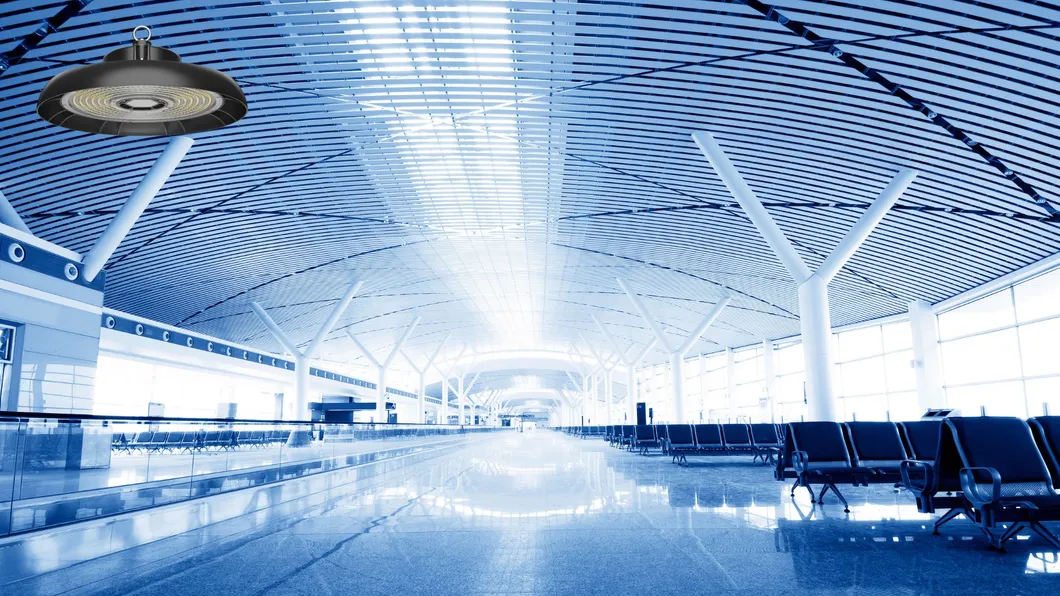

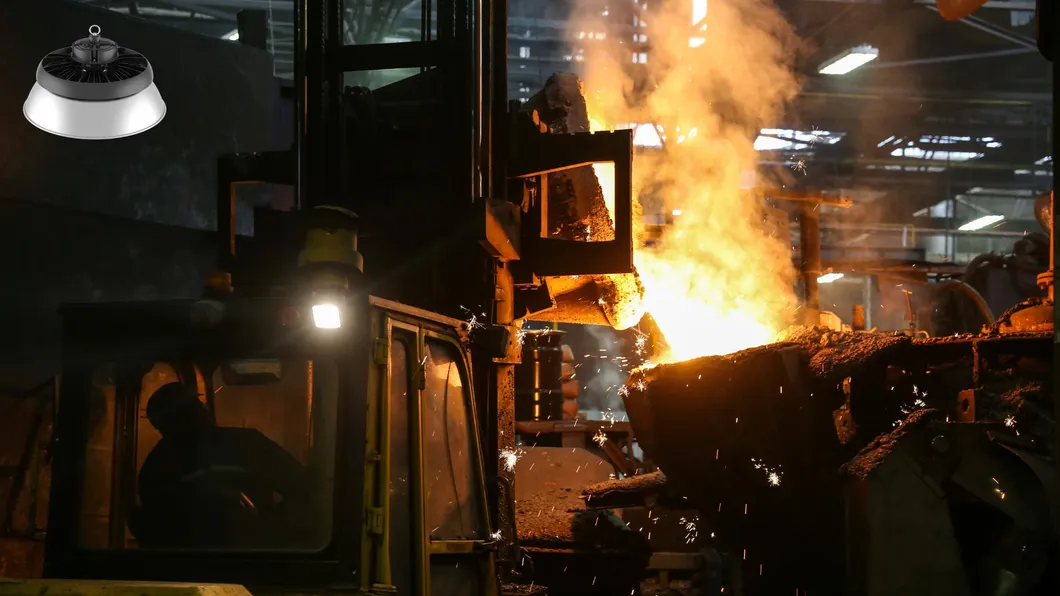

High bay lights are used in large spaces with high ceilings, such as warehouses, factories, gymnasiums, and retail stores to provide bright, uniform illumination over a large area. They are also used in parking garages.
Customer Review
In the past, we had customers visit our factory and we always welcome them to do so. We take pride in our state-of-the-art manufacturing facilities and are always happy to show our customers around and provide them with a firsthand look at our production processes. Whether you are a new or existing customer, we believe that visiting our factory is a great way to build trust and establish a long-term business relationship. So if you are interested in seeing our facilities and learning more about our products and services, please don't hesitate to contact us and schedule a visit. We look forward to meeting you in person and showing you what sets us apart from the competition.
Our products and services are highly favored by customers.
Frequently Asked Questions
What do you sell?
We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Is it OK to print my logo on led light product?
Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
How to deal with the faulty?
During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
How long time to ship the goods if place an order?
Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
What mounting options are available for the LED High Bay Light?
There are multiple mounting options available for a variety of applications, including pendant and loop mounting.
