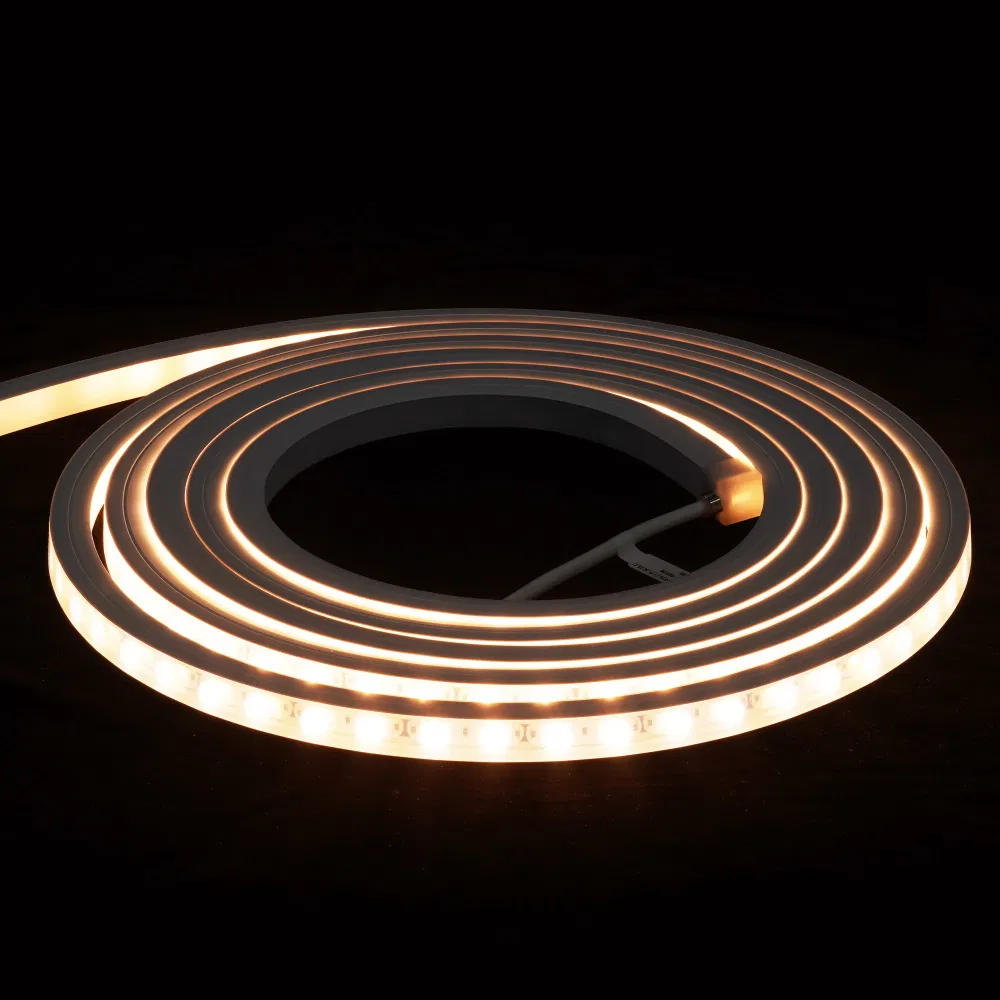

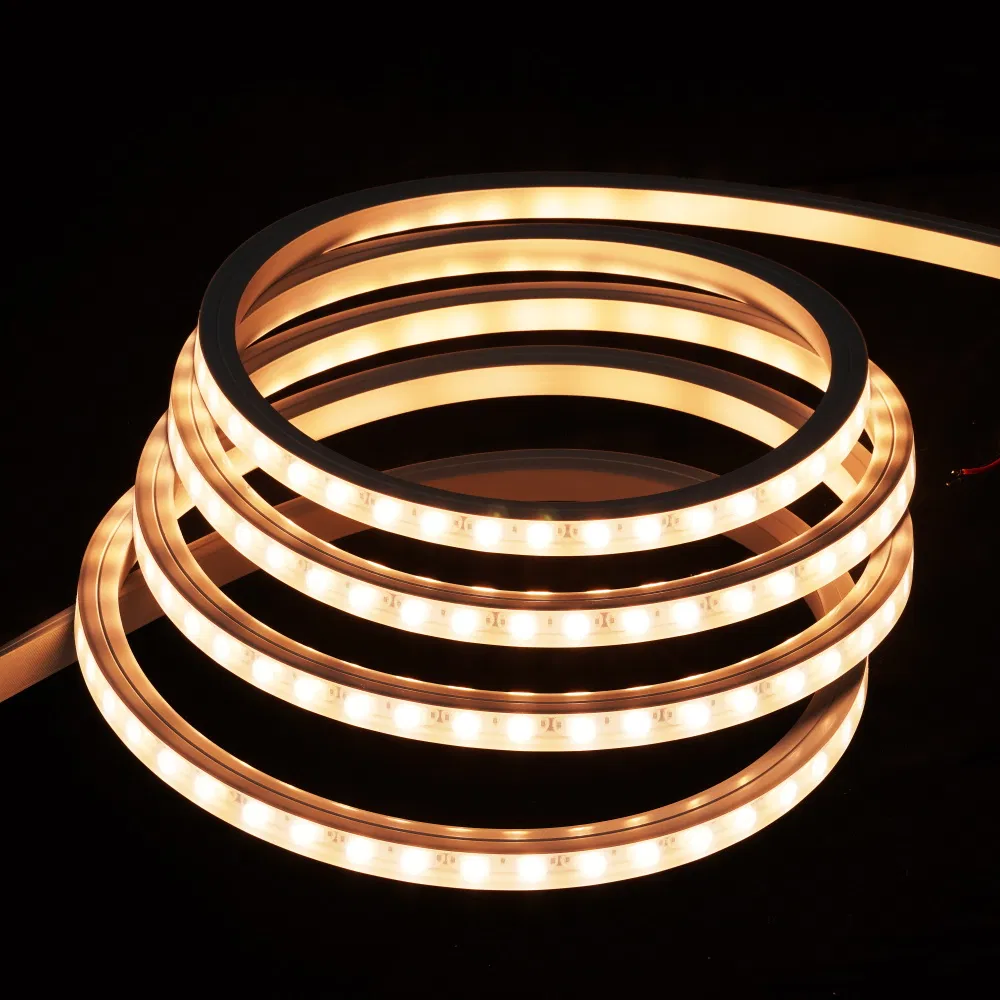

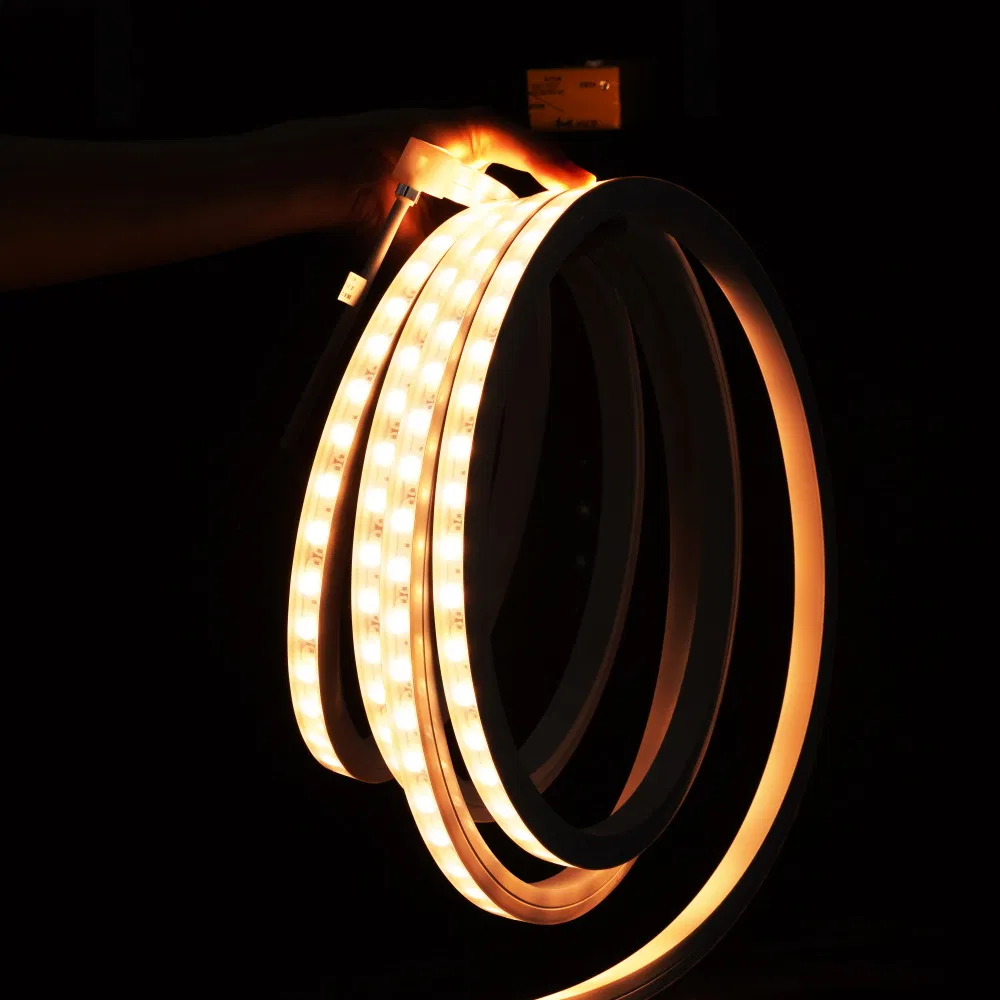

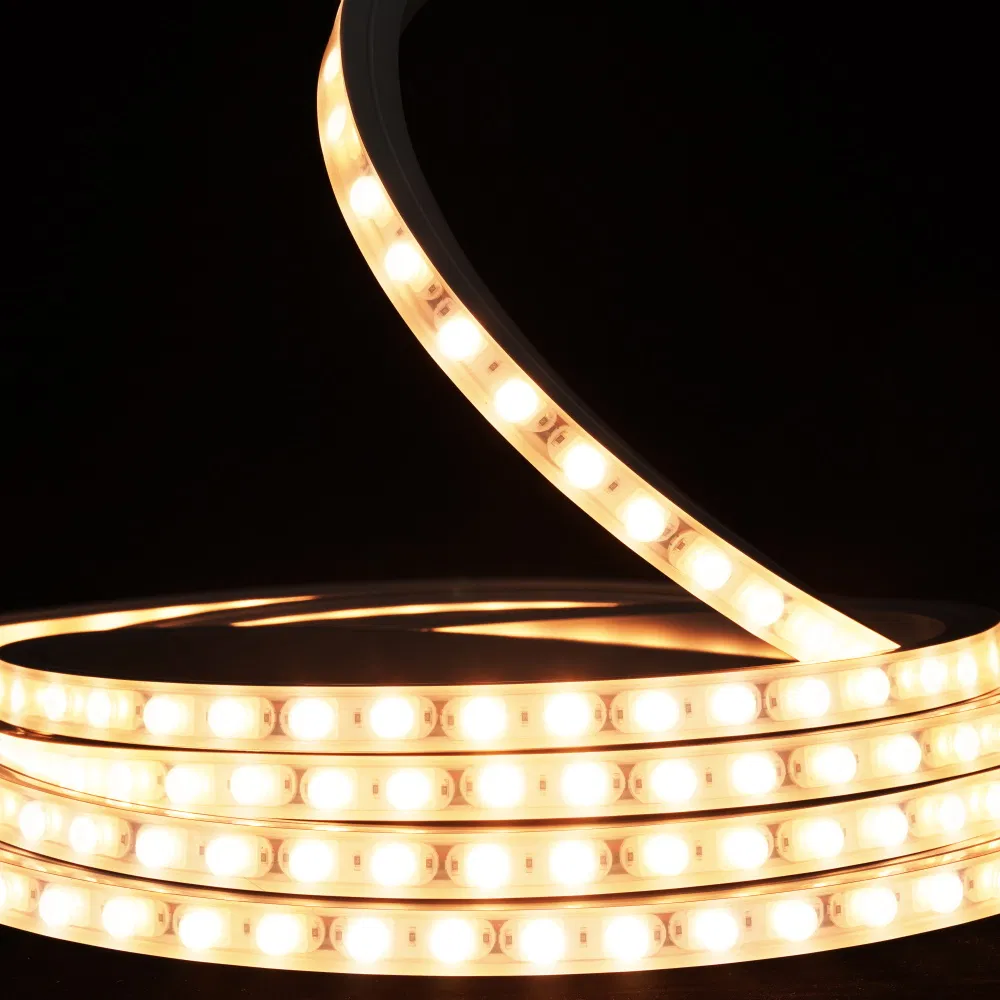

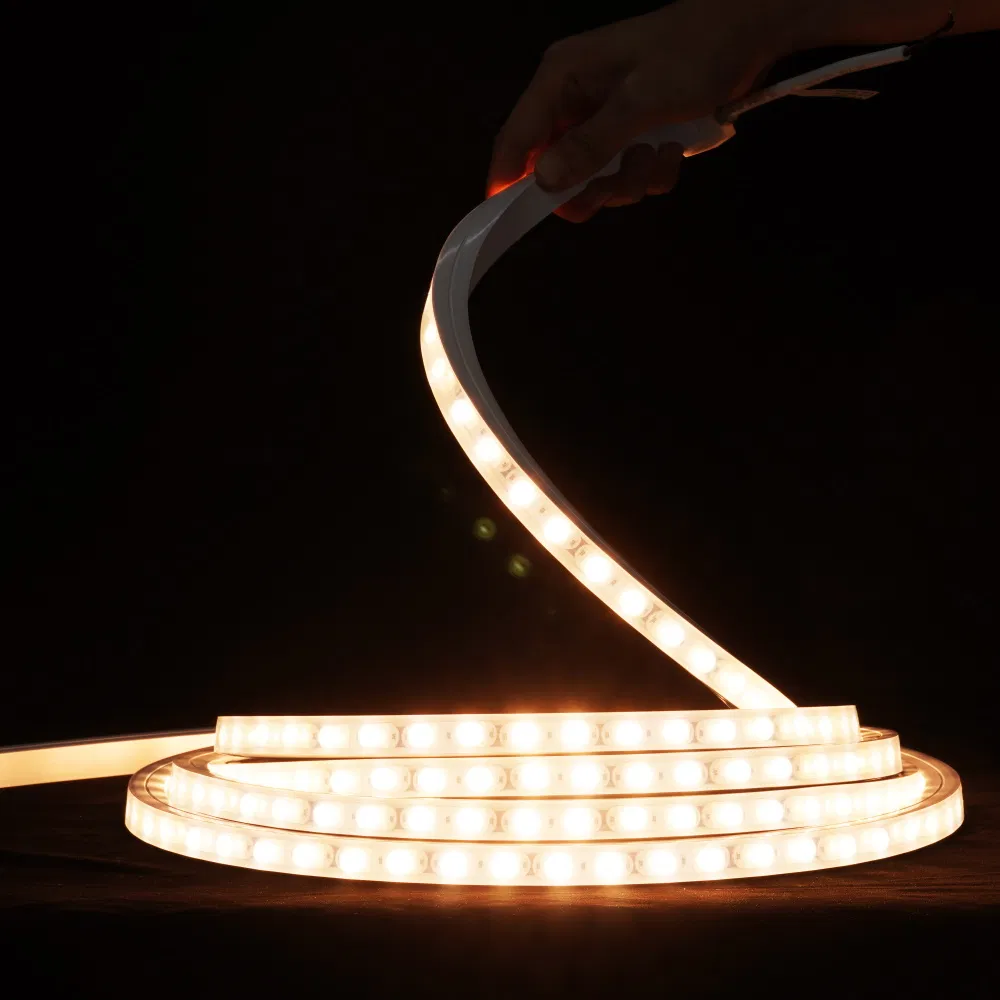

Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
1 / 5
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof

Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof

Customization: Available
Emitting Color: Warm White
Power: 20W
Send Inquiry

Product Description

Basic Info.

Model NO.
ATA-WA24W22S42XX
IP Rating
IP68
Diffuser
PMMA Lens
Beam Angle
60°
Lifespan
50000 hours
Warranty
3 Years
Electric Current Type
DC
Input Voltage
24V
Luminous Efficiency
130lm/W
CRI
Ra>80 to Ra>98
Material
Silicone, FPCB, PMMA Lens
Bending Type
360° Bending

Product Description

Flexible LED Wall Washer CRI90 DC24V 2835 48leds/m 20W 20mm Outdoor IP67 Waterproof

💡 Innovation Technology
Improved from traditional aluminum heavy wall washers, utilizing an integrated extrusion injection molding process for superior waterproof performance.
🛡️ High Protection
Works perfectly in rain, sleet, and snow weather. Ideal for narrow spaces with its slim, 360° bendable structure.
✨ Versatile Lighting
Widely used for indoor/outdoor decoration, signage, and architecture. Safe, energy-saving, and easy to transport compared to glass neon.

Product Advantages

  • Narrow beam angle for textured walls and architecture.
  • Adopt PMMA lens and anti-UV silicone material with good flame retardant performance.
  • Uniform and soft luminance, no light spots or shadows.
  • Food-grade silicone: impact resistant, corrosion-resistant, and anti-yellowing.
  • Environmentally friendly: lead-free SMT technique, no heat radiation or mercury.

Technical Specifications

Product NameLED Flexible Wall Washer
Item NumberATA-WA16W16S48XX
Product Width13mm, 16mm, 17mm, 22mm, 25mm, 28mm
LED Light Source3030 / 3535 / 2835 SMD LED
Viewing Angle15, 20, 25, 30, 35, 45, 60, 30*45, 20*45, 15*60 degrees
Working VoltageDC12V, DC24V, DC48V, DC5V, AC110V-240V
Emitting ColorWhite, RGB, RGBW, CCT, DMX Digital, Dream Color, etc.
IP GradeIP66, IP67, IP68
Working Temperature-20°C to +60°C
CertificationTUV, VDE, GS, SAA, FCC, CE, RoHS, LVD, EMC, FDA, PSE

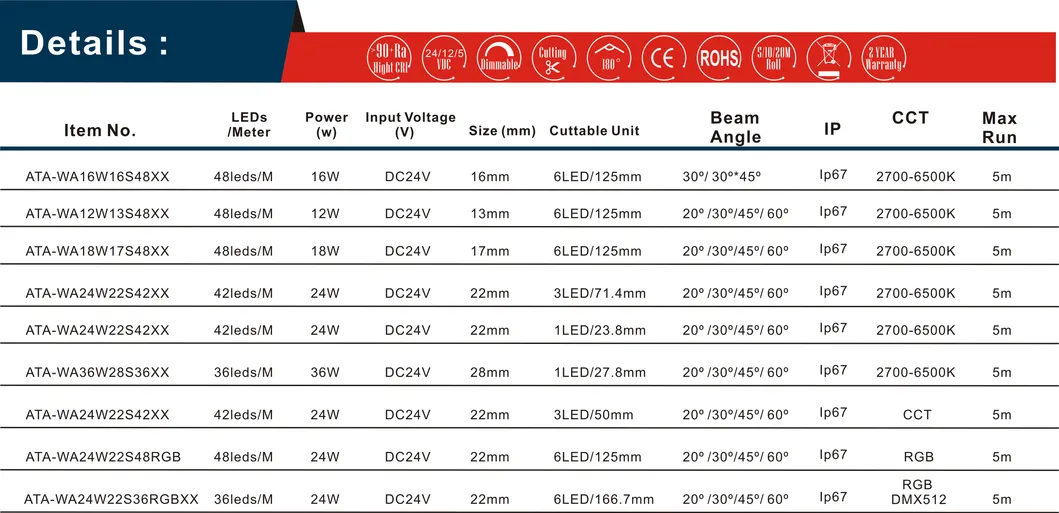

Flexible LED Wall Washer

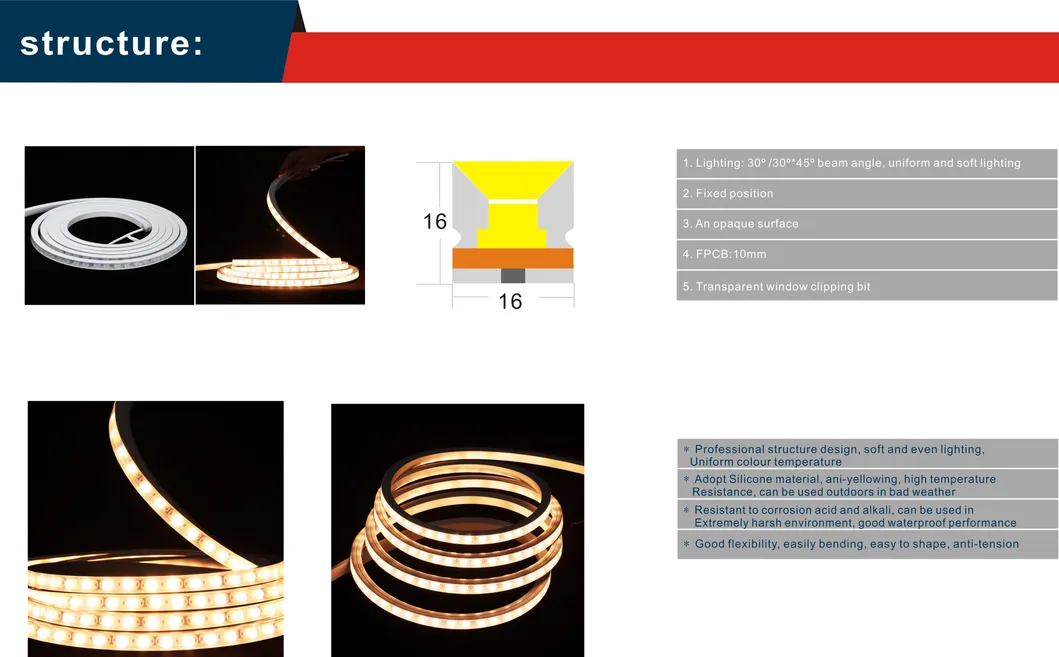

Product Dimension

Installation & Applications

🛠️ Easy Installation
Can be clipped into LED Aluminum Profiles, Bendable Channels, or Stainless Steel Slots. Cuttable in different lengths with marked signs.
🏙️ Multi-Scenario
Perfect for building outlines, bridges, hotel facades, garden designs, and underwater lighting (aquariums/fountains).

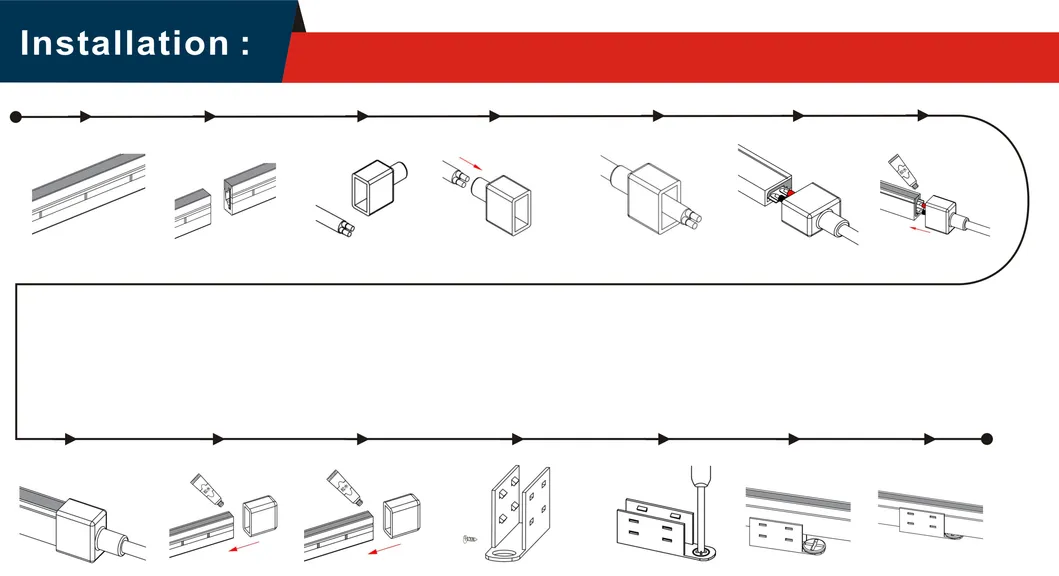

Installation Guide

Quality Control & Lead Time

  • Stability Test: 100% aging test for 48 hours and waterproof testing for 72 hours.
  • Lighting Test: 100% inspection before packing.
  • Drop Test: Ensuring protection during transit.
  • Lead Time: 2-3 days for samples; 7-15 days for normal orders.

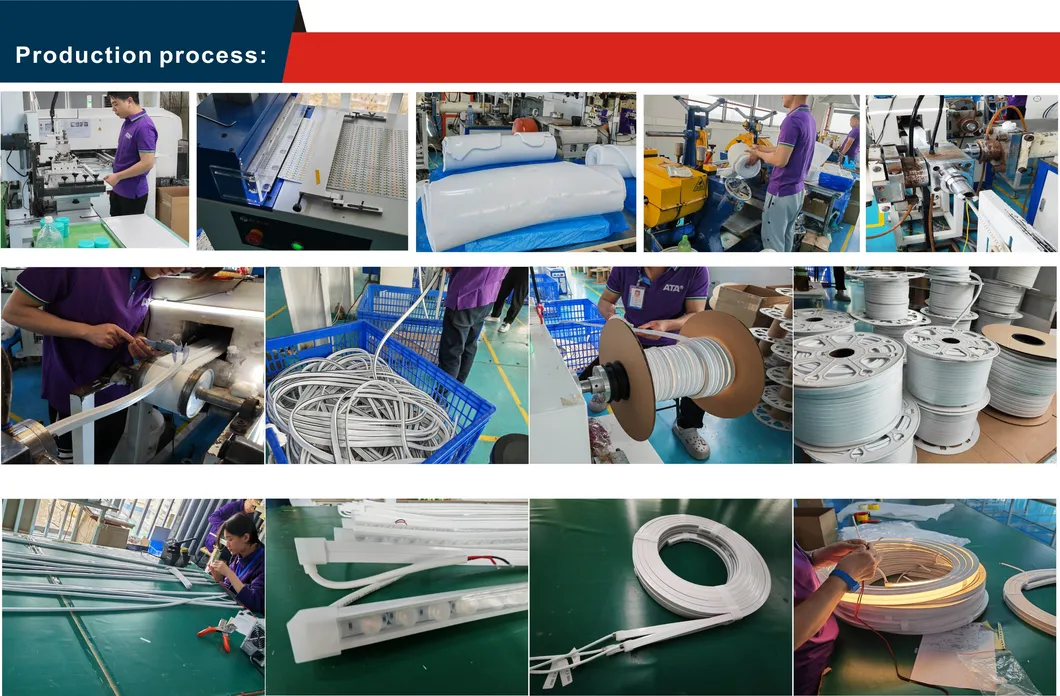

Factory Production
Project Display

Frequently Asked Questions

What is the waterproof rating of this wall washer?
The product features high-grade protection ratings of IP66, IP67, and IP68, making it suitable for heavy rain and underwater applications like fountains.
How flexible is the LED strip?
It is designed with 360° flexible bending capability, allowing it to be easily shaped into various curves, letters, and architectural patterns.
What is the expected lifespan of the LEDs?
The LEDs are built to last up to 50,000 hours, supported by high-quality LED chips with gold wire and copper pins for stable heat dissipation.
Does the silicone housing turn yellow over time?
No, we use high-quality, anti-UV, and food-grade silicone material that is resistant to yellowing and environmental corrosion.
Is the wall washer cuttable for custom lengths?
Yes, the strip is cuttable at marked units (e.g., every 5cm or 12.5cm depending on the model) and can be reconnected using dedicated accessories.
What dimming and control modes are supported?
It supports various working modes including On/Off, DMX512, Triac, PWM, 1-10V, and smart controls via Wifi or Bluetooth.
