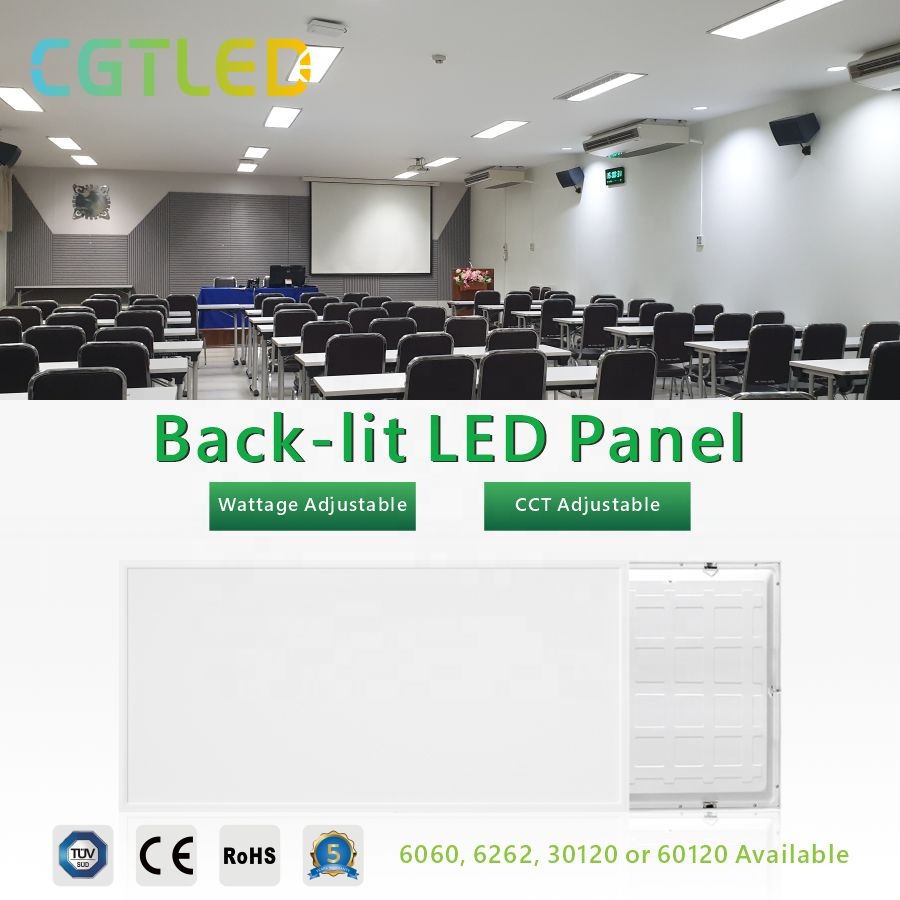

Product Description

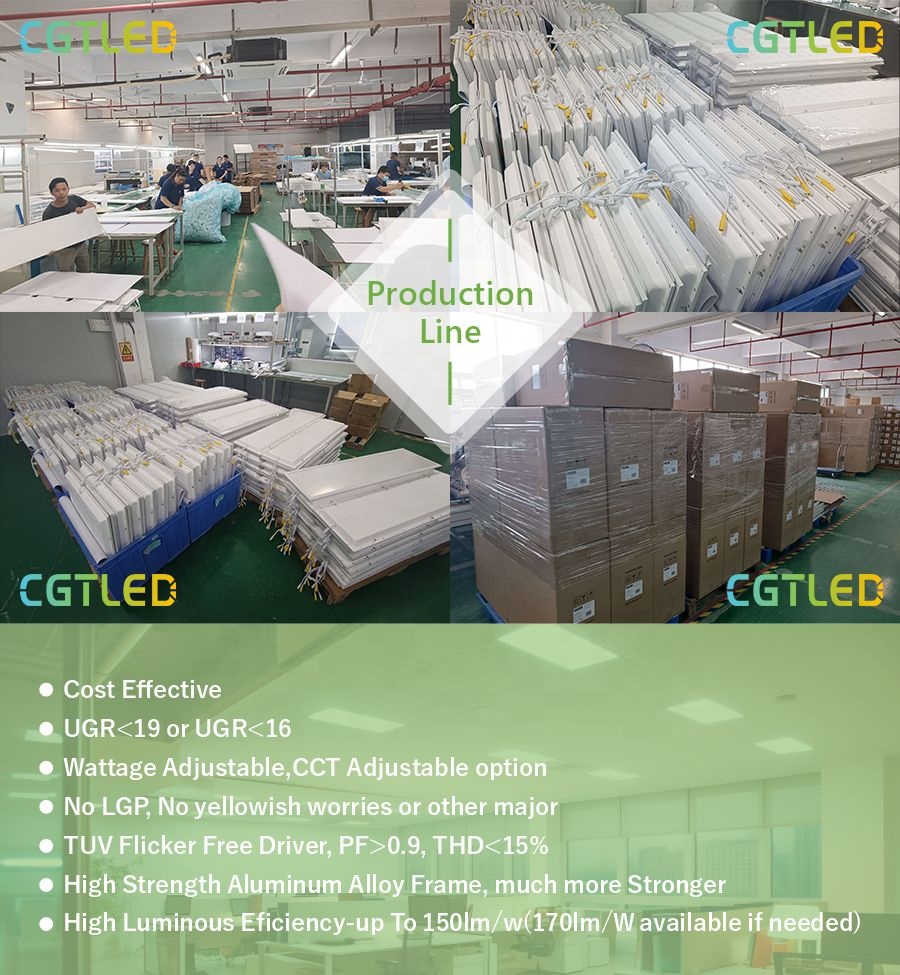

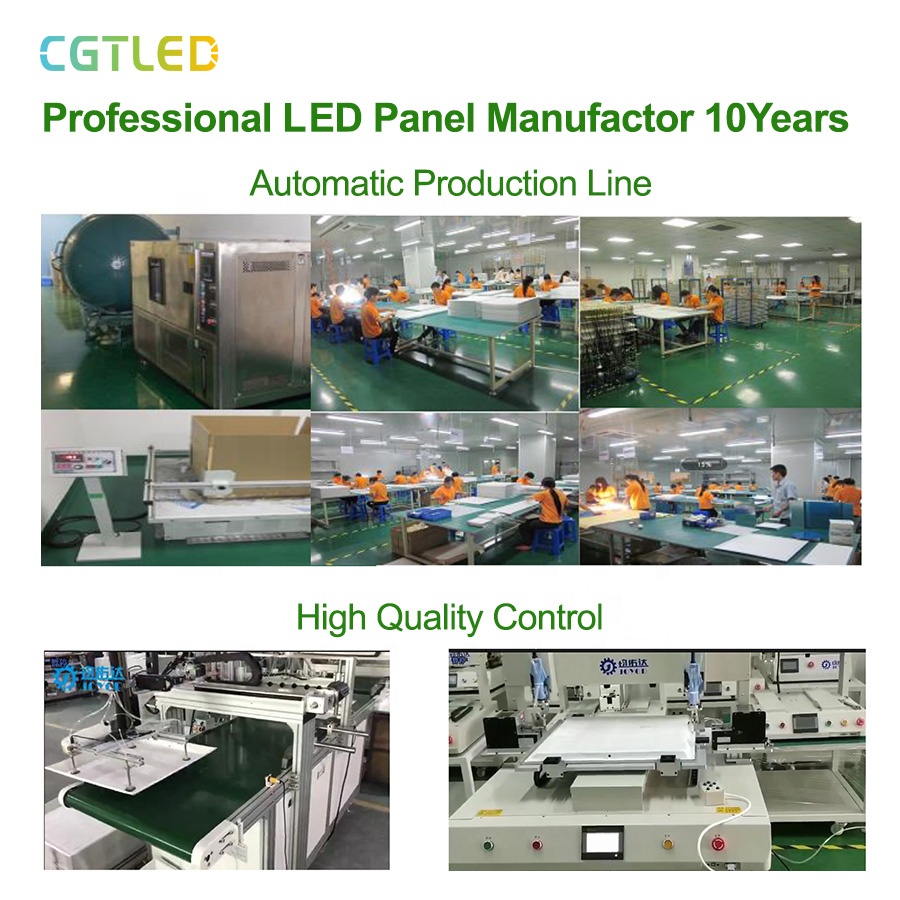

We have launched a new type design---Power & CCT Tunable Back-lit LED Panel Light Series. From product design, mold development, material selection, automated production, etc., we will strictly control every procedure and present the best quality products for our customers.
Specification
| Product |

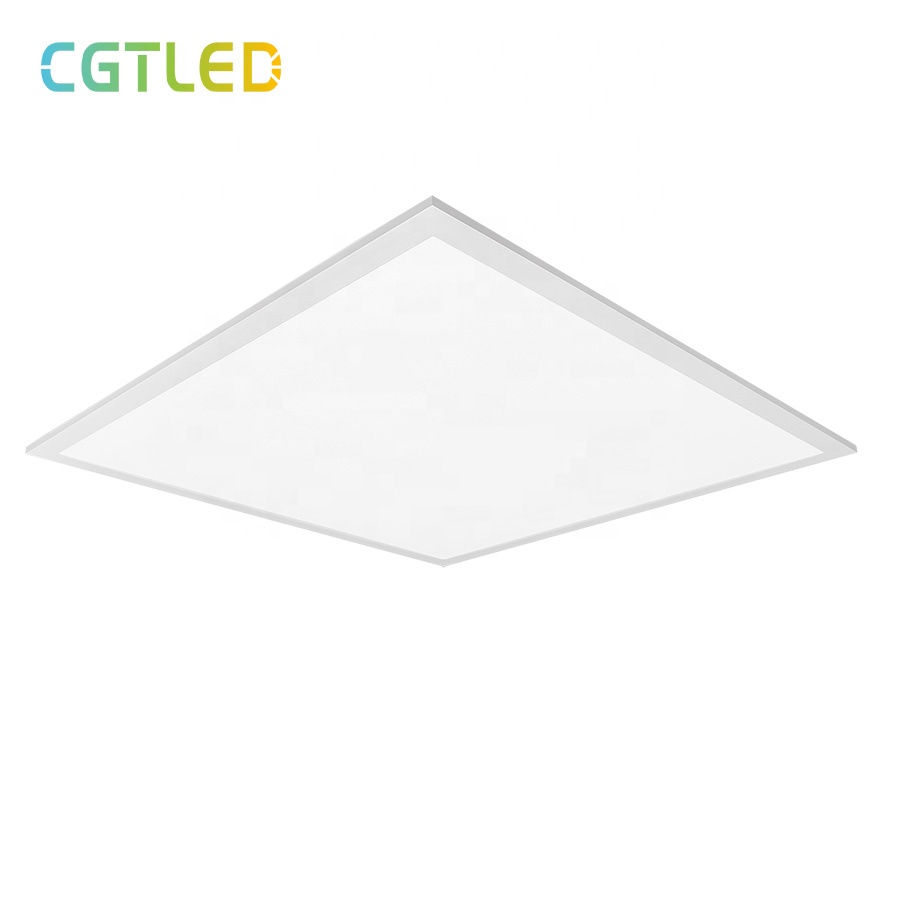

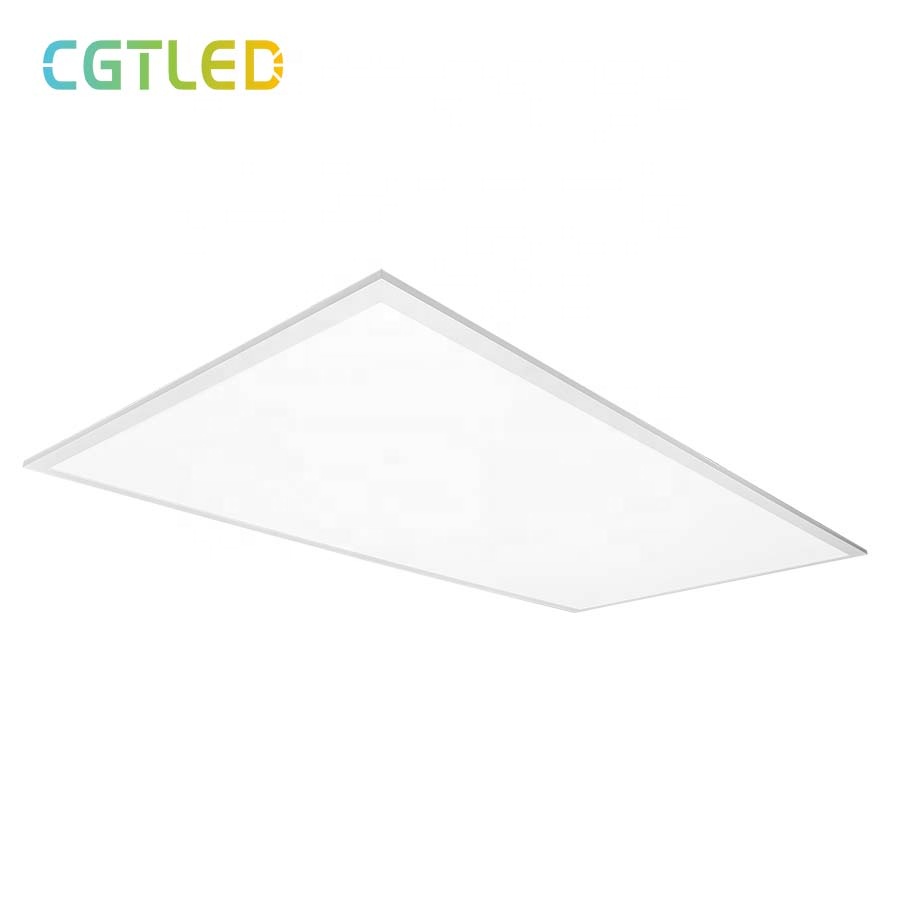

LED Back-Lit Panel Light |
| Power |
27W/36W Switch, 40W, 36W, 25W |
| CCT |
3-CCT Selectable 30K-40K-60K / Single CCT 30K/40K/60K |
| Input Voltage |
200-240Vac |

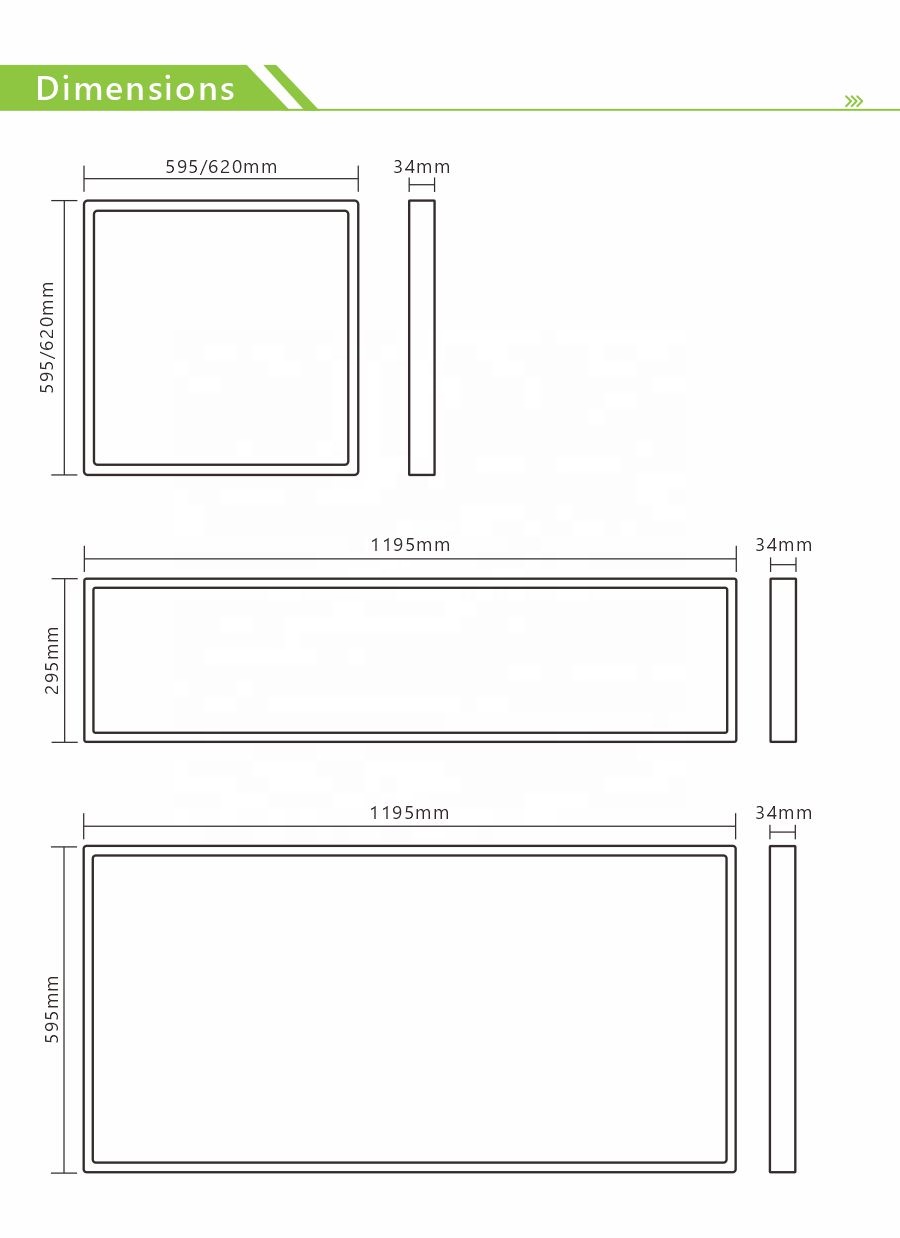

| Size |
6060, 30120, 60120 |
| Warranty & Certification |
3 years or 5 years / CE, RoHS, CB, TUV-GS |
Professional Supply SMD Square Led Panel Light
200-240Vac 25W 27W 36W 40W Eco Back-Lit Panel Light Advantage:

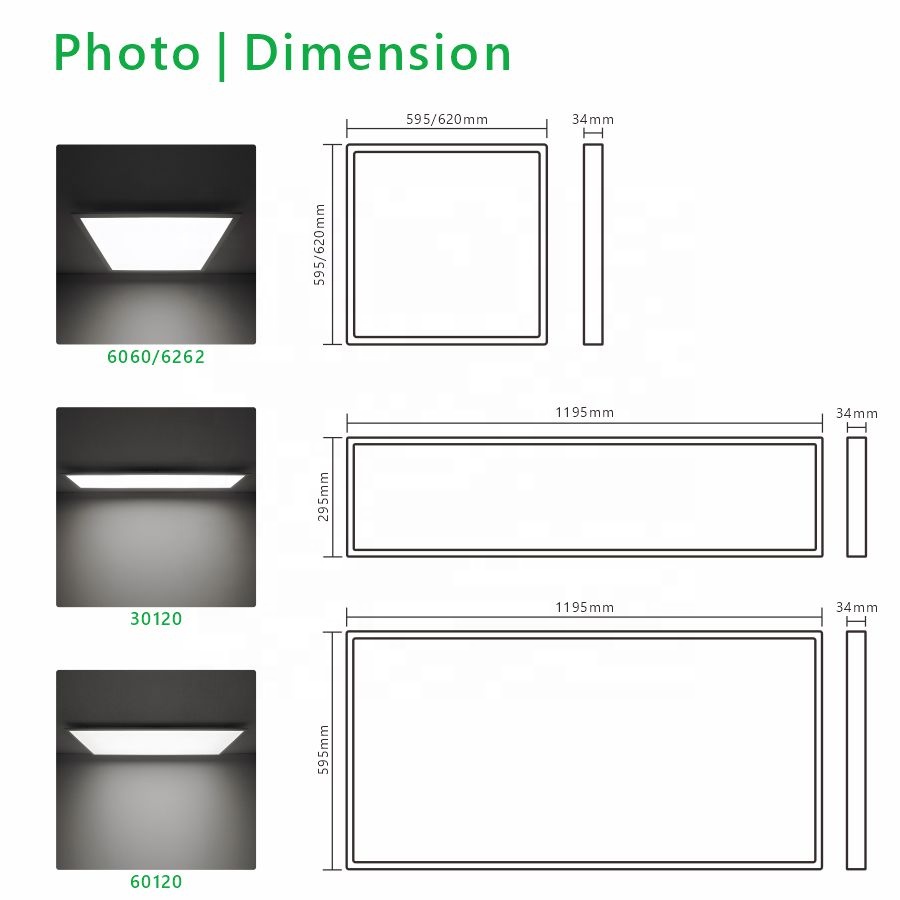

- Size: 6060, 6262, 30120, 60120 optional

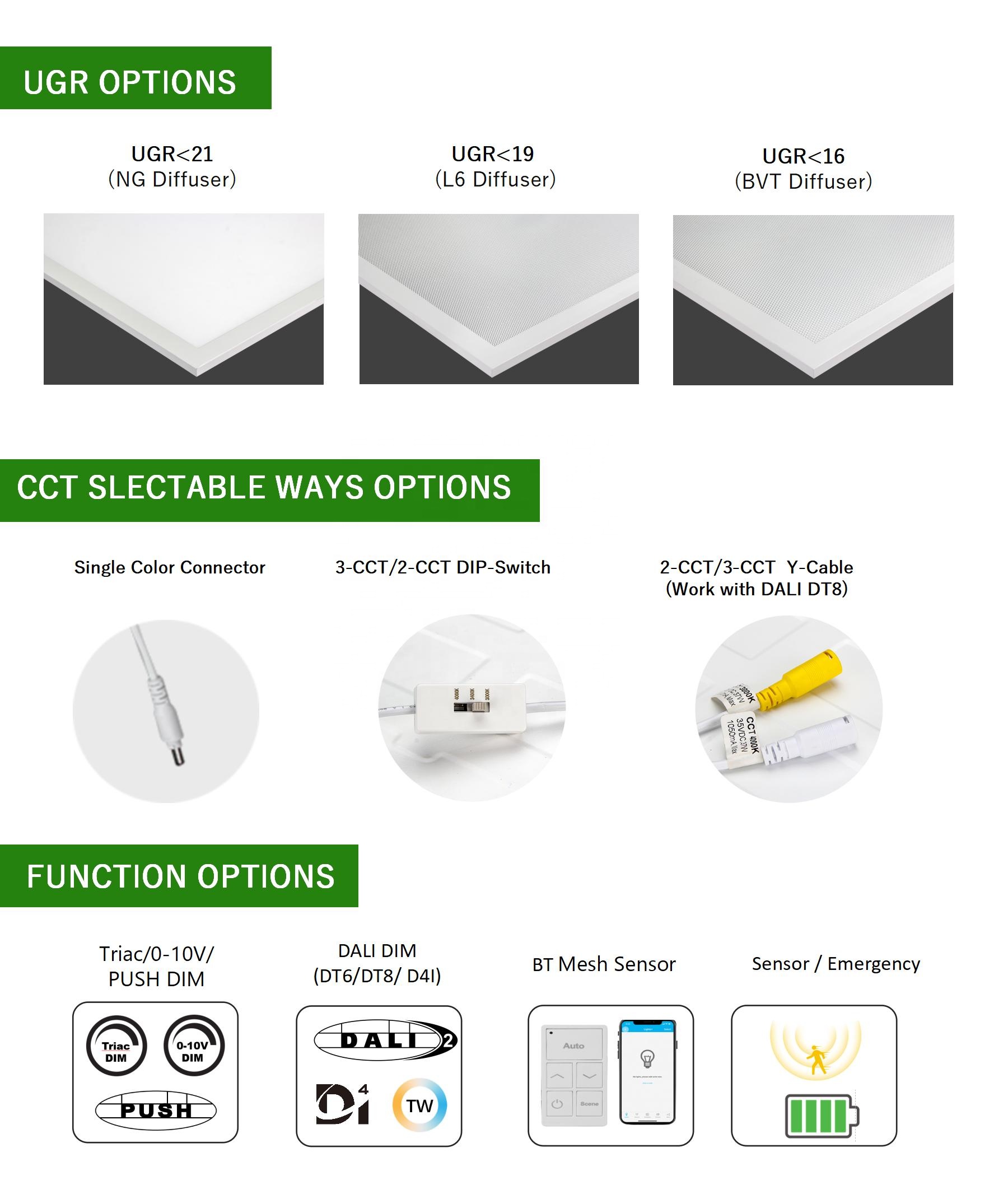

- Power: Single Power or 2-Power Dip switch

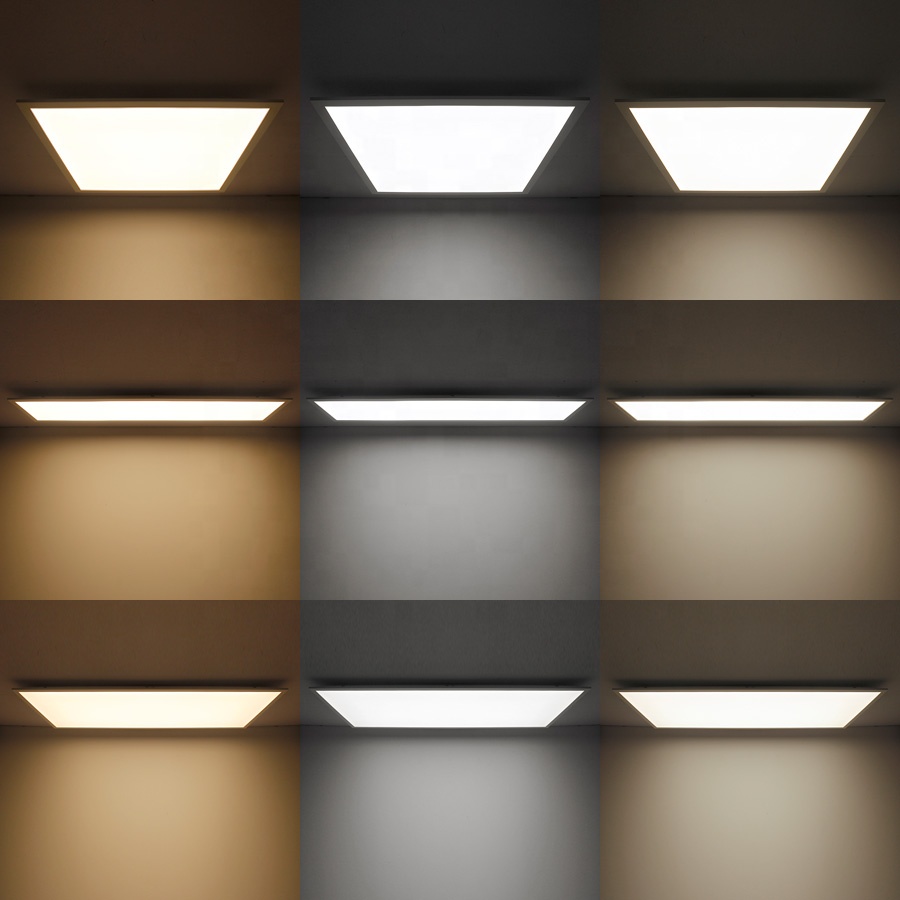

- CCT: 3-CCT Selectable 30K-40K-60K, Single CCT 30K/40K/60K
3000K Warm White
4000K Natural White
6000K Cool White
LED panel features No LGP, eliminating yellowish worries and other major issues, providing lower cost and higher cost-effectiveness. Built with a High Strength Aluminum Alloy Frame for stronger structure durability. Luminous Efficiency: 100-120lm/w or 130-150lm/w, with 0-10V dimmable function optional. LED Source: SMD3030, CRI>80, SDCM<5, L80>100,000H. Certification: CE, RoHS, CB, TUV-GS. 3 Years or 5 Years Warranty, with free repair and replacement support.

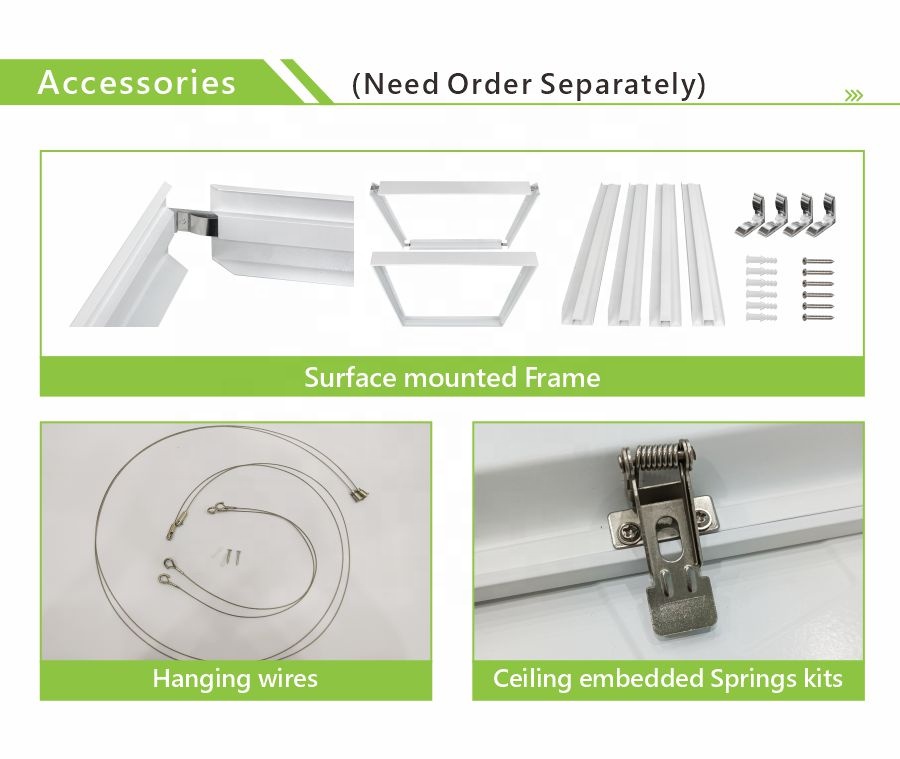

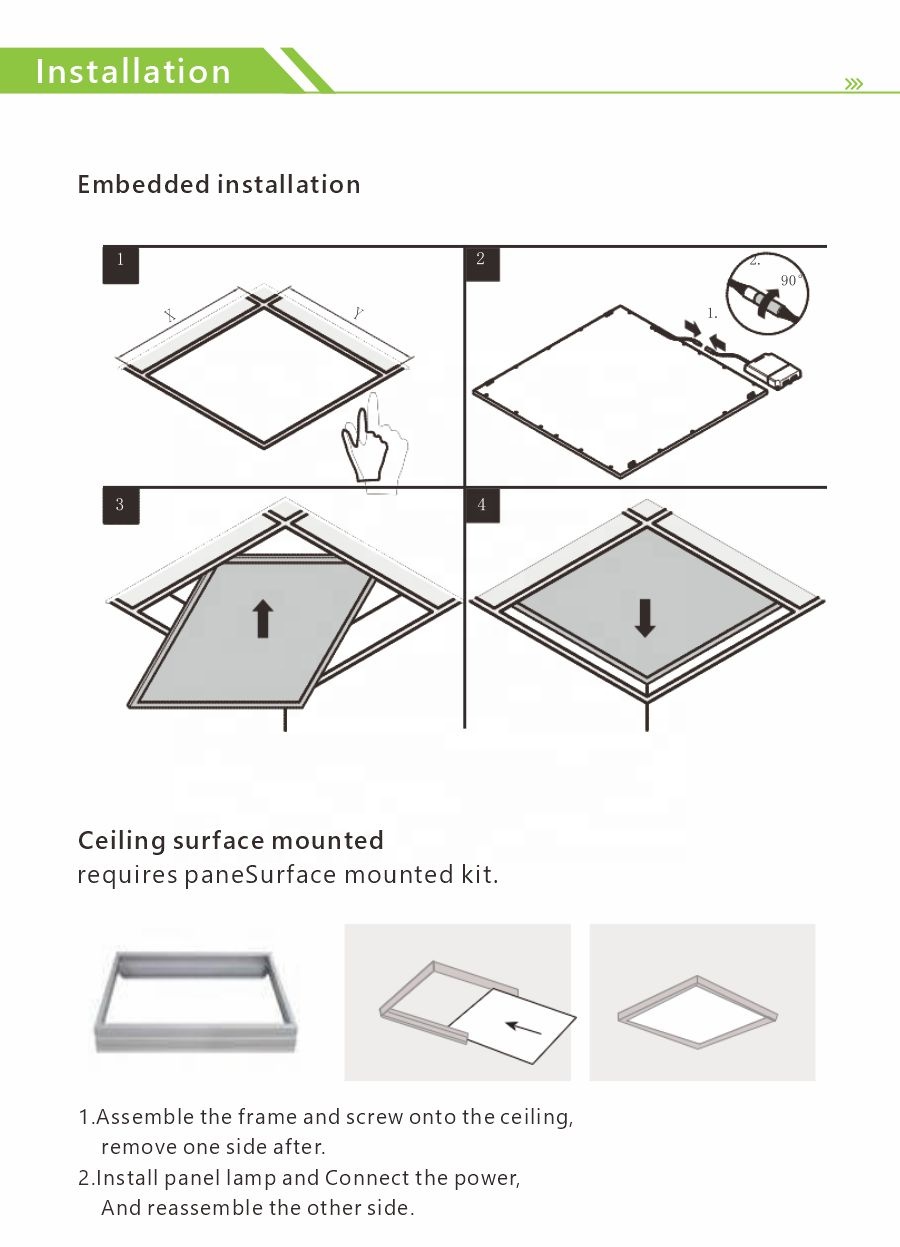

Installation & Application
* Two installation methods:
- Embedded installation
- Ceiling surface mounted
2-Power 3-CCT Selectable Panel Light LED
6060, 6262, 30120, 60120 size options, 25W, 27W, 36W, 40W configurations, with CE, RoHS, CB, TUV-GS Certification
Main Features:

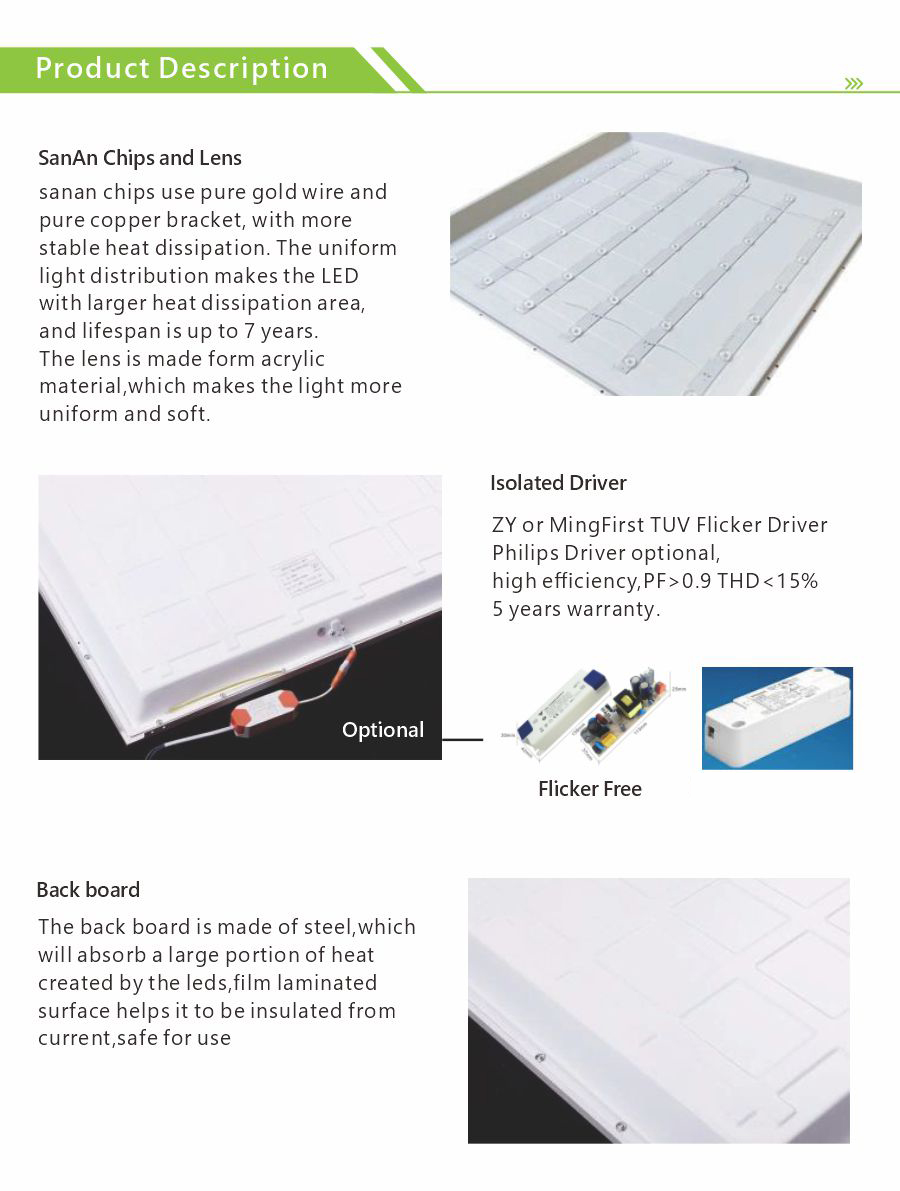

- The PS diffusion plate with 1.2mm thickness ensures the whole lamp operates with no dark areas, no deformation, and highly uniform lighting.
- 15.8mm large angle special TV backlight lens, combined with a premium PMMA lamp cover, maximizes the output lumens of the lamp.
- Equipped with original imported SMD3030 chips for high CRI effect, high brightness, reaching a complete lamp luminous efficiency of up to 130lm/w.

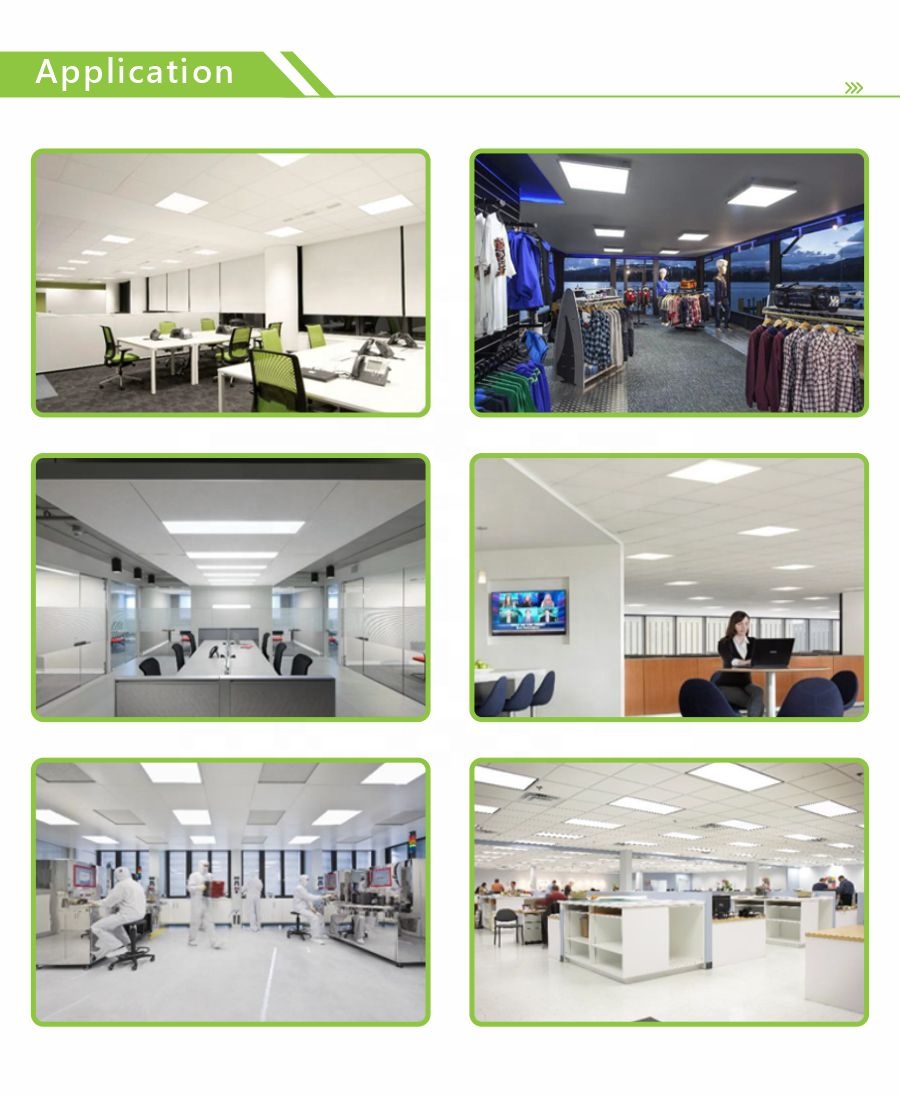

APPLICATIONS:
For indoor use only. Ideal for Factory, Office, Bank, Conference room, Hospital, Shopping mall, Hotel, Warehouse, Subway, School, Basement passage, Corridor, etc.
Certifications

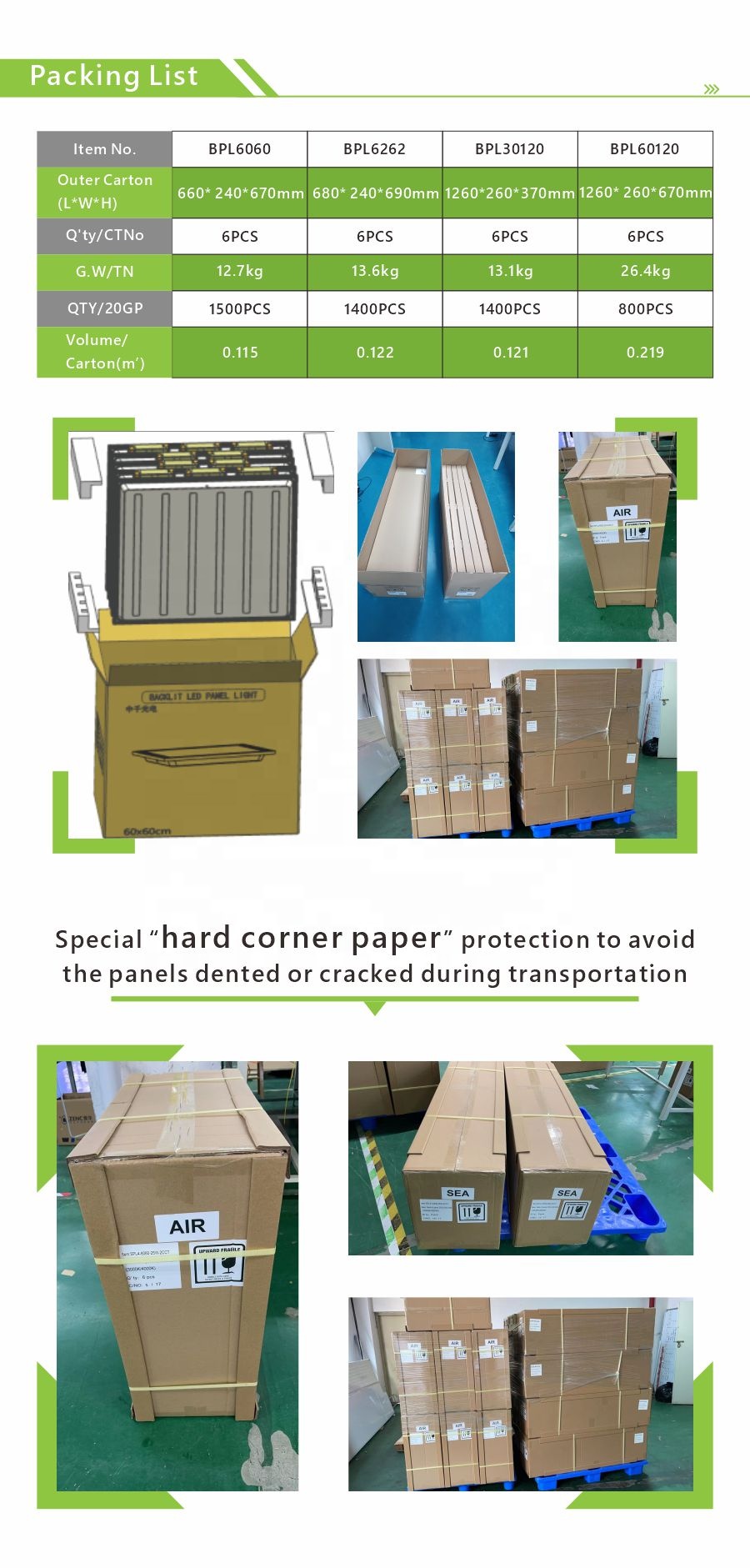

Packing & Delivery
Warm Tip:
It is recommended to choose the seller's mode of transportation. We will help find a cheaper and more cost-effective express route for your order requirements.
FAQ
Can I have a sample order for the LED panel light?
Yes, we welcome sample orders to test and check the overall quality. Mixed samples are fully acceptable.
What is the expected lead time?
Samples typically require 1-5 days to prepare, while bulk order production requires 1-2 weeks.
What kind of product certifications are available?
Our products are fully certified with CE and RoHS standards.
How do you ship the goods and how long does it take to arrive?
Small orders are shipped via International Expresses (3-7 days) or International logistics parcels (15-20 days). Bulk orders are shipped via Airline (5-7 days airport to airport) or Sea shipping (20-40 days port to port).
Is it possible to print my custom logo on the LED light product?
Yes. Please inform us formally before production begins and confirm the design configuration based on our initial sample.
How do you handle faulty or defective products?
During the guarantee period, we will send replacement lights with new orders for small quantities. For defective batch products, we will repair and resend them to you, or we can discuss a viable solution including recalls depending on the situation.
