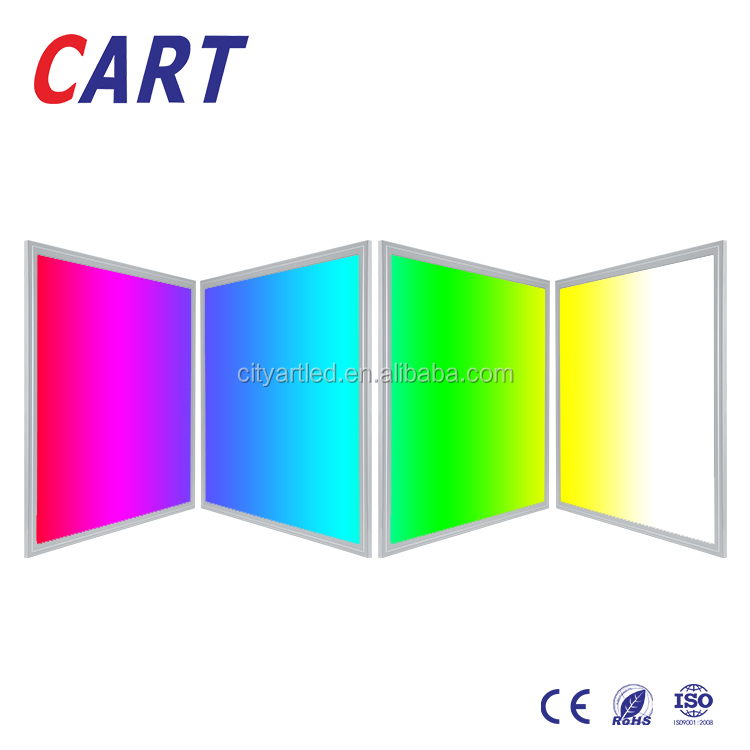

RGB LED chips, warm white, cold white chips, all colors are included.
Wavelength/CCT: R 620-630, G 515-525, B 465-470, White Color changeable (Warm white, Natural white, Cool white)
RGB(W) RGBCCT LED panel light controller - 2.4GHz controller
| Model | Dimension | LED Qty per Panel | Wattage per Panel | Luminous Flux |
|---|---|---|---|---|
| YLL-PF02 | 295*295*10mm | 56LEDs | 15W(±5%) | 1000LM |
| YLL-PF03 | 295*595*10mm | 98LEDs | 25W(±5%) | 1700LM |
| YLL-PF05 | 595*595*10mm | 196LEDs | 48W(±5%) | 3520LM |
| YLL-PF04 | 295*1195*10mm | 196LEDs | 48W(±5%) | 3520LM |
| YLL-PF06 | 595*1195*10mm | 252LEDs | 65W(±5%) | 4530LM |

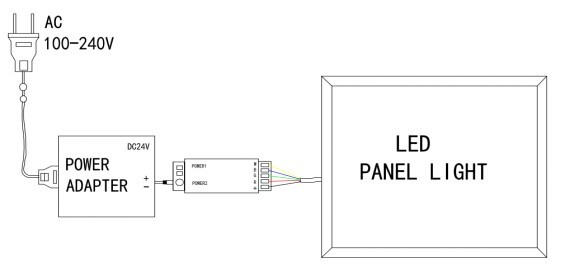

The electrical connection of single led panel light

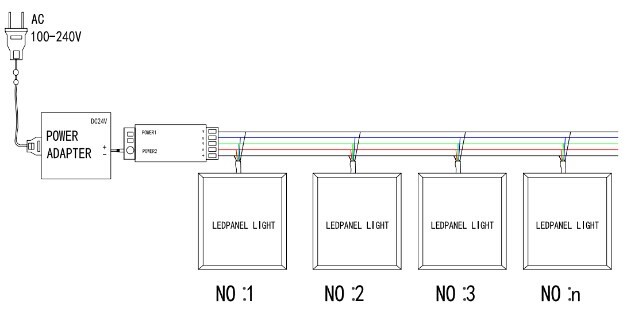

The electrical connection of multi-led panel lights by a controller
| Model | Dimension | Maximum Connection Quantity |
|---|---|---|
| YLL-PF02 | 295*295*10mm | 24pcs |
| YLL-PF03 | 295*595*10mm | 14pcs |
| YLL-PF05 | 595*595*10mm | 7pcs |
| YLL-PF04 | 295*1195*10mm | 7pcs |
| YLL-PF06 | 595*1195*10mm | 5pcs |

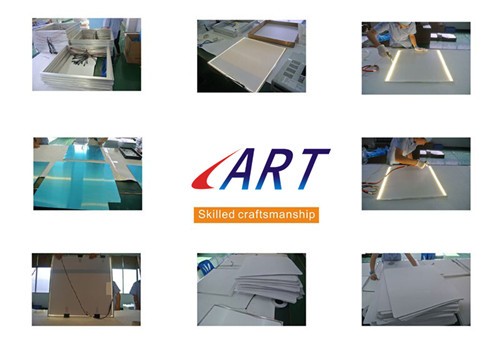

The factory features a professional technical support team including R&D, PC, PMC, QC, etc. With engineers possessing more than 8 years of experience in the LED lighting field, custom solutions for technical designs are readily supported.
TUV, CE, RoHS Certificates

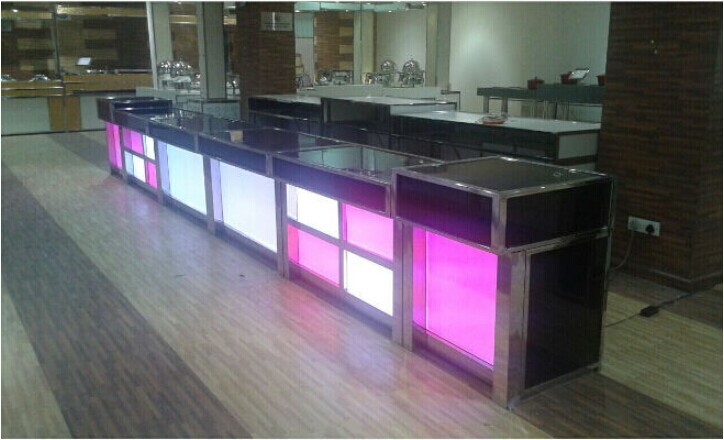

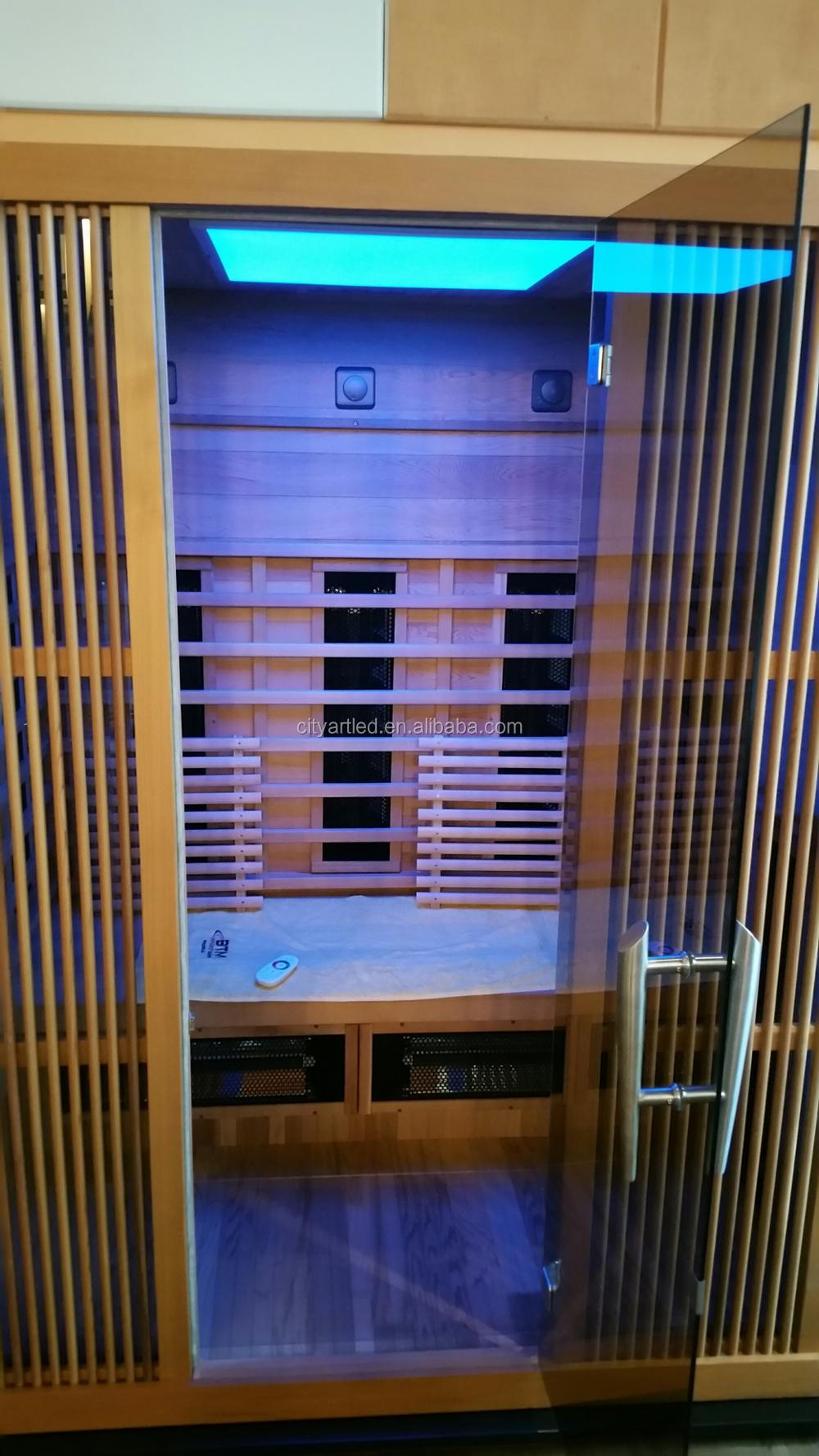

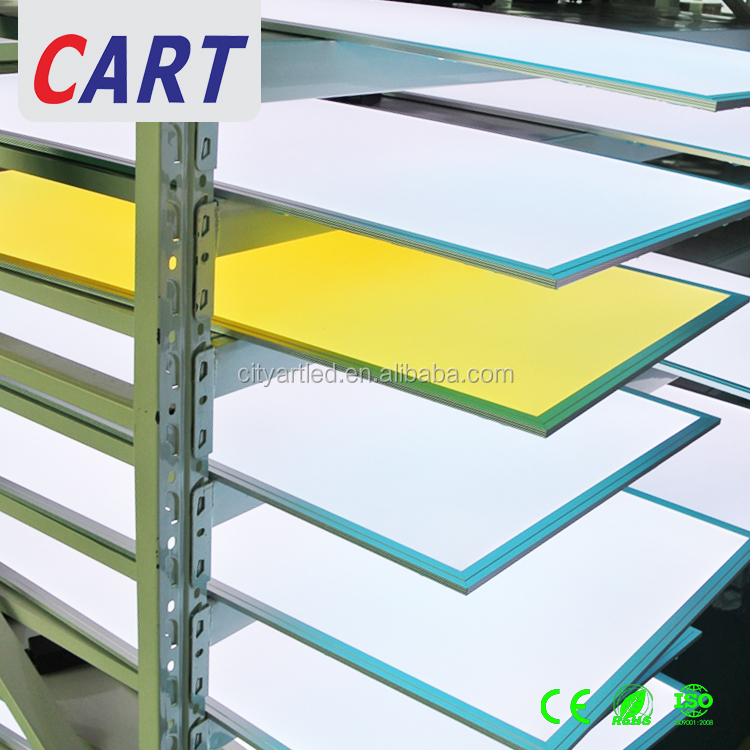

RGB/RGBW/RGBCCT panel light for Sauna Furniture banquet decoration Lighting
| Model | Dimension | Qty/CTN | N.W/CTN | G.W/CTN | Carton Size |
|---|---|---|---|---|---|
| YLL-PF02 | 295*295*10mm | 12PCS | 21.5KG | 24.5KG | L420*W405*H365mm |
| YLL-PF03 | 295*595*10mm | 8PCS | 18.5KG | 22.0KG | L655*W265*H410mm |
| YLL-PF05 | 595*595*10mm | 6PCS | 24.5KG | 28.5KG | L720*W200*H670mm |
| YLL-PF04 | 295*1195*10mm | 6PCS | 26KG | 29.5KG | L1340*W240*H350mm |
| YLL-PF06 | 595*1195*10mm | 3PCS | 23.1KG | 29.0KG | L1340*W190*H675mm |

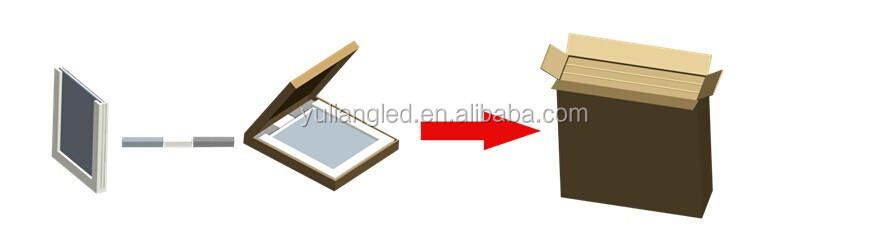

Panel light packed by PE bag & EPE Foam
In-stock items allow for fast and reliable services. Orders under 1000 sets can be delivered within 5-7 working days.
Optimized manufacturing and direct component controls keep production costs highly competitive.

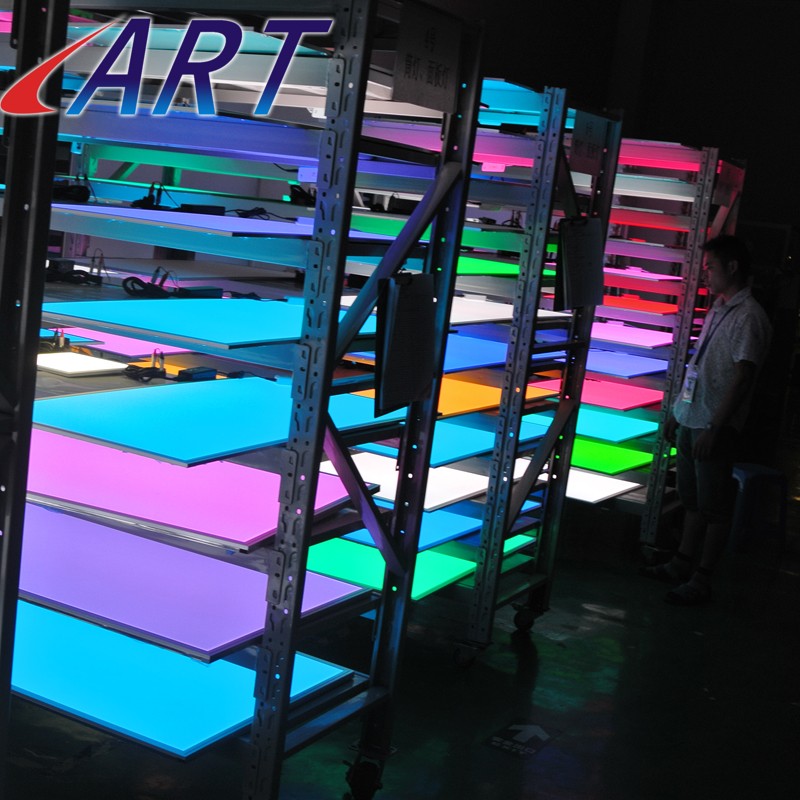

Rigorous checks ensure optimal performance, reliable light output, and product longevity.
Backed by a 30-day money-back guarantee and a comprehensive 3-year warranty.
What CCT options are available for the LED panel light?
The panel light supports color changing capabilities including RGB color options and CCT adjustments ranging from Warm White to Natural White and Cool White.
Can these panels be controlled via wireless remote control?
Yes, the panels are compatible with a 2.4GHz control system and wireless RF touch panel remote controllers. The wireless control distance reaches up to 25 to 30 meters.
What sizes and wattages do these LED panels come in?
They come in several standard dimensions: 295*295mm (15W), 295*595mm (25W), 595*595mm (48W), 295*1195mm (48W), and 595*1195mm (65W).
Are the panels compatible with professional control systems?

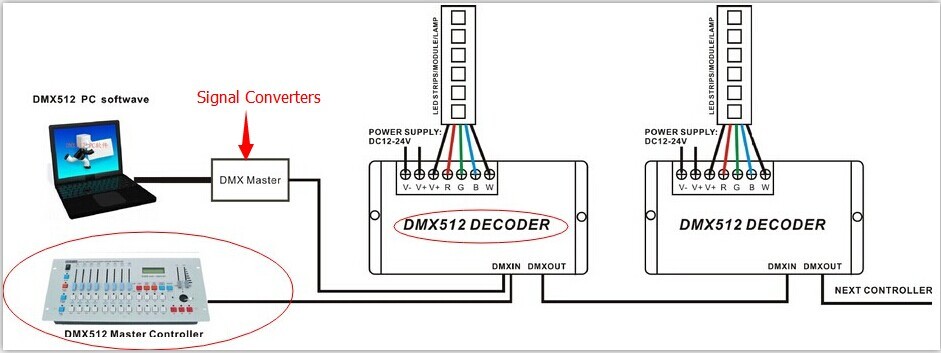

Yes, they are compatible with DMX512 controllers for seamless dynamic color-changing integration.
What is the safety working voltage of the panels?

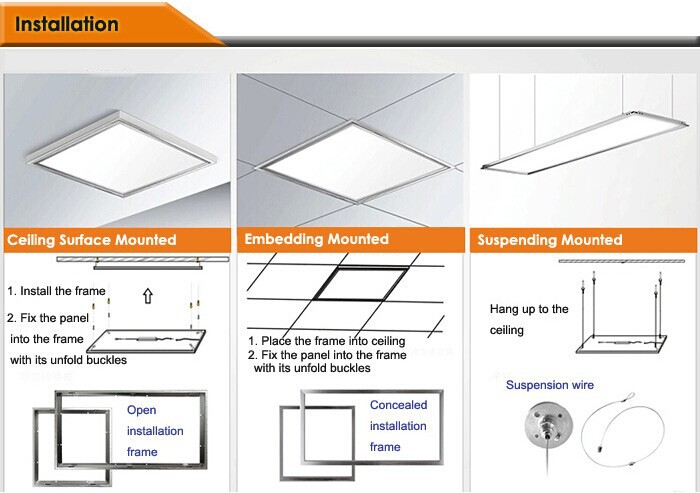

The panels operate on DC 12V/DC 24V via standard AC100V-240V drivers and should be installed by professional electricians.
How many panel lights can be connected to a single controller?
The maximum quantity depends on the panel size. For example, up to 24 units of 295*295mm panels or up to 5 units of 595*1195mm panels can be connected to a single controller.
