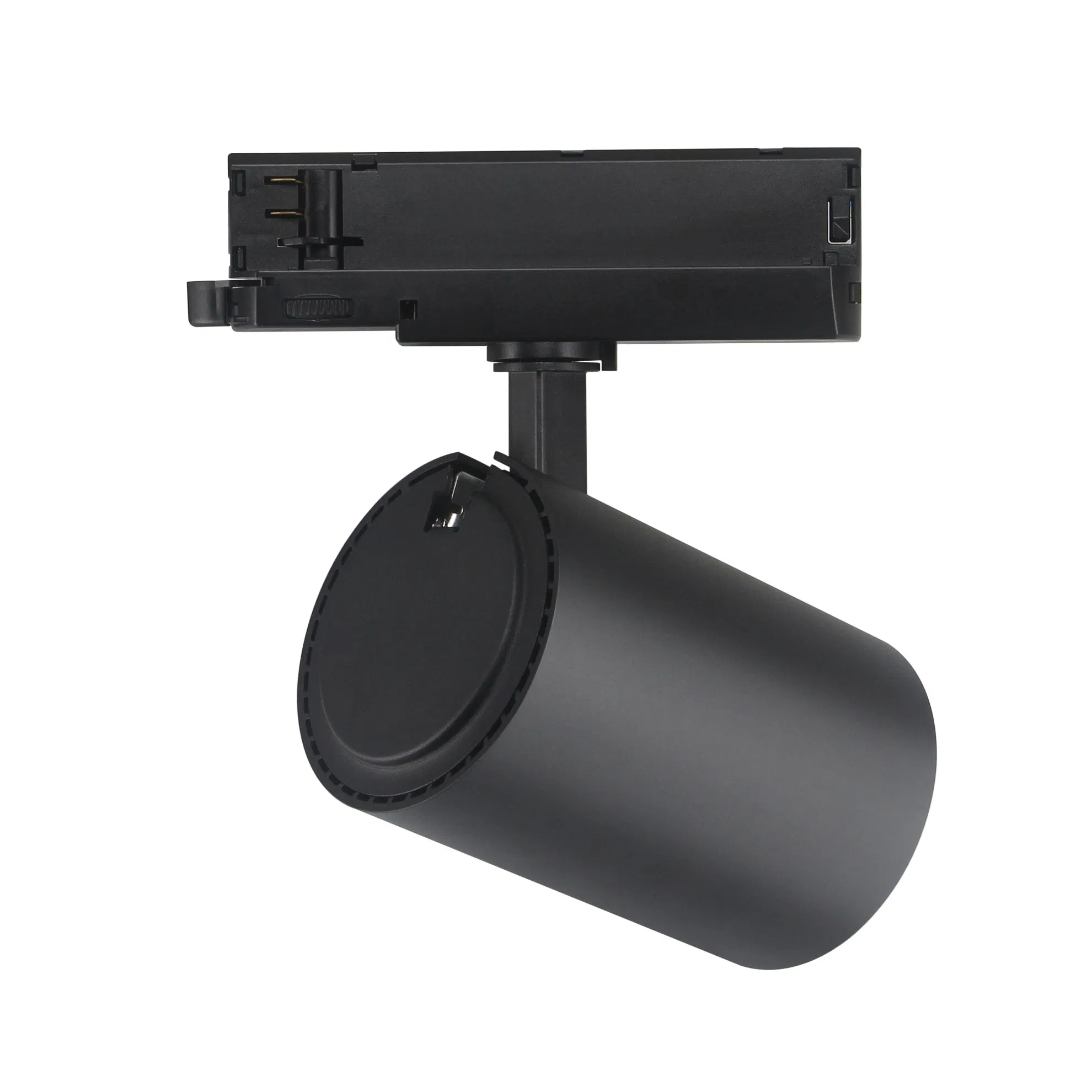

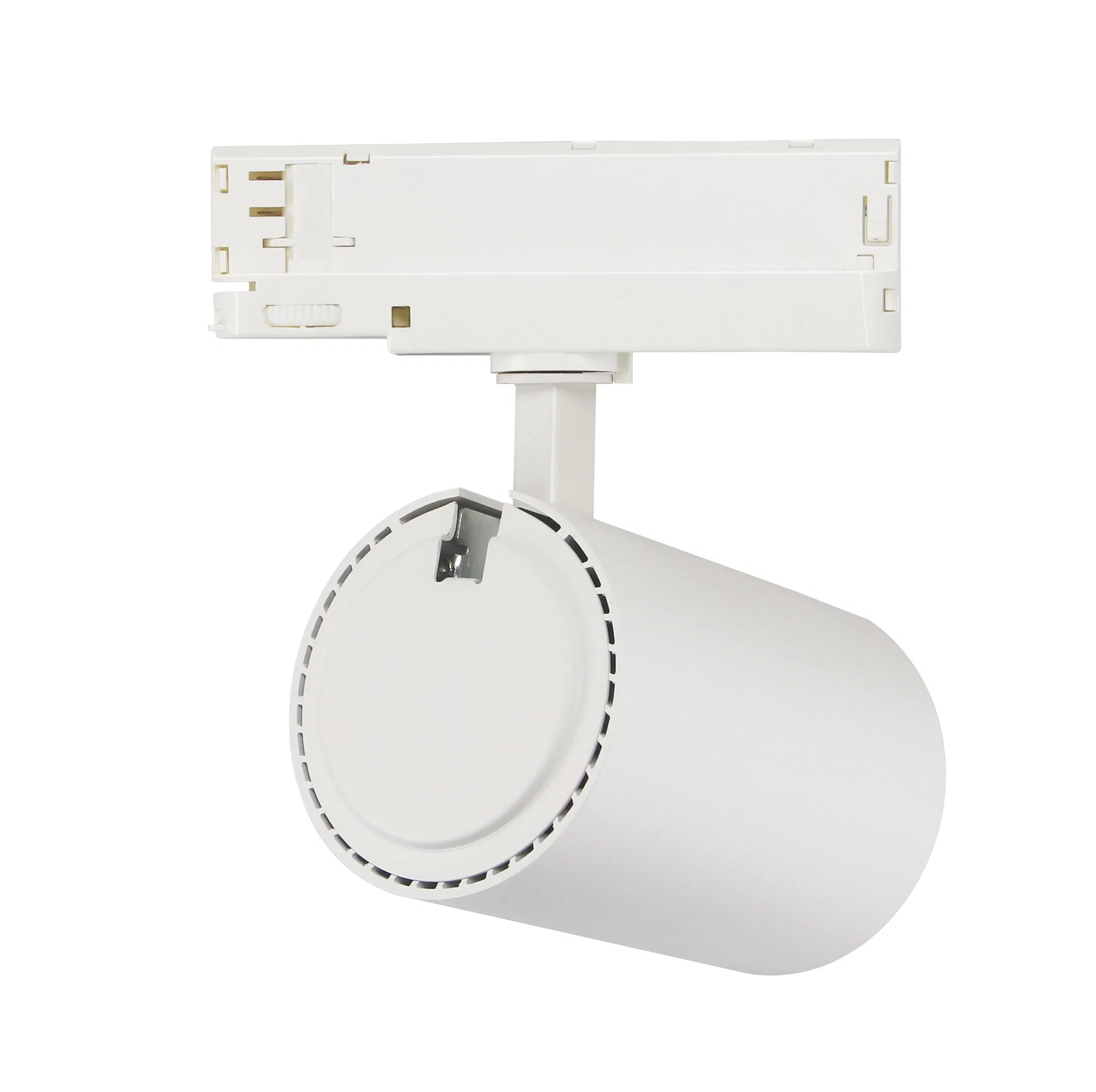

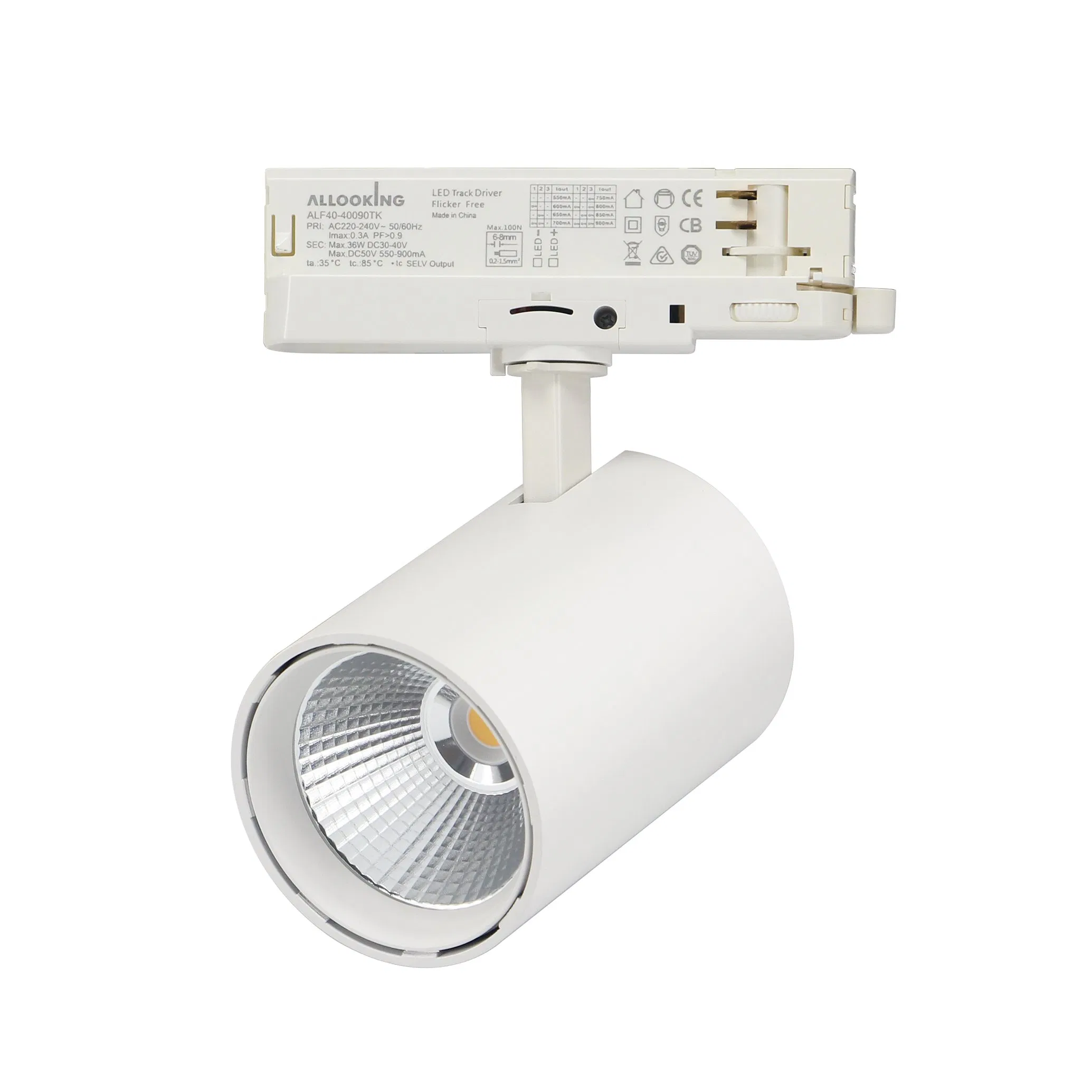

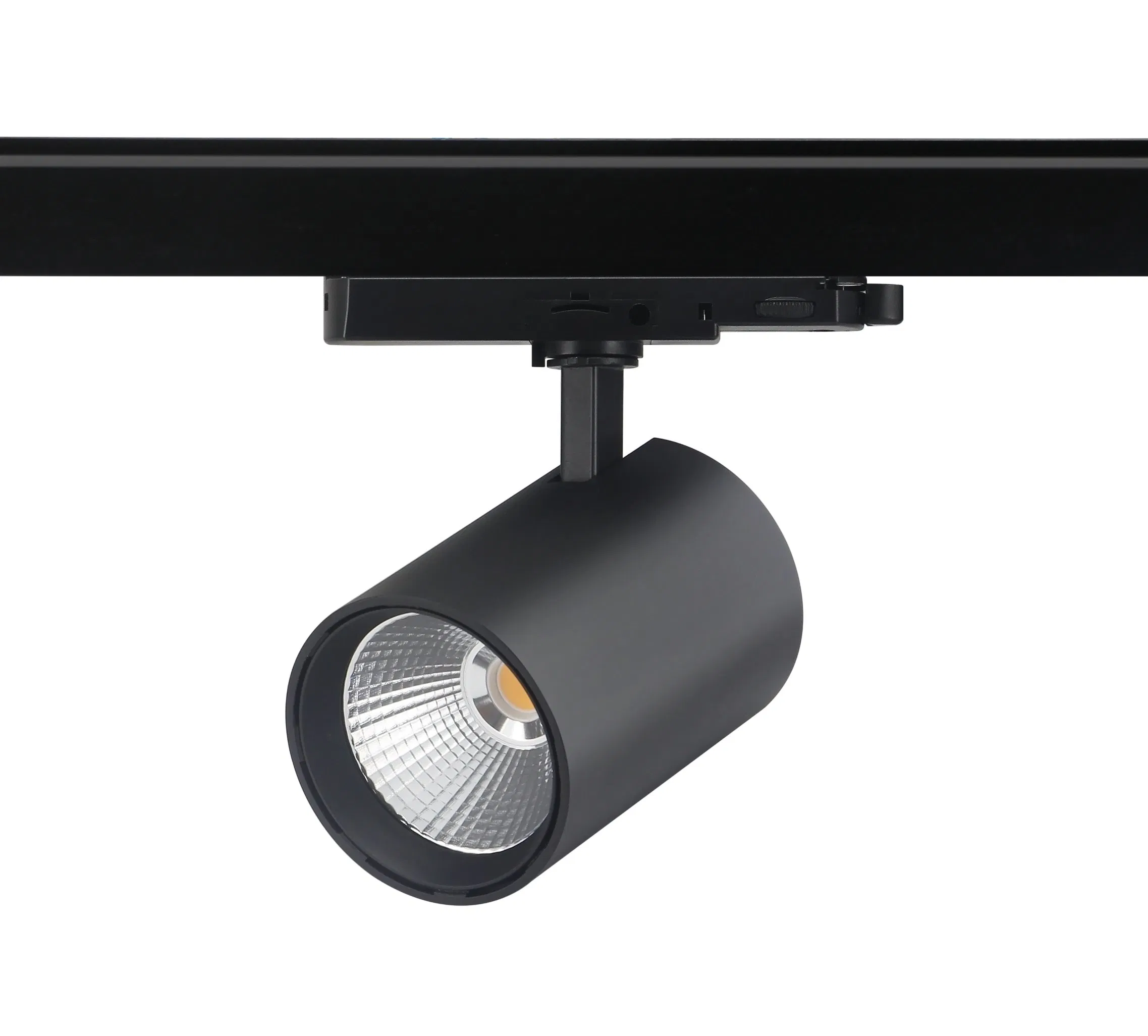

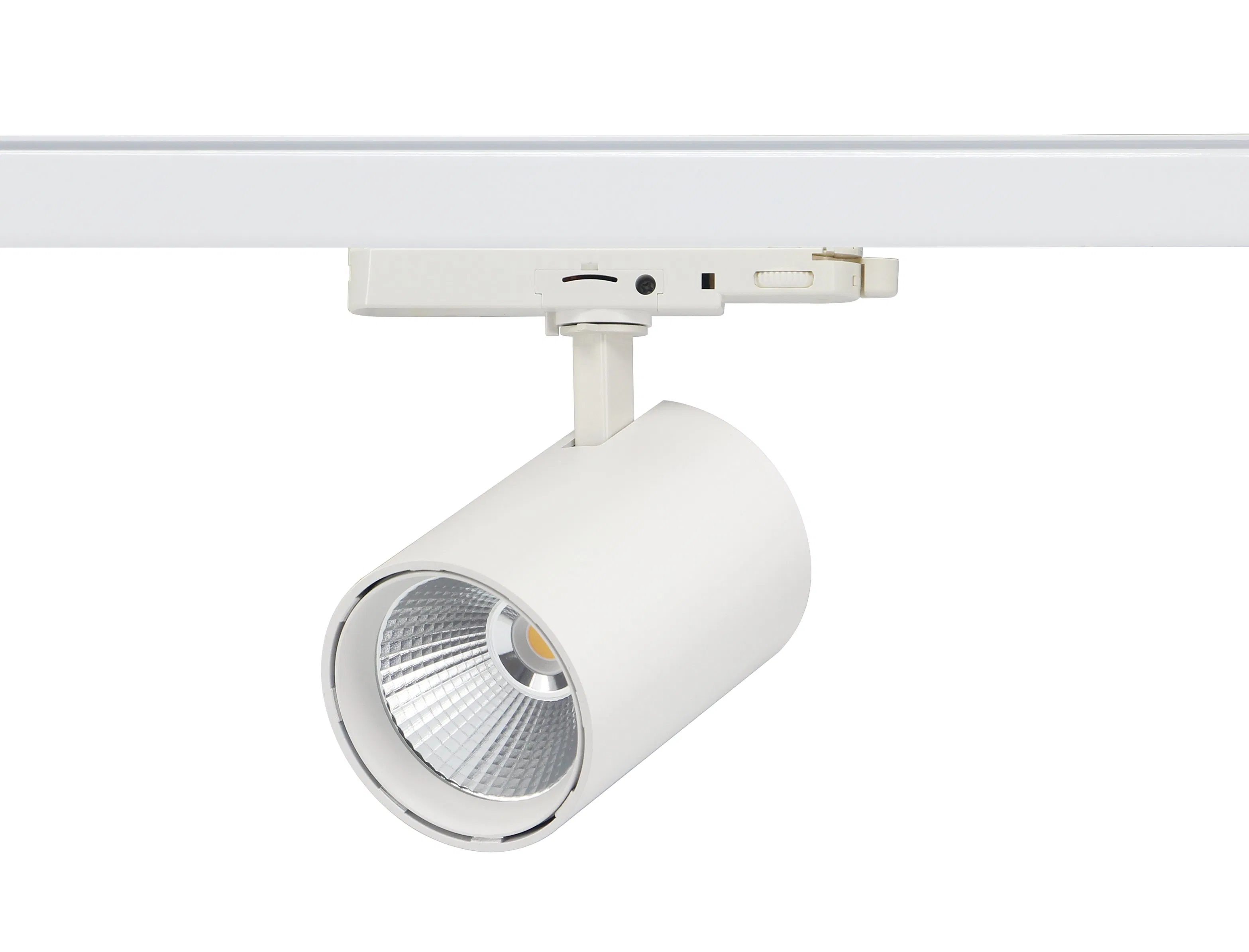

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light

1 / 5

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light

Send Inquiry

Product Description

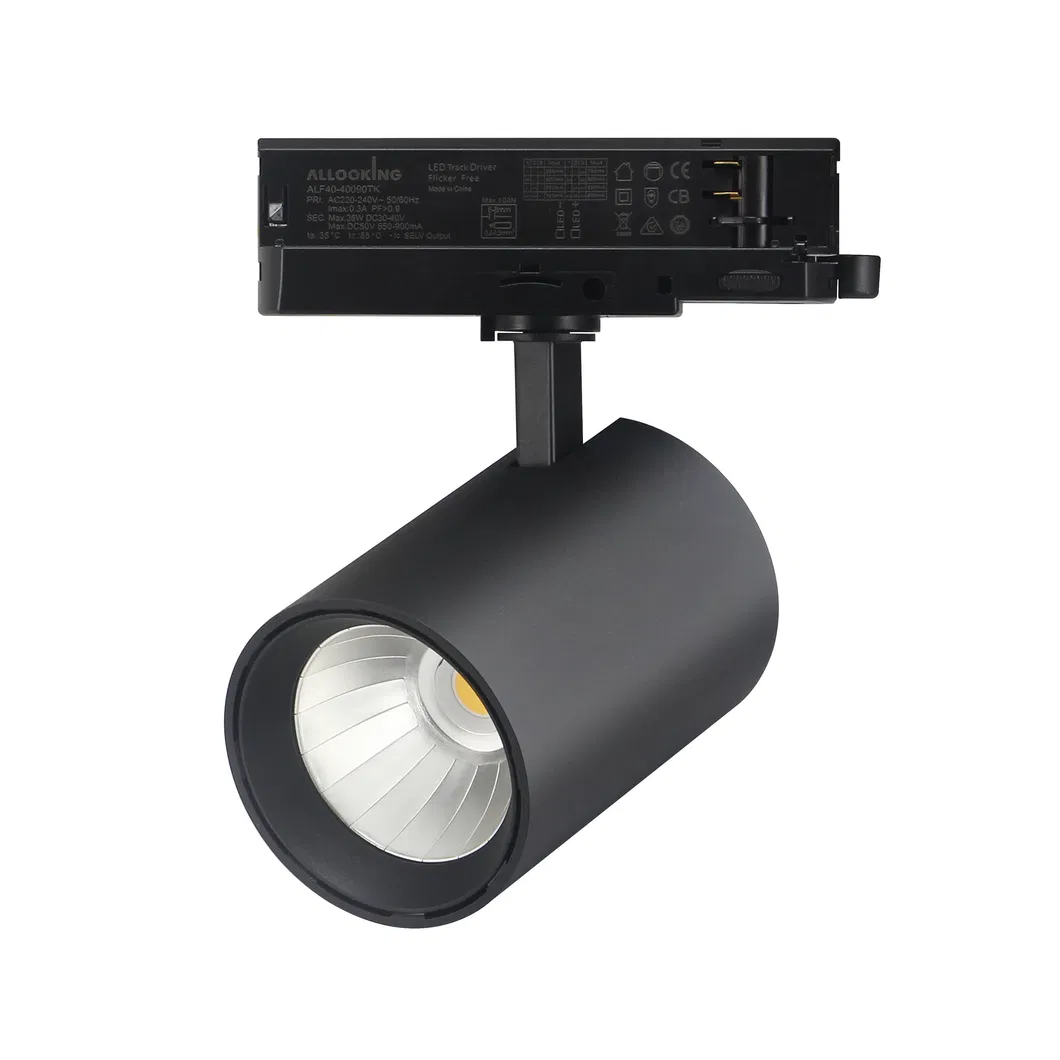

COB LED Track Light 35W

Aluminum Retail Track Lighting 10W 20W 30W & 35W COB Tracklight LED Track Spot Light

Premium Optics & Multi-Phase Compatibility

Original Citizen COB Anti-glare LED track light 25W/35W. Features high-performance configurations including CREE CHIP LED track lights and EPISTAR CHIP LED track spot lights. Engineered as a high-quality solution for spot lighting, down lighting, and ceiling installations.

Fully compatible with 4-wire, 3-phase, and 4-phase commercial track light systems. Designed with high-lumen output and modern black/white aluminum casings (available in 10W, 20W, 25W, 30W, 35W, 40W, 45W, and 50W).

Quick Information

General	LED	Electrical
Osram COB	3000K / 3500K / 4000K	Input: AC200-240V
White / Black Finish	CRI: 90+	Frequency: 50/60Hz
Allooking Intrack Driver	L90/50,000h Lifetime	LED Voltage: DC36V
IP20 Rating	Initial < 3 MacAdam	Current: 850mA
Aluminum Reflector	LED Lumen > 130lm/W	Wattage: 35W
Beam Angle: 15 / 24 / 36 / 60°	SDCM < 3	Non-Dimmable
3500lm @ CRI90	On BBL, B.BBL	100lm/W Efficiency

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light Detail

Product Specifications

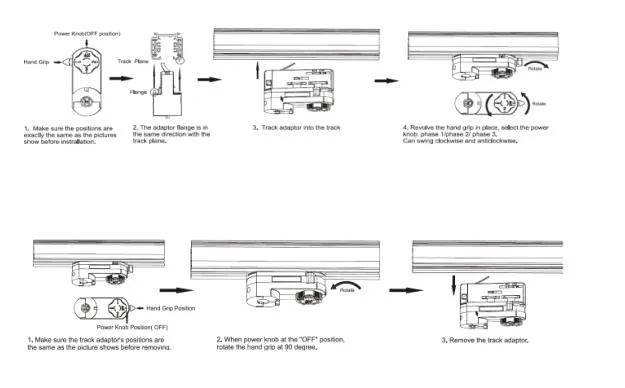

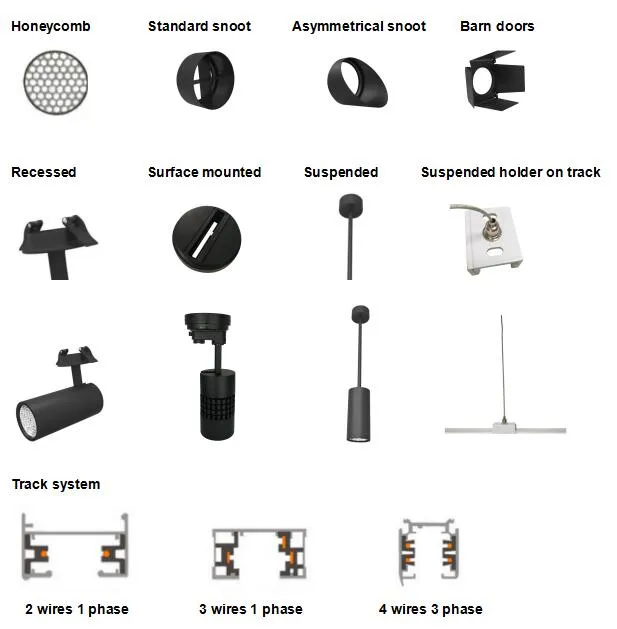

Compatible Track Adapters

2 Wire 1 Phase track adapter
3 Wire 1 Phase track adapter
4 Wire 1 Phase track adapter
4 Wire 3 Phase track adapter
6 Wire 3 Phase track adapter

Packaging & Model Info

Model: COB-TL-35W-HP

Quantity: 20pcs/carton

Inner Box Size: 20.5 * 10 * 19.5 CM

Carton Size: 52 * 42.5 * 39.5 CM

Gross Weight: 18.5KG

Versatile Lighting Solutions

Track lighting is ideal for commercial spaces to highlight products or focus on customers, such as in hair salons and retail stores, and it makes a statement for home accent and task lighting. Choose your setup with finishes including brushed nickel, black, and russet bronze. Opt for a wide flood with PAR 30 Gimbal configurations or add sparkle with delicate MR16-type 120V GU10 LED setups. All kits operate on 120VAC input, requiring no additional transformers.

Typical Applications

Energy Saving Programs
Sustainable Energy Projects
Spot & Accent Lighting
Retail & Commercial Displays
General Lighting Layouts

Environmental Specifications

Ambient Temperature: -20°C to 40°C

Lamp Surface Temperature: 60°C to 70°C

Humidity Range: 0 to 95% non-condensing

Electrical Specifications

Voltage Requirement: 200V ~ 240V AC; 50/60Hz

Power Consumption: 25W ± 10%

Power Factor: ≥ 0.92

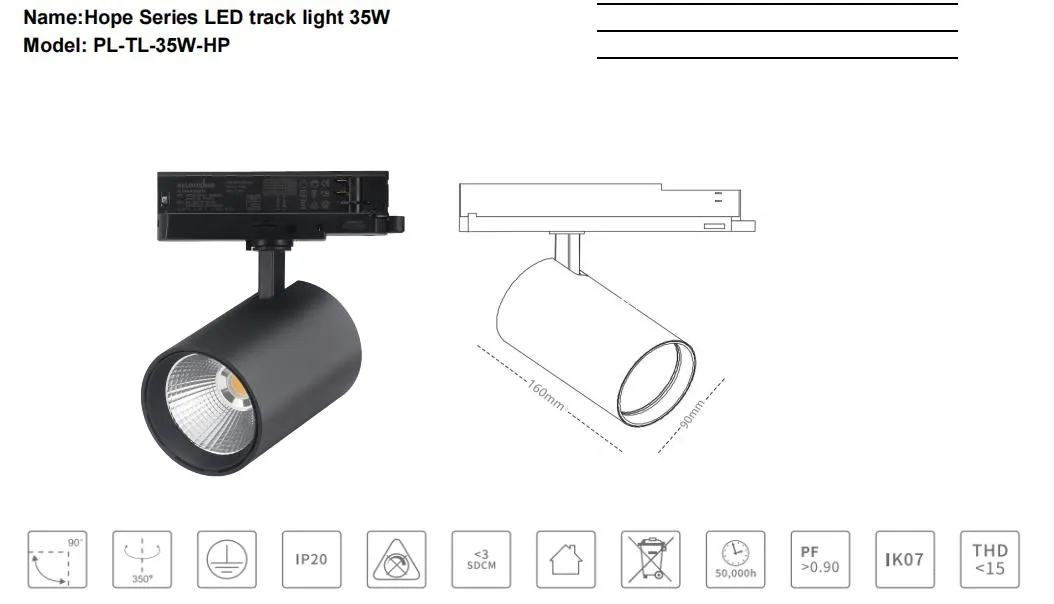

Track Spot Light Dimensions and Features

Our Services

Product and pricing inquiries will be answered within 24 hours.
Expert support from well-trained, experienced staff.
OEM & ODM projects are welcomed with custom designs available.
Protection of sales territories, design concepts, and private info.

Quality Control Protocols

100% inspection of raw materials prior to production.
Full inspection after each manufacturing phase.
500 times cycle testing (on and off) post-production.
Comprehensive checking sequence before shipment.

Warranty and Liability Policies

Limited Warranty: Each product sold is warranted to be free from defects in material and workmanship in its intended use for a period of two (2) years from the manufacturing date. Under this warranty, verified defective units will be repaired, replaced, or reimbursed at the manufacturer's option. Reinstallation costs and associated expenses are excluded. The warranty does not cover damages caused by misuse, negligence, accidents, or unauthorized modifications.

Third Party Warranties: For products sold but not manufactured by the company, no warranty is expressed or implied. However, the manufacturer's warranty terms will be extended to the purchaser where permitted by relevant contracts and law.

Implied Warranties & Liability: These warranties are exclusive and in lieu of all other warranties, written or implied, including merchantability or fitness for a particular purpose. In no event shall total liability under this agreement exceed the purchase price of the product to which liability relates. The manufacturer is not liable for consequential, incidental, or special damages.

Frequently Asked Questions

What wattages and configurations are available for these LED track lights?

These COB LED track lights are available in 10W, 20W, 30W, and 35W configurations. They features original Citizen or Osram COB LEDs and offer highly adjustable lighting outputs suitable for various applications.

What are the input voltage and electrical requirements?

The standard operating voltage requirement is AC 200V - 240V with a frequency of 50/60Hz. It has a high power factor of ≥ 0.92, ensuring optimal electrical efficiency.

Which track adapter phases do these track lights support?

They are compatible with several track adapters, including 2-wire 1-phase, 3-wire 1-phase, 4-wire 1-phase, 4-wire 3-phase, and 6-wire 3-phase systems.

What are the beam angle and color temperature options?

We offer multiple beam angles (15°, 24°, 36°, and 60°) and color temperatures ranging from warm to neutral white (3000K, 3500K, and 4000K) to meet specific architectural or display requirements.

What is the expected lifetime and lumen efficiency?

These lights are rated at L90/50,000 hours of operating life, delivering a highly efficient lumen output exceeding 130lm/W (with up to 3500lm output at CRI 90+).

How long is the product warranty, and what does it cover?

The product comes with a limited 2-year manufacturer warranty from the manufacturing date, covering defects in materials and workmanship under normal intended usage.
