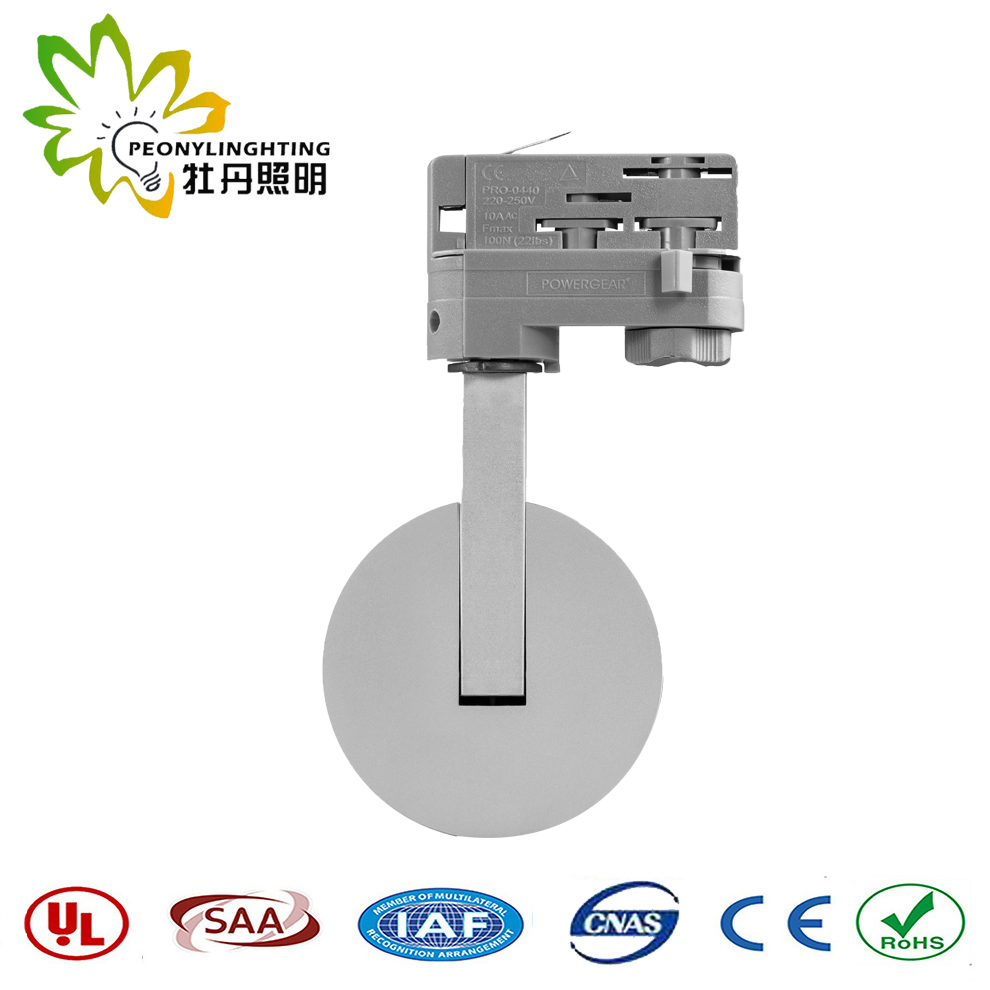

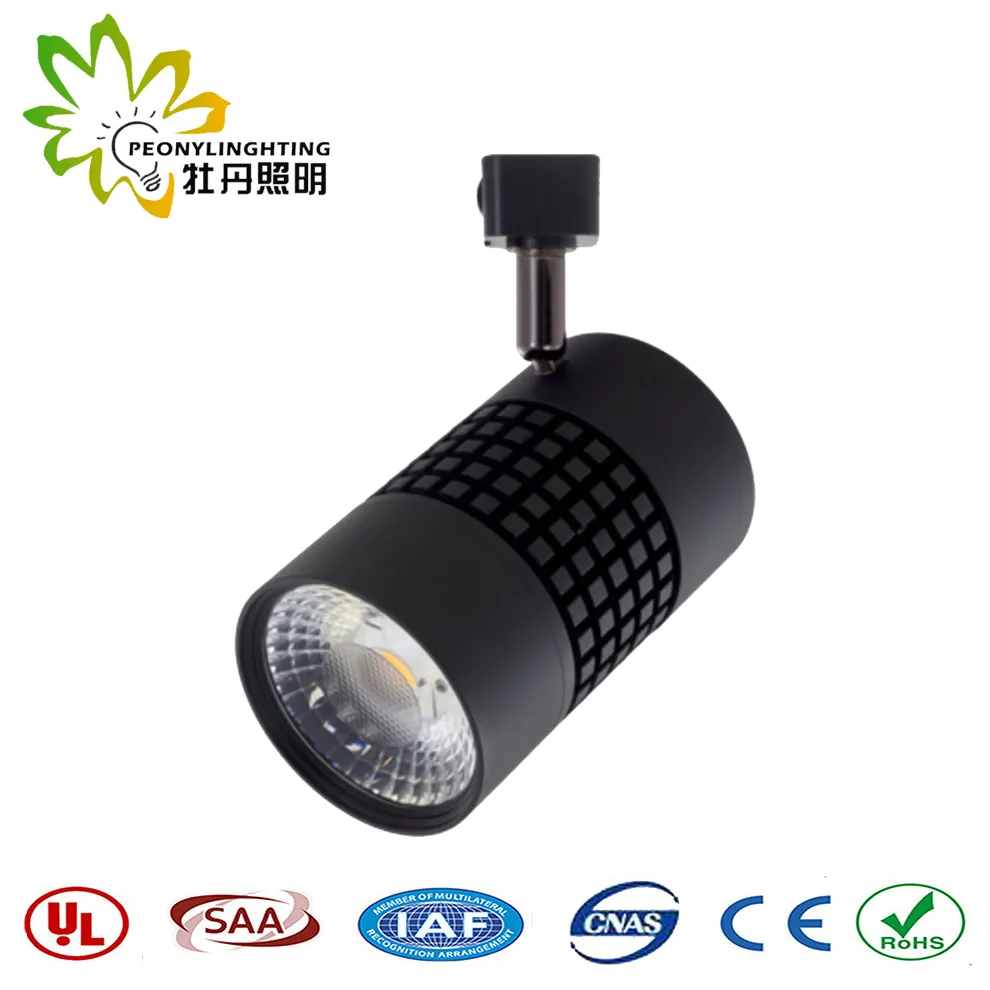

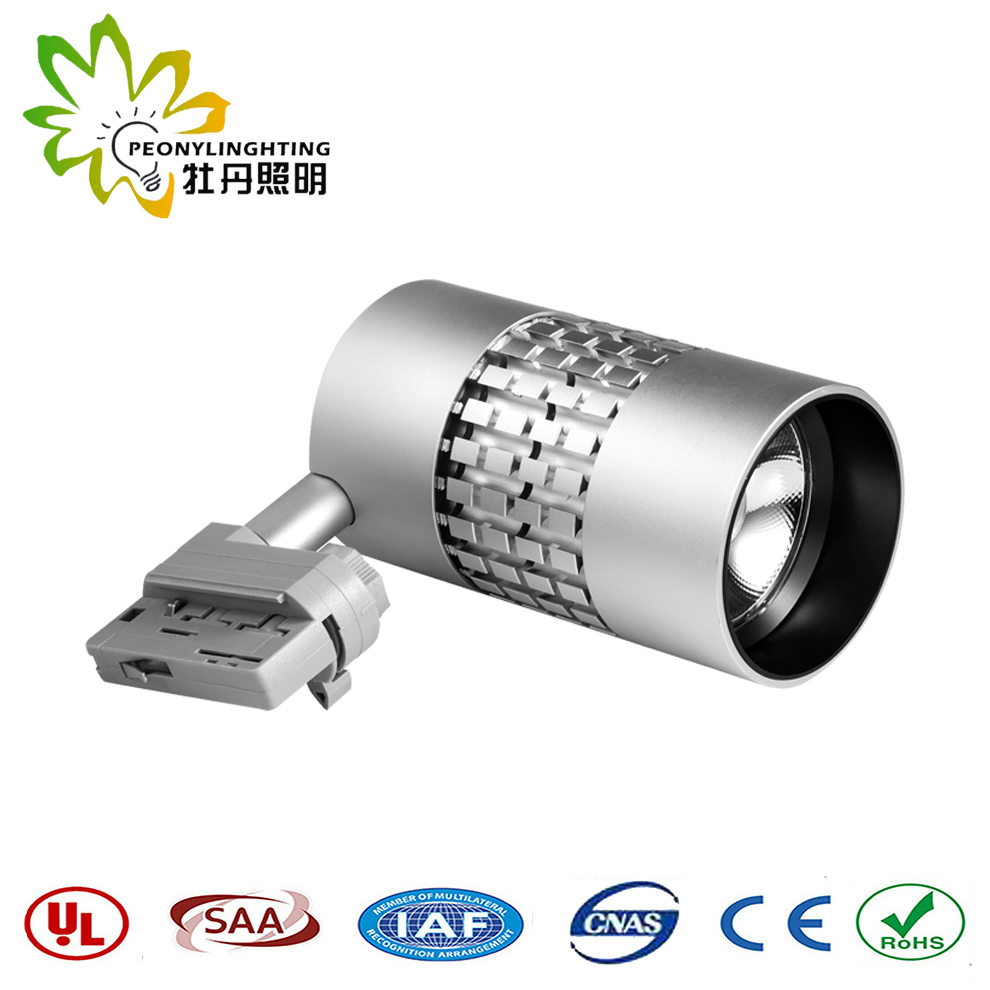

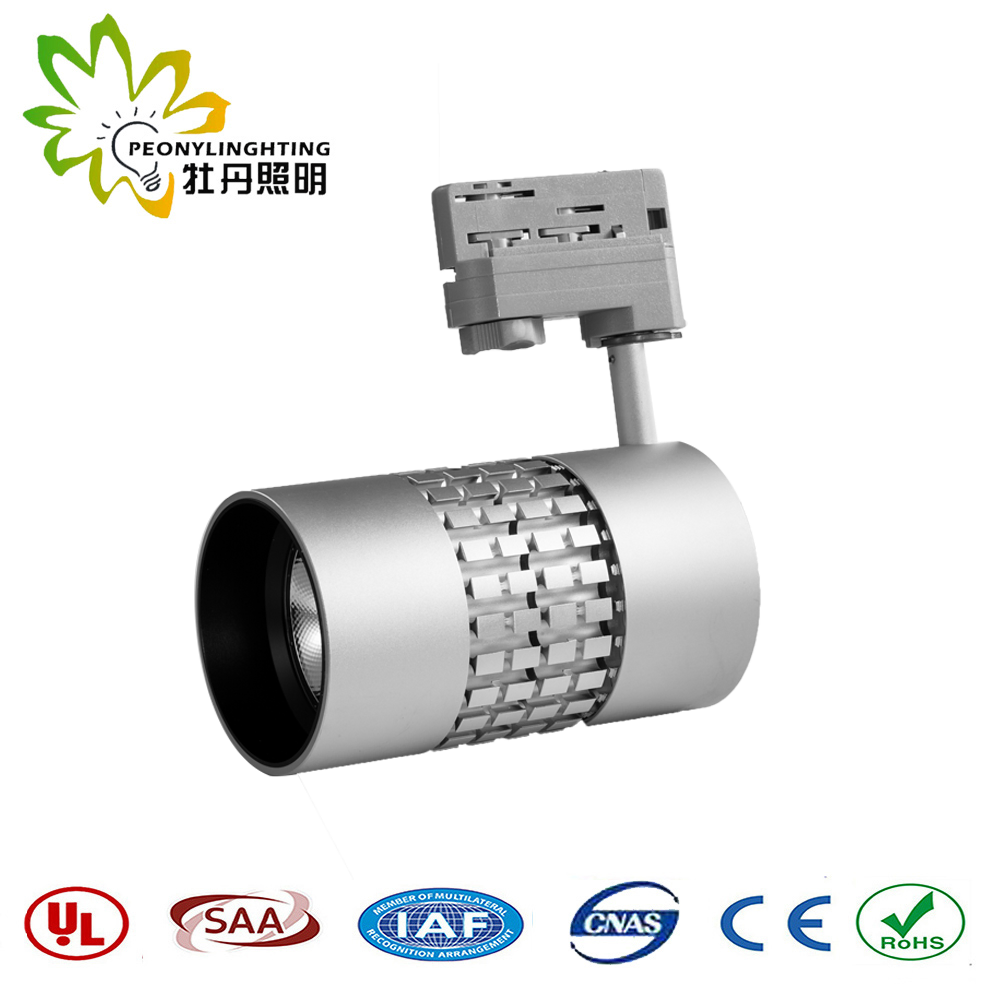

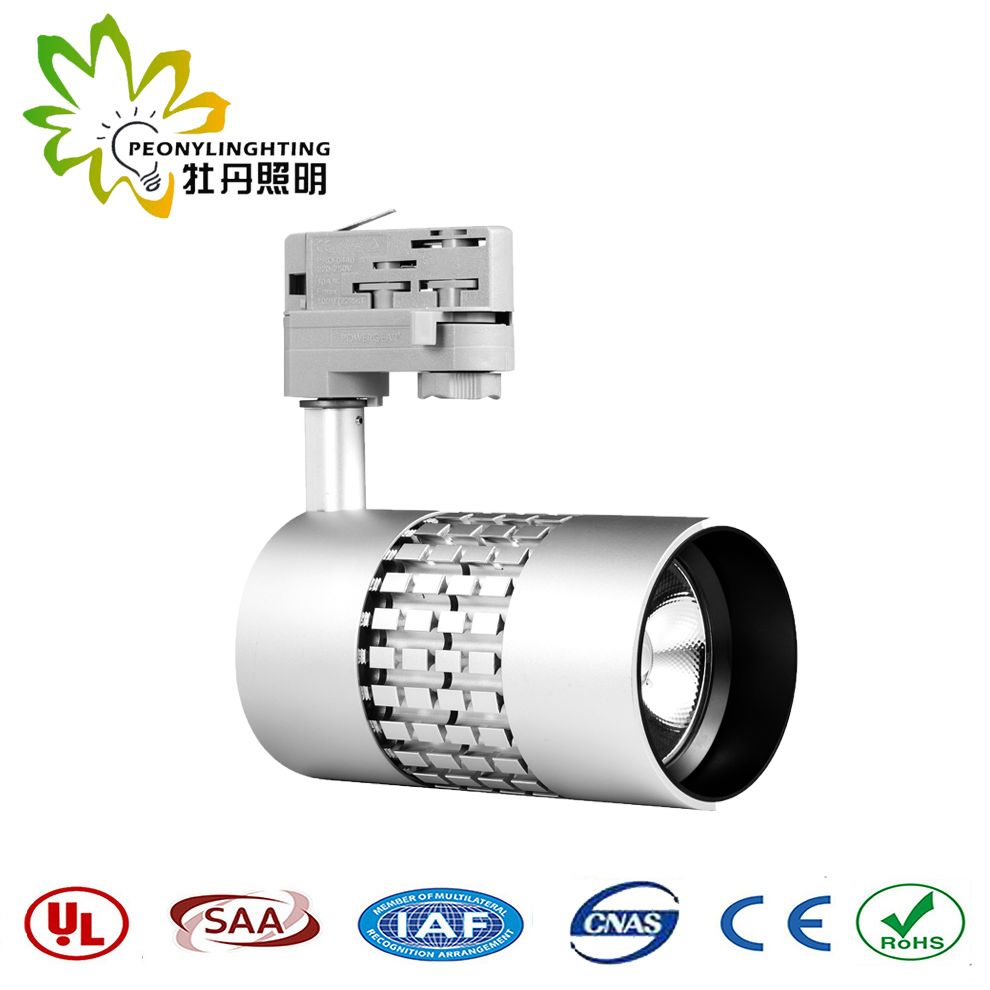

Original Citizen COB Anti-Glare 5W LED Track Lighting with 5 Years Warranty

Customization: Available
Color Temperature: 2700-6500K
Lamp Body Material: Aluminum

Product Description

Basic Info.
Model NO.
PL-TL-5W-D2
Power
≤5W
Emitting Color
White
Base Type
Adaptor
Wire
2wires,3wires,4wires
IP Rating
IP44
Certification
CE, EMC, FCC, LVD, RoHS, SAA
Input Voltage
220V
LED Chips Brand
CREE
Housing Color
White, Black, Grey
Transport Package
CTN: 230*410*370, 48PC/CTN, 17.48kg/CTN
Specification
0.36kg 50*95mm
Origin
China
Production Capacity
100000/Year
Product Description
Original Citizen COB Anti-glare 5w LED track lighting with 5 years warranty
Original Citizen COB Anti-Glare 5W LED Track Lighting with 5 Years Warranty

Original Citizen COB Anti-glare LED track light 25W35W, CREE CHIP LED TRACK LIGHT, EPISTAR CHIP LED TRACK SPOT LIGHT, LED SPOT LIGHT, LED DOWN LIGHT, LED CEILING LIGHT, HIGH QUALITY LED TRACK SPOT LIGHT.

4 WIRES LED TRACK LIGHT, 3 Phase/ 4 Phase LED track spot light, commercial light, 10w20w25w30w35w40w45w50w led track light, new design led track light, track light 35w led, new version High lumen 4 wires 3 circuit black aluminum case 40W 45W led track light, track light 50w led.

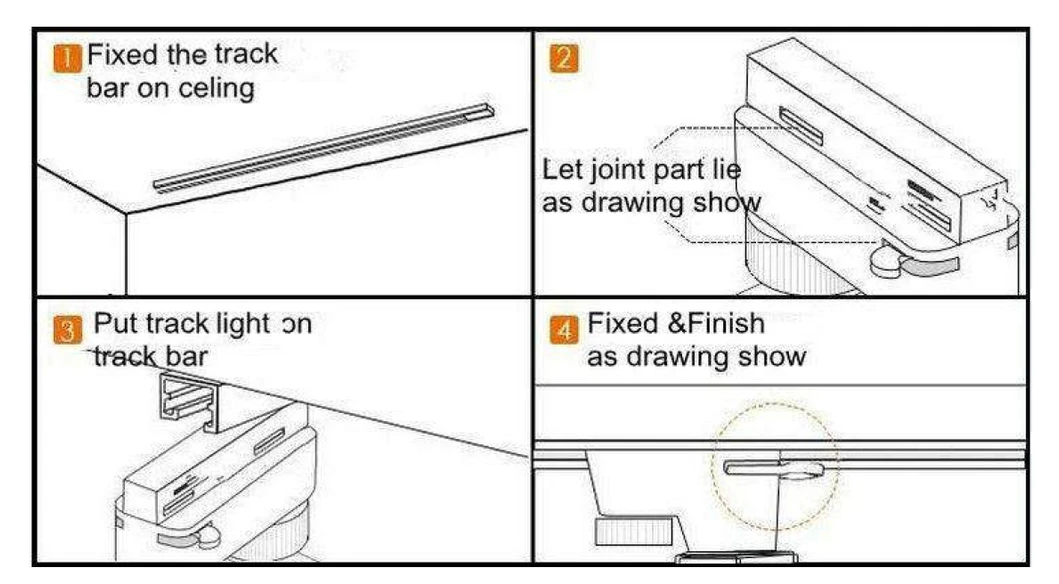

Track Lighting Multi-angle Options

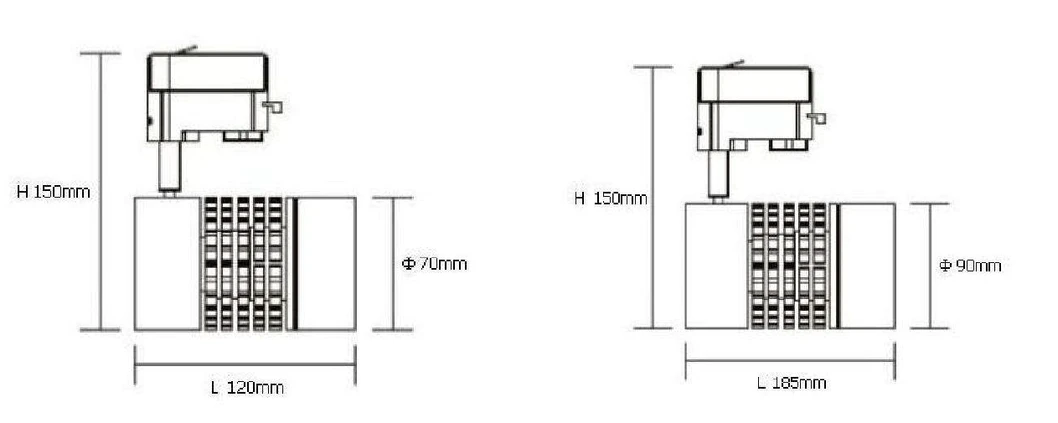

Track Lighting Color Range
Not only is track lighting great for commercial spaces to highlight products or focus on customers such as in hair salons and retail stores, but it's made a huge come back for home accent and task lighting. Here you will find the latest in finishes such as brushed nickel, black and russet bronze. Choose your lamp type. Do you need a wide flood such as the PAR 30 Gimbal ring projects, or do you want to add sparkle and pizzazz along with the more delicate look of MR16 type 120V GU10 LED lamps? We have it all for you. All kits include the appropriate LED lamps for the fixture. These are all 120VAC input. No transformers required. Shown below are favorites from our retail LED lighting store. We can also order different heads, track lengths and all sorts of accessories and connectors.
Typical Applications
  • Energy Saving Programs
  • Sustainable Energy
  • Spot lighting
  • Retail Stop Lighting
  • Commercial Lighting
  • General lighting
Environmental & Electrical
  • Ambient Temperature: -20°C to 40°C
  • Surface of Lamp: 60°C to 70°C
  • Humidity Range: 0 to 95% non-condensing
  • Voltage Requirement: 200V ~ 240V AC; 50/60HZ
  • Power Consumption: 25W±10%
  • Power Factor: ≥ 0.92
Specification Details
Model Size (mm) Wire Option LED Light Source Power Driver Parameters Color Temp Luminous Flux Beam Angle Phase IP Rating Packaging Details Warranty
PL-TL-5W-D2 ø50*95 2-wire
3-wire
4-wire
Version 5 Citizen COB LED 5W no flicker driver
AC100-240V
50/60Hz
PF>0.90
WW/NW/CW
2700/3000K/4000K/5000K
350-400lm 15°
25°
38°
3 Phase IP44 (white box: 55*100*120)
(Ctn size: 230*410*370)
(0.36KG/PC)
(48pc/ctn)
(17.48KG/ctn)
3 years
PL-TL-9W-D2 ø50*95 2-wire
3-wire
4-wire
Version 5 Citizen COB LED 9W no flicker driver
AC100-240V
50/60Hz
PF>0.90
WW/NW/CW
2700/3000K/4000K/5000K
720-810lm 15°
25°
38°
3 Phase IP44 3 years
PL-TL-15W-D2 Φ70*124*145 2-wire
3-wire
4-wire
Version 5 Citizen COB LED 15W no flicker driver
AC100-240V
50/60Hz
PF>0.90
WW/NW/CW
2700/3000K/4000K/5000K
900-1100lm 15°
25°
38°
3 Phase IP44 (white box: 182*92*167)
(Ctn size: 485*385*360)
(0.61KG/PC)
(20pc/ctn)
(13.34KG/ctn)
3 years
PL-TL-20W-D2 Φ90*160*178 2-wire
3-wire
4-wire
Version 5 Citizen COB LED 20W no flicker driver
AC100-240V
50/60Hz
PF>0.95
WW/NW/CW
2700/3000K/4000K/5000K
1500-1700lm 10°
24°
36°
3 Phase IP44 (white box: 245*235*122)
(Ctn size: 630*485*270)
(0.98KG/PC)
(10pc/ctn)
(13.51KG/ctn)
3 years
PL-TL-30W-D2 Φ90*160*178 2-wire
3-wire
4-wire
Version 5 Citizen COB LED 30W no flicker driver
AC100-240V
50/60Hz
PF>0.95
WW/NW/CW
2700/3000K/4000K/5000K
2200-2400lm 10°
24°
36°
3 Phase IP44 3 years
PL-TL-40W-D2 Φ110*195*189 2-wire
3-wire
4-wire
Version 5 Citizen COB LED 40W Philips no flicker driver
AC200-240V
50/60Hz
PF>0.95
WW/NW/CW
2700/3000K/4000K/5000K
2800-3000lm 10°
24°
36°
3 Phase IP44 (white box: 265*255*147)
(Ctn size: 531*485*270)
(1.5KG/PC)
(6pc/ctn)
(13.11KG/ctn)
3 years
PL-TL-45W-D2 Φ110*195*189 2-wire
3-wire
4-wire
Version 5 Citizen COB LED 45W (Max 50W) Philips no flicker driver
AC200-240V
50/60Hz
PF>0.95
WW/NW/CW
2700/3000K/4000K/5000K
3200-3500lm 10°
24°
36°
3 Phase IP44 3 years
Workshop & Packaging
Professional Lighting Pack Details

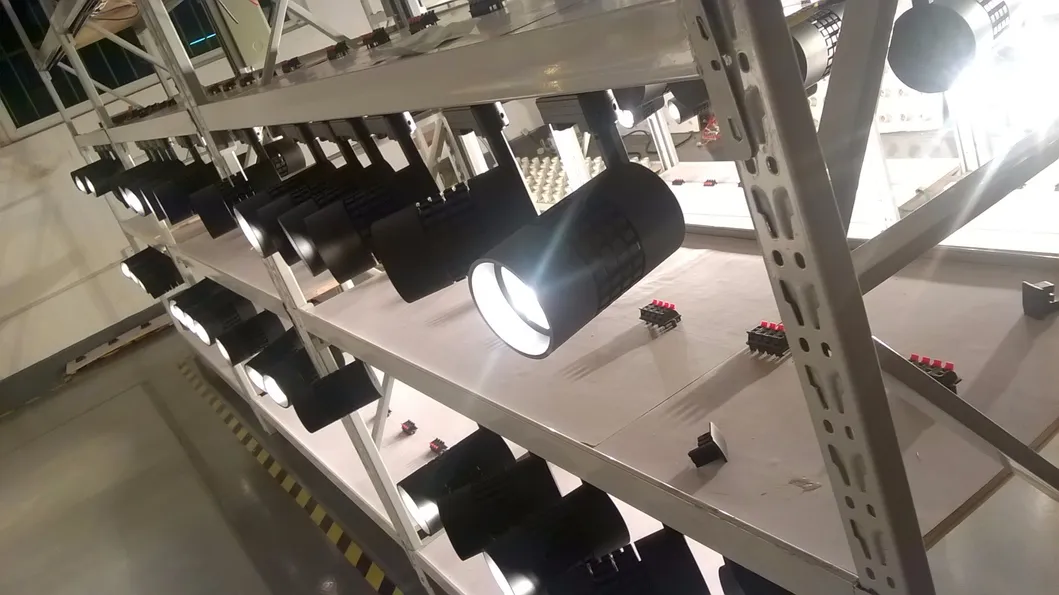

Lighting Manufacturing Process
Our Service
  • Your inquiries related to our products and price will be replied in 24hrs;
  • Well-trained and experience staffs to answer your inquiries in fluent English;
  • OEM & ODM are welcome, customized design is available;
  • Protection of your sales area, idea of design and all your private informations.
Our Quality Control
  • Raw material 100% inspected before production;
  • Full check after every individual process finished;
  • 500 times on and off testing after production finished;
  • Full check before shipping.
Warranty & Terms

LIMITED WARRANTY: Manufacturer warrants to the Purchaser that each Product manufactured and sold by it will be free from defects in material and workmanship in its intended use (normal wear and tear excepted) for the period of two year from manufactured date. Manufacturer's warranty flows only to Purchaser. If any Product covered by this warranty is returned by Purchaser in accordance with Manufacturer's Products Return Policy, including without limitation its return authorization provisions, within the applicable warranty period set forth above, and upon examination Manufacturer determines to its satisfaction that such Product was defective in material or workmanship at the time of delivery to the Purchaser, Manufacturer will, at its option, repair or replace the Product or the defective part thereof, or reimburse Purchaser for the purchase price. For purposes of clarity, "repair or replace the Product or the defective part thereof" does not include any reinstallation costs or expenses. If Manufacturer chooses to replace the Product and is not able to do so because it has been discontinued or is not available, Manufacturer may replace it with a comparable product. The foregoing notwithstanding, Manufacturer will not be responsible for damage to any Product resulting from misuse, negligence, acts of God or accident or resulting from repairs or alterations made by any person or firm not duly authorized by Manufacturer in writing. Purchaser shall convey with each Product distributed to end users the MANUFACTURER'S LIMITED WARRANTY included by Manufacturer with such Product, and, if Manufacturer determines that the appropriate remedy for a defective product is refund of Purchaser's purchase price, Purchaser shall refund to the end user (or arrange for the refund to the end user of) the full purchase price paid by the end user for such defective Product.

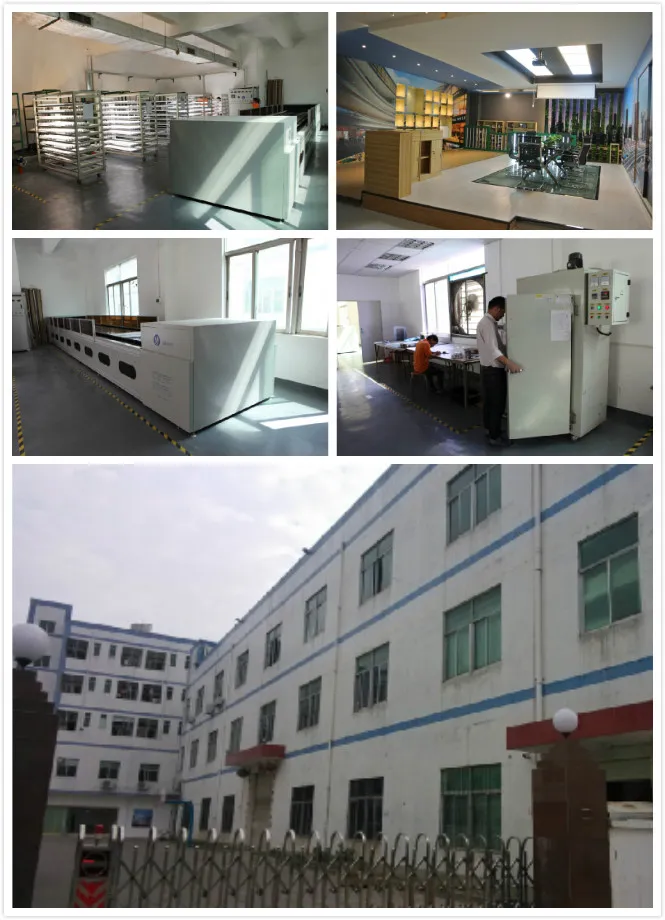

Certified LED Quality Assurance

THIRD PARTY WARRANTIES: With respect to products sold to the Purchaser by Manufacturer but not manufactured by Manufacturer, MANUFACTURER MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, but will make available to the Purchaser, to the extent permitted by law and relevant contracts, the warranties of the manufacturer of the relevant product upon the Purchaser's timely written request.

NON-IMPLIED WARRANTIES: THE WARRANTIES GIVEN IN THESE TERMS ARE THE ONLY WARRANTIES GIVEN BY THE MANUFACTURER WITH RESPECT TO THE PRODUCTS AND ARE GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF NON INFRINGEMENT AND OF FITNESS FOR A PARTICULAR PURPOSE. PURCHASER'S EXCLUSIVE REMEDIES, AND MANUFACTURER'S SOLE LIABILITY, FOR ANY NONCONFORMITY OR DEFECT IN ANY PRODUCT SHALL BE THOSE EXPRESSED HEREIN.

LIMITATION OF LIABILITY: An essential purpose of the limited exclusive liabilities and remedies in this Agreement is allocation of risks between Manufacturer and Purchaser, which allocation of risks is reflected in the purchase price for the Products. UNDER NO CIRCUMSTANCES SHALL MANUFACTURER'S LIABILITY ARISING OUT OF OR IN CONNECTION WITH THIS AGREEMENT OR MANUFACTURER'S PERFORMANCE OR ASSERTED FAILURE TO PERFORM HEREUNDER, IN CONTRACT, TORT (INCLUDING NEGLIGENCE) OR OTHERWISE, EXCEED THE PURCHASE PRICE OF THE PRODUCT TO WHICH SUCH LIABILITY RELATES. IN NO EVENT SHALL MANUFACTURER BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, DAMAGES RESULTING FROM LOSS OF USE, PROFITS, BUSINESS OR GOODWILL, WHETHER OR NOT MANUFACTURER HAS BEEN ADVISED OF THE POSSIBILITY THEREOF.

Frequently Asked Questions (FAQ)
What brand of LED chips and driver are used in these track lights?
These track lights utilize premium Citizen COB LEDs and CREE LED chips. For higher power models (40W and 45W), high-performance flicker-free drivers from Philips are used to ensure stable lighting quality and durability.
What are the available wire configurations for these lights?
The LED track lights are compatible with 2-wire, 3-wire, and 4-wire configurations, making them versatile for integration into various commercial and residential track systems.
What is the standard warranty period for these LED track lights?
The track lights offer a reliable quality warranty. The spec table lists a 3-year warranty for these models, while premium configurations with Citizen COB light sources can support up to a 5-year warranty plan.
Are these track lights suitable for commercial installations?
Yes, these fixtures are highly optimized for commercial applications such as retail stores, hair salons, spotlighting, and general commercial space lighting where high color rendering and anti-glare functions are critical.
What voltage and input specifications do they require?
Depending on the model, they operate on AC 100-240V or AC 200-240V at 50/60Hz. They are built for direct AC input, meaning no additional external transformers are required.
How does the factory conduct quality control on these products?
Quality control consists of a 4-step check: 100% inspection of raw materials before production, thorough checks after each individual process step, 500 times of on/off cycle testing, and a final comprehensive check before shipping.
