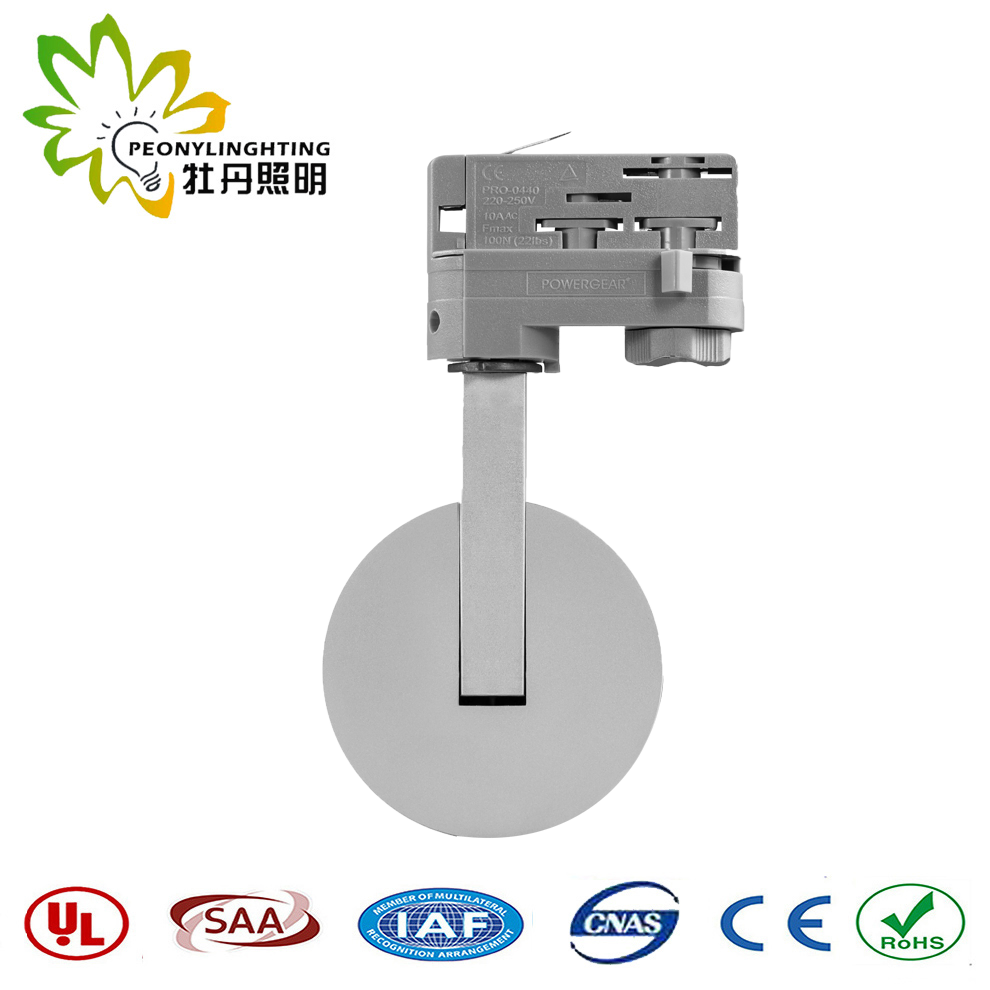

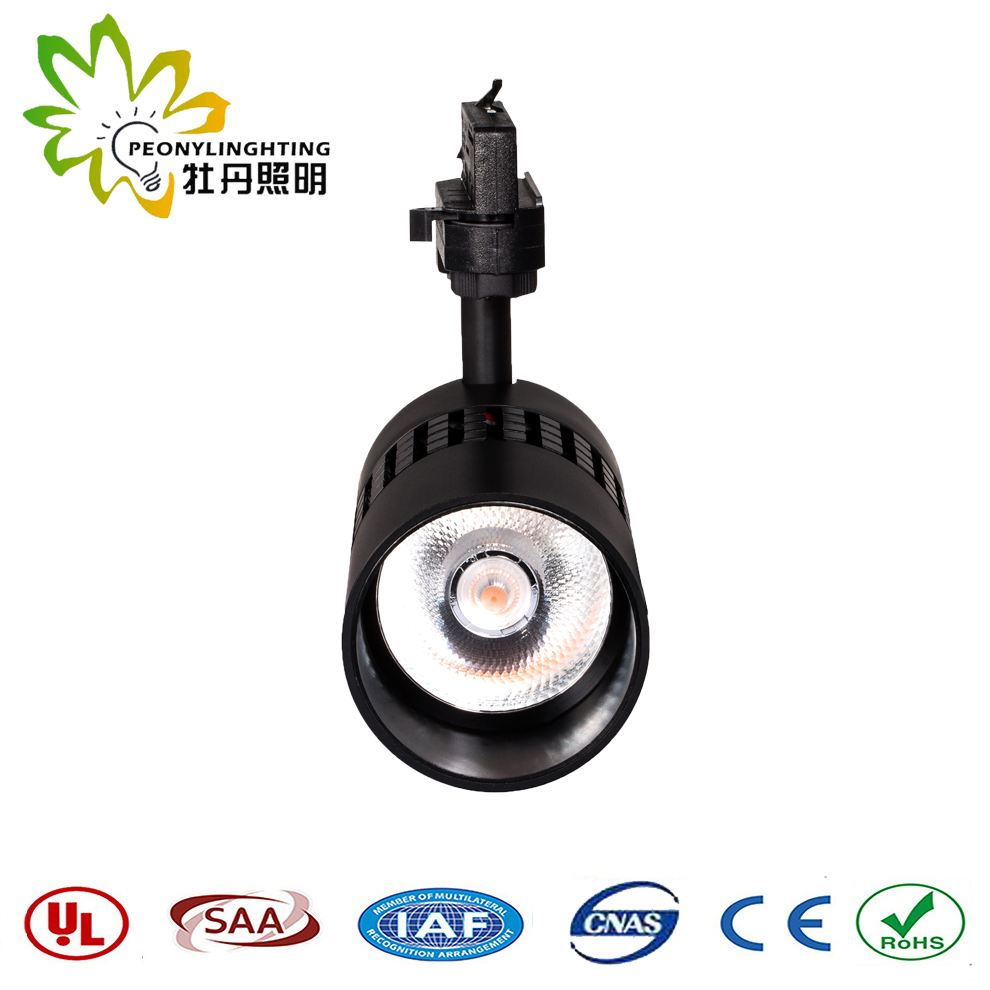

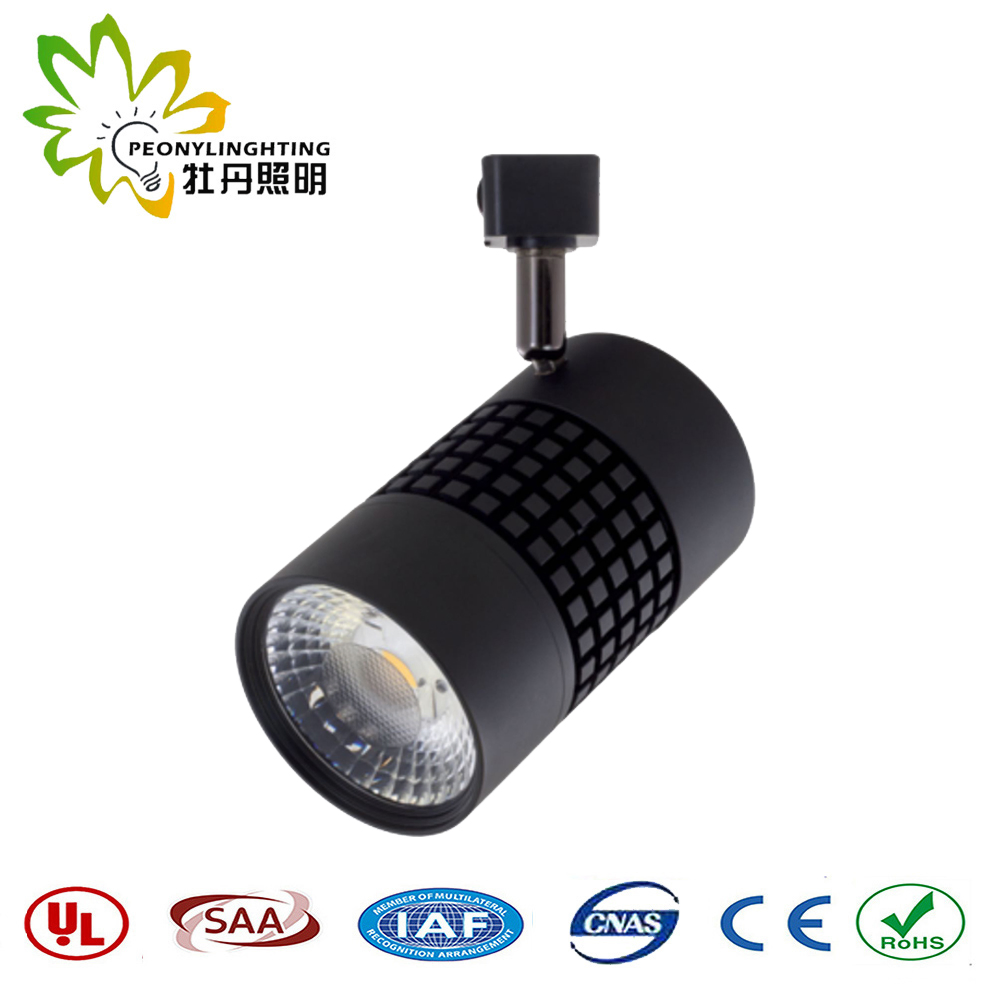

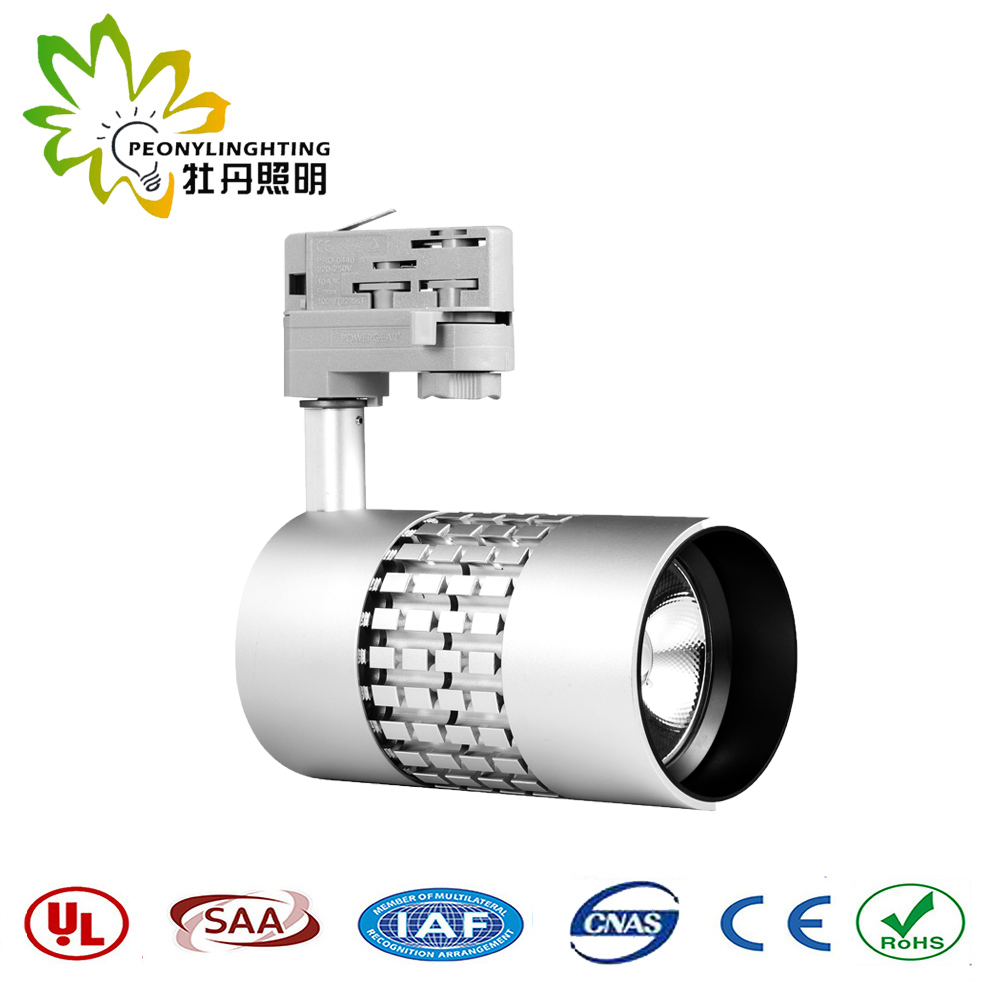

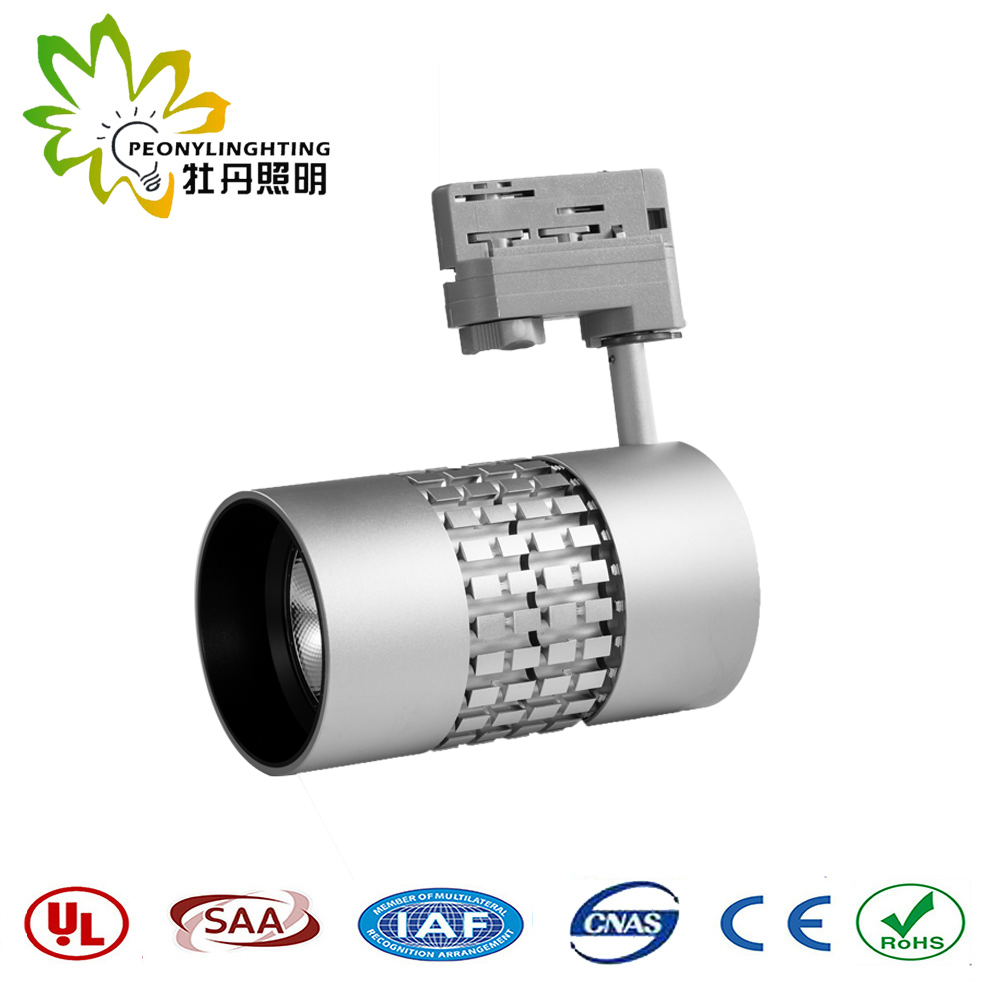

Original Citizen COB Anti-Glare 20W LED Track Lighting with 5 Years Warranty

Customization: Available
Color Temperature: 2700-6500K
Lamp Body Material: Aluminum

Product Description

Basic Specifications
Model NO.
PL-TL-20W-D2
Power
16-20W
Emitting Color
White
Base Type
Adaptor
Wire
2wires,3wires,4wires
IP Rating
IP44
Certification
CE, EMC, FCC, LVD, RoHS, SAA
Input Voltage
220V
LED Chips Brand
CREE
Housing Color
White, Black, Grey
Transport Package
CTN: 230*410*370, 48PC/CTN, 17.48kg/CTN
Specification
0.98KG/PC 90*160*178mm
Origin
China
Production Capacity
100000/Year
Product Description

Original Citizen COB Anti-glare 20w LED track lighting with 5 years warranty

Original Citizen COB Anti-Glare 20W LED Track Lighting with 5 Years Warranty

Original Citizen COB Anti-glare LED track light 25W35W, CREE CHIP LED TRACK LIGHT, EPISTAR CHIP LED TRACK SPOT LIGHT, LED SPOT LIGHT, LED DOWN LIGHT, LED CEILING LIGHT, HIGH QUALITY LED TRACK SPOT LIGHT.

4 WIRES LED TRACK LIGHT, 3 Phase/ 4 Phase LED track spot light, commercial light, 10w20w25w30w35w40w45w50w led track light, new design led track light, track light 35w led, 2016 new version High lumen 4 wires 3 circuit black aluminum case 40W 45W led track light, track light 50w led.

Not only is track lighting great for commercial spaces to highlight products or focus on customers such as in hair salons and retail stores, but it's made a huge come back for home accent and task lighting. Here you will find the latest in finishes such as brushed nickel, black and russet bronze. Choose your lamp type. Do you need a wide flood such as the PAR 30 Gimbal ring projects, or do you want to add sparkle and pizzazz along with the more delicate look of MR16 type 120V GU10 LED lamps? We have it all for you. All kits include the appropriate LED lamps for the fixture. These are all 120VAC input. No transformers required. Shown below are favorites from our retail LED lighting store. We can also order different heads, track lengths and all sorts of accessories and connectors.

Typical Applications
  • Energy Saving Programs
  • Sustainable Energy
  • Spot lighting
  • Retail Stop Lighting
  • Commercial Lighting
  • General lighting
ENVIRONMENTAL SPECIFICATIONS

TEMPERATURE RANGE Ambient: -20°C to 40°C; Surface of Lamp: 60°C to 70°C
HUMIDITY RANGE 0 to 95% non-condensing humidity

ELECTRICAL SPECIFICATIONS

VOLTAGE REQUIREMENT 200V ~ 240V AC; 50/60HZ
POWER CONSUMPTION 25W±10%
POWER FACTOR ≥ 0.92

Specification Table

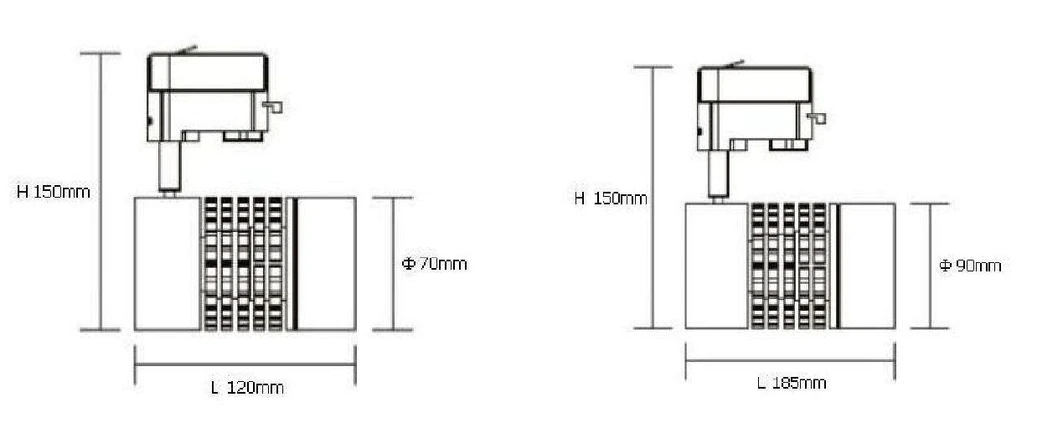

Model Dimension (mm) Wire Type LED Source Power Driver Spec CCT (K) Lumen (lm) Beam Angle Phase IP Package Info Warranty
PL-TL-5W-D2 ø50*95 2-wire / 3-wire / 4-wire Version5 Citizen COB LED 5W no flicker driver AC100-240V 50/60Hz PF>0.90 WW/NW/CW 2700/3000K/4000K/5000K 350-400lm 15° / 25° / 38° 3 Phase IP44 (white box: 55*100*120)
(Ctn size: 230*410*370)
(0.36KG/PC)
(48pc/ctn)
(17.48KG/ctn)
3 years
PL-TL-9W-D2 ø50*95 2-wire / 3-wire / 4-wire Version5 Citizen COB LED 9W no flicker driver AC100-240V 50/60Hz PF>0.90 WW/NW/CW 2700/3000K/4000K/5000K 720-810lm 15° / 25° / 38° 3 Phase IP44 3 years
PL-TL-15W-D2 Φ70*124*145 2-wire / 3-wire / 4-wire Version5 Citizen COB LED 15W no flicker driver AC100-240V 50/60Hz PF>0.90 WW/NW/CW 2700/3000K/4000K/5000K 900-1100lm 15° / 25° / 38° 3 Phase IP44 (white box: 182*92*167)
(Ctn size: 485*385*360)
(0.61KG/PC)
(20pc/ctn)
(13.34KG/ctn)
3 years
PL-TL-20W-D2 Φ90*160*178 2-wire / 3-wire / 4-wire Version5 Citizen COB LED 20W no flicker driver AC100-240V 50/60Hz PF>0.95 WW/NW/CW 2700/3000K/4000K/5000K 1500-1700lm 10° / 24° / 36° 3 Phase IP44 (white box: 245*235*122)
(Ctn size: 630*485*270)
(0.98KG/PC)
(10pc/ctn)
(13.51KG/ctn)
3 years
PL-TL-30W-D2 Φ90*160*178 2-wire / 3-wire / 4-wire Version5 Citizen COB LED 30W no flicker driver AC100-240V 50/60Hz PF>0.95 WW/NW/CW 2700/3000K/4000K/5000K 2200-2400lm 10° / 24° / 36° 3 Phase IP44 3 years
PL-TL-40W-D2 Φ110*195*189 2-wire / 3-wire / 4-wire Version5 Citizen COB LED 40W Philips no flicker driver AC200-240V 50/60Hz PF>0.95 WW/NW/CW 2700/3000K/4000K/5000K 2800-3000lm 10° / 24° / 36° 3 Phase IP44 (white box: 265*255*147)
(Ctn size: 531*485*270)
(1.5KG/PC)
(6pc/ctn)
(13.11KG/ctn)
3 years
PL-TL-45W-D2 Φ110*195*189 2-wire / 3-wire / 4-wire Version5 Citizen COB LED 45W (Max 50W) Philips no flicker driver AC200-240V 50/60Hz PF>0.95 WW/NW/CW 2700/3000K/4000K/5000K 3200-3500lm 10° / 24° / 36° 3 Phase IP44 3 years

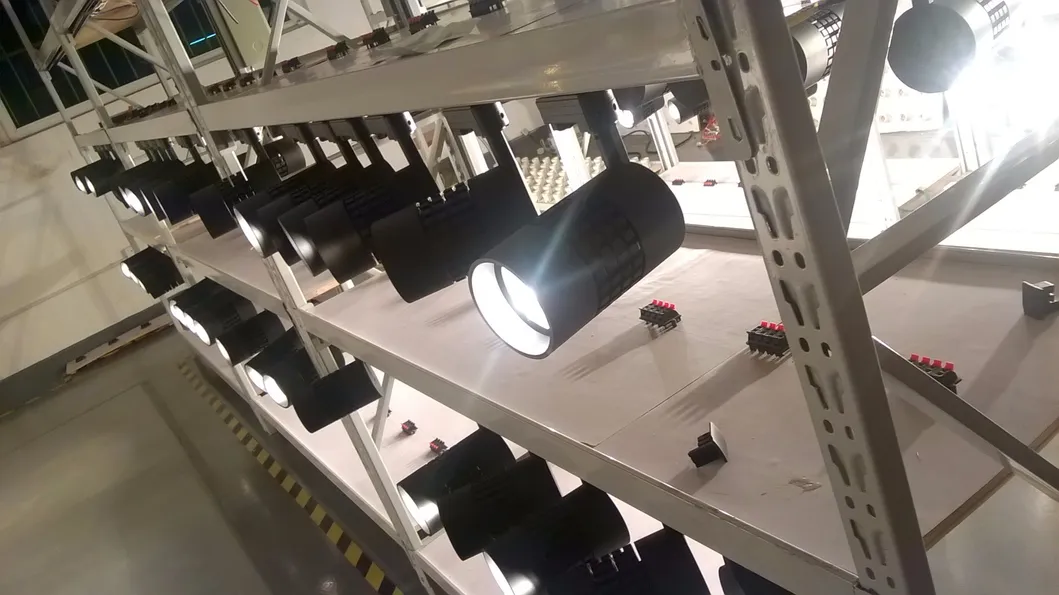

Our Workshop & Packaging
Our Professional Services
  • Your inquiries related to our products and price will be replied in 24 hours.
  • Well-trained and experienced staff to answer all your inquiries in fluent English.
  • OEM & ODM are welcome; customized design configurations are available.
  • Full protection of your sales area, design concepts, and all private information.
Our Quality Control Process
  • Raw material 100% inspected before starting production.
  • Comprehensive quality checks after every individual process is finished.
  • Rigorous 500 times on-and-off testing phase post-production.
  • Final extensive performance check before shipping.
Limited Warranty Statement

Manufacturer warrants to the Purchaser that each Product manufactured and sold by it will be free from defects in material and workmanship in its intended use (normal wear and tear excepted) for the period of two years from manufactured date. Manufacturer's warranty flows only to Purchaser. If any Product covered by this warranty is returned by Purchaser in accordance with Manufacturer's Products Return Policy, including without limitation its return authorization provisions, within the applicable warranty period set forth above, and upon examination Manufacturer determines to its satisfaction that such Product was defective in material or workmanship at the time of delivery to the Purchaser, Manufacturer will, at its option, repair or replace the Product or the defective part thereof, or reimburse Purchaser for the purchase price. For purposes of clarity, "repair or replace the Product or the defective part thereof" does not include any reinstallation costs or expenses. If Manufacturer chooses to replace the Product and is not able to do so because it has been discontinued or is not available, Manufacturer may replace it with a comparable product. The foregoing notwithstanding, Manufacturer will not be responsible for damage to any Product resulting from misuse, negligence, acts of God or accident or resulting from repairs or alterations made by any person or firm not duly authorized by Manufacturer in writing. Purchaser shall convey with each Product distributed to end users the MANUFACTURER'S LIMITED WARRANTY included by Manufacturer with such Product, and, if Manufacturer determines that the appropriate remedy for a defective product is refund of Purchaser's purchase price, Purchaser shall refund to the end user (or arrange for the refund to the end user of) the full purchase price paid by the end user for such defective Product.

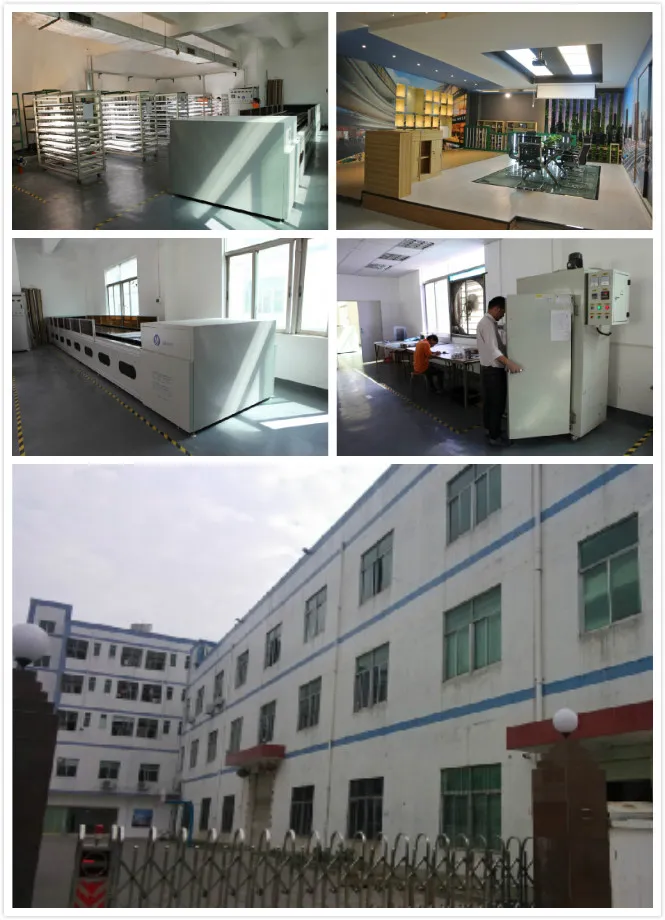

Certification and Quality Standards Overview
Third-Party & Non-Implied Warranty Guidelines

THIRD PARTY WARRANTIES: With respect to products sold to the Purchaser by Manufacturer but not manufactured by Manufacturer, MANUFACTURER MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, but will make available to the Purchaser, to the extent permitted by law and relevant contracts, the warranties of the manufacturer of the relevant product upon the Purchaser's timely written request.

NON-IMPLIED WARRANTIES: THE WARRANTIES GIVEN IN THESE TERMS ARE THE ONLY WARRANTIES GIVEN BY THE MANUFACTURER WITH RESPECT TO THE PRODUCTS AND ARE GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF NON INFRINGEMENT AND OF FITNESS FOR A PARTICULAR PURPOSE. PURCHASER'S EXCLUSIVE REMEDIES, AND MANUFACTURER'S SOLE LIABILITY, FOR ANY NONCONFORMITY OR DEFECT IN ANY PRODUCT SHALL BE THOSE EXPRESSED HEREIN.

LIMITATION OF LIABILITY: An essential purpose of the limited exclusive liabilities and remedies in this Agreement is allocation of risks between Manufacturer and Purchaser, which allocation of risks is reflected in the purchase price for the Products. UNDER NO CIRCUMSTANCES SHALL MANUFACTURER'S LIABILITY ARISING OUT OF OR IN CONNECTION WITH THIS AGREEMENT OR MANUFACTURER'S PERFORMANCE OR ASSERTED FAILURE TO PERFORM HEREUNDER, IN CONTRACT, TORT (INCLUDING NEGLIGENCE) OR OTHERWISE, EXCEED THE PURCHASE PRICE OF THE PRODUCT TO WHICH SUCH LIABILITY RELATES. IN NO EVENT SHALL MANUFACTURER BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, DAMAGES RESULTING FROM LOSS OF USE, PROFITS, BUSINESS OR GOODWILL, WHETHER OR NOT MANUFACTURER HAS BEEN ADVISED OF THE POSSIBILITY THEREOF.

Frequently Asked Questions
Q What are the key benefits of Citizen COB LED chips in these track lights?
Citizen COB LEDs deliver outstanding color rendering, stable lumen output, and high energy efficiency. Combined with our anti-glare optical design, they ensure comfortable and visual-friendly illumination suitable for commercial and premium residential environments.
Q Which track systems are compatible with these LED track lights?

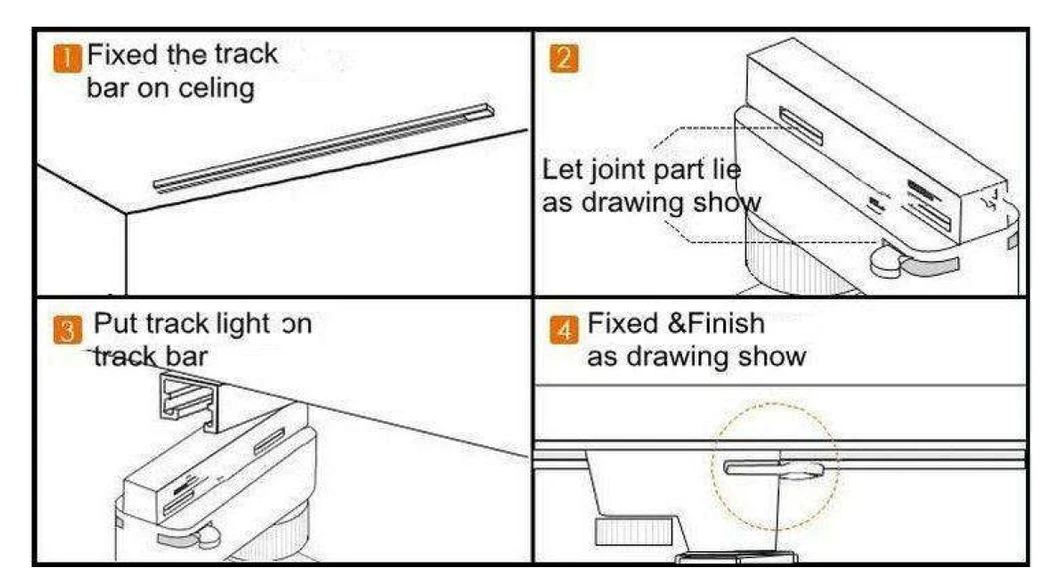

The light fixtures support multi-wire configurations, including 2-wire, 3-wire, and 4-wire (3-phase) track systems, giving you maximum flexibility for installation and circuit control configurations.
Q Do these track lights require external drivers or transformers?
No external transformer is needed. The lights are equipped with integrated, high-quality flicker-free drivers that run directly on standard AC input voltage (either AC100-240V or AC200-240V, depending on the chosen model).
Q What certifications do these track lights hold?
Our LED track lights have undergone strict testing and have successfully received CE, EMC, FCC, LVD, RoHS, and SAA certifications, ensuring safe operation and compliance with global import standards.
Q What is the IP rating, and can these lights be used outdoors?
These track lights carry an IP44 rating, providing protection against solid objects larger than 1.0mm and splashing water. They are designed for indoor dry or damp locations, such as retail shops, galleries, and residential living rooms.
Q What housing colors and beam angles are available?
We offer White, Black, and Grey finishes to seamlessly integrate with your ceiling design. Depending on the model, beam angles are available in spot and medium-flood distributions (including 10°, 15°, 24°, 25°, 36°, and 38° options).
