Pina Light
1 / 5
| Power | 15W, 20W, 30W, 35W |
|---|---|
| Input Voltage | AC110V, AC220V, DC24V, DC48V |
| Lighting Efficiency | 90lm/W |

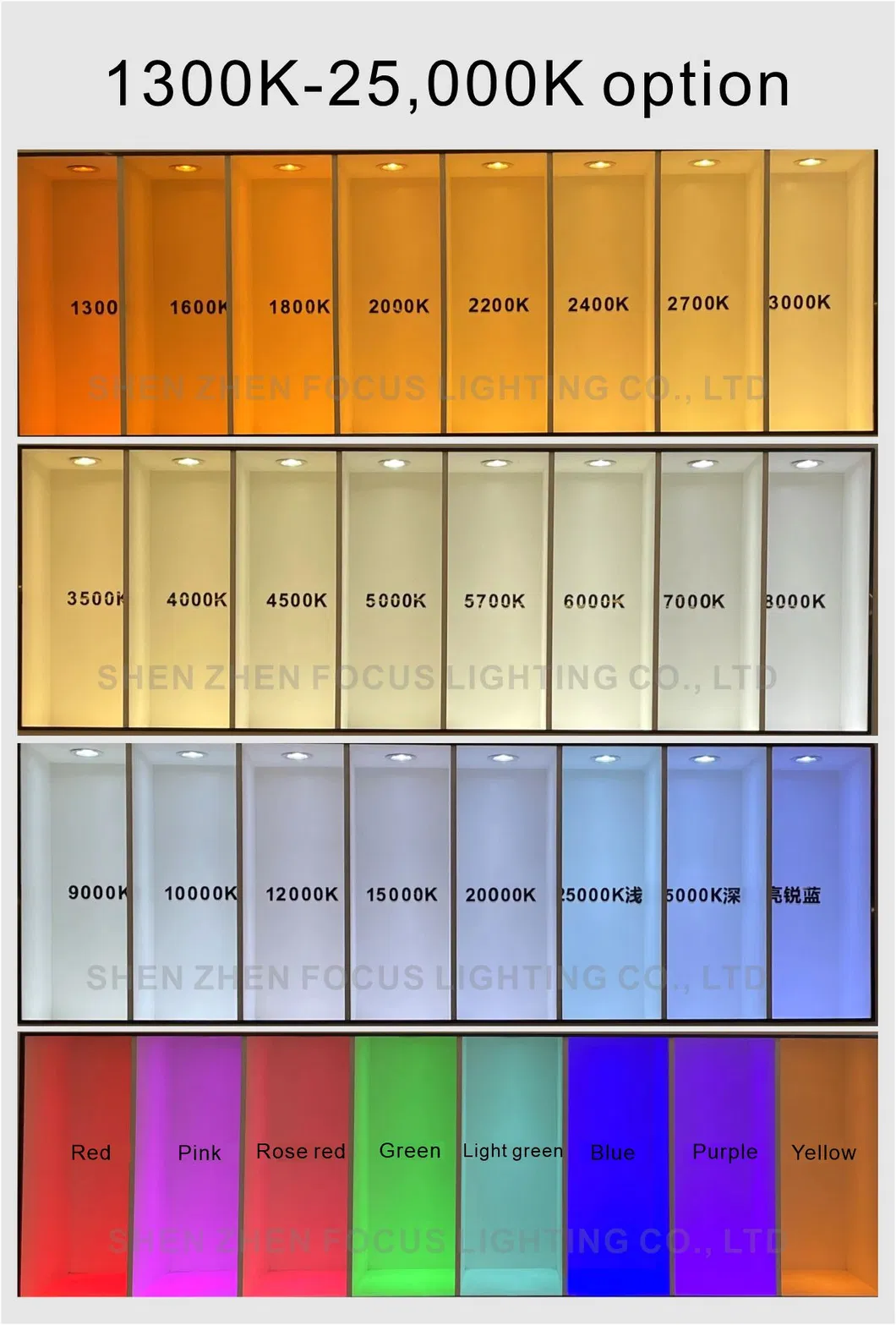

| CCT | 3000K/4000K/5000K/6000K Optional |
| CRI (Ra>) | Ra90 |
| Working Temperature | -25ºC to 45ºC |
| Working Lifetime | 50,000 Hours |
| IP Rating | IP20 (IP65 customized) |
| Beam Angle | 15°/24°/38°/45°/60° |
| Function | ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming |
| Housing Color | White, Black |
| Warranty | 5 Years |

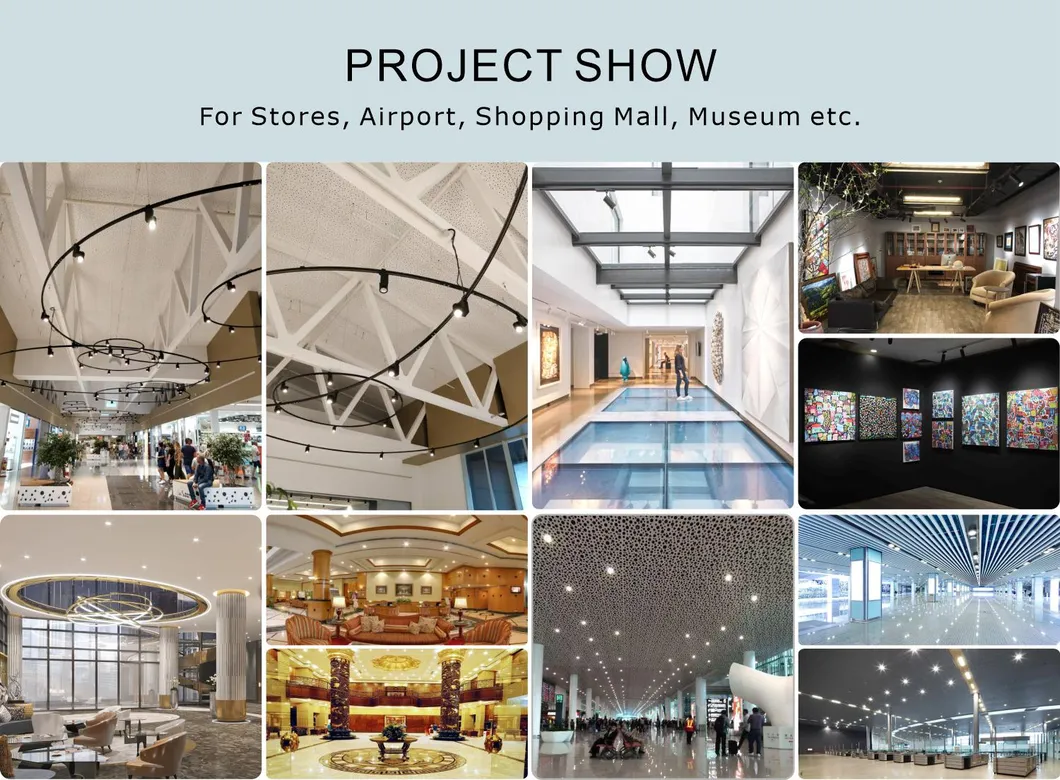

| Application | Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building |
| Power | Dimension | Cuthole | Beam Angle |
| 15W(A) | Ф90mm | φ75mm | 15°/24°/38°/45°/60° |
| 20W(A) | Ф110mm | φ95mm | 24°/38°/45°/60° |
| 30W(A) | Ф110mm | φ95mm | 15°/24°/38°/45°/60° |
| 35W(A) | Ф130mm | φ105mm | 15°/24°/38°/45°/60° |
| 15W(B) | Ф90mm | φ75mm | 15°/24°/38°/45°/60° |
| 20W(B) | Ф110mm | φ95mm | 15°/24°/38°/45°/60° |
| 30W(B) | Ф110mm | φ95mm | 15°/24°/38°/45°/60° |
| 35W(B) | Ф130mm | φ105mm | 15°/24°/38°/45°/60° |
Specializing in LED lighting since 2010, we have an experienced and professional R&D team supported by advanced testing instruments. Our comprehensive quality control system covers every stage from production to final delivery.
We provide high-quality LED track lights, downlights, and commercial lighting solutions. With extensive experience in OEM/ODM, we design custom drivers to meet specific functional requirements for global markets.
